SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-46
Published 11-20-19, Control # 234-19

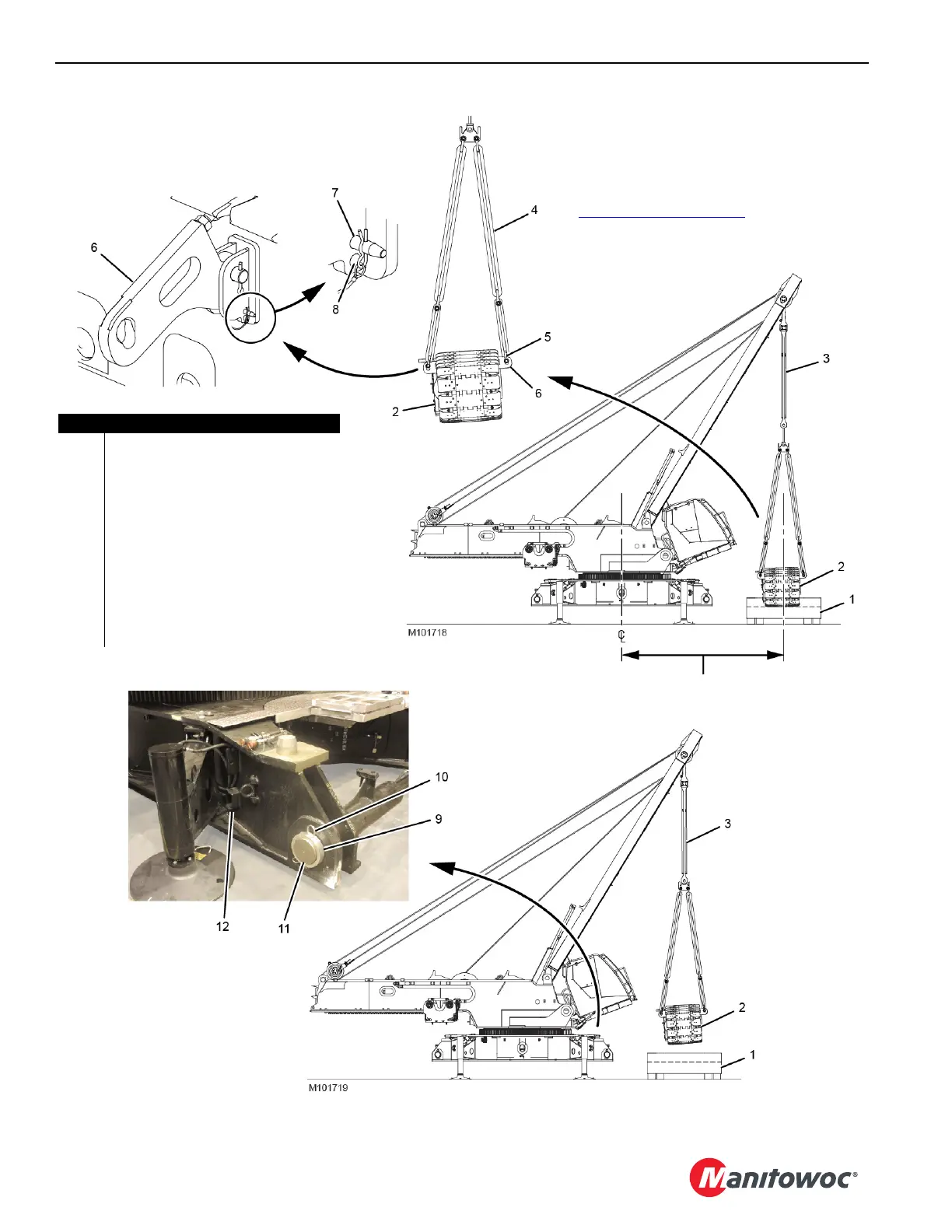

Figure 4-34
Item Description
1 Trailer (single-drop deck)
2Crawler
3 Self-Erect Cylinder
4 Lifting Slings (3 legs)
5 Shackle (3): 20,5 t (23 USt)
6 Lifting Link (3)
7 Hitch Pin with Hair Pin Cotter (1)
8Bottom Hole
9Collar
10 Hitch Pin with Hair-Pin Cotter (2)
11 Crawler Pin (2)
12 Storage Lug (2)
View C
View B
View E
View D
5,7 m (19 ft) Radius
– See
Figure 4-32 on page 4-44
View A
TOP Holes
BOTTOM Holes
