SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-68
Published 11-20-19, Control # 234-19

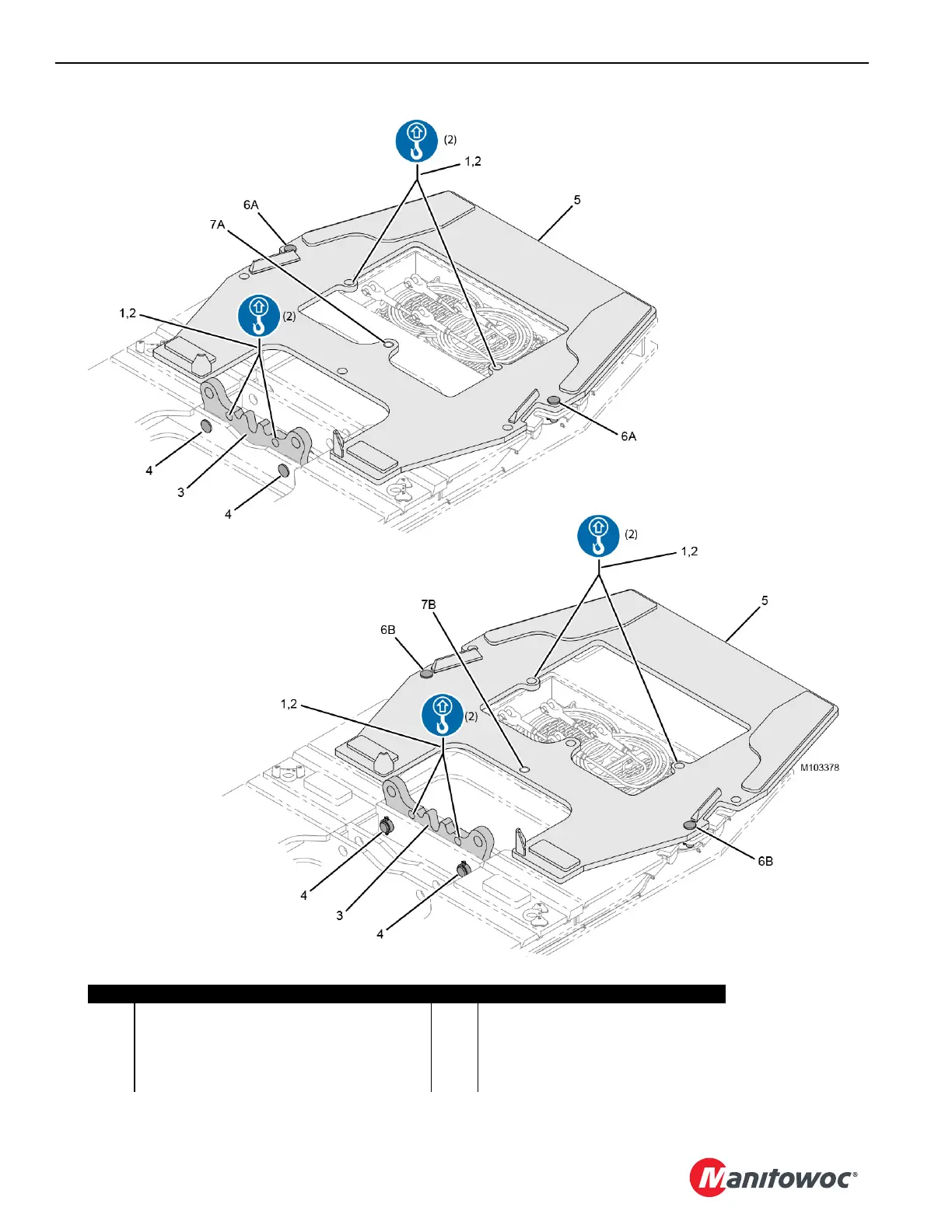

Figure 4-50
Item Description Item Description
1 Shackle (2): 20,5 t (23 USt) 6 Pin with Cotter Pin (4)
2 Lifting Sling (2): 2,8m (9 ft) long 7 Pin with Cotter Pin (2)
3 Mounting Frame (2) A Frame Holes for VPC
4 Pin with Collar, Retaining Pin and Cotter Pins (4) B Frame Holes for VPC-MAX
5 Counterweight Tray Frame (2)
View A
VPC Arrangement
View B
VPC-MAX Arrangement
