SETUP AND INSTALLATION MLC300 OPERATOR MANUAL

4-70

Published 11-20-19, Control # 234-19

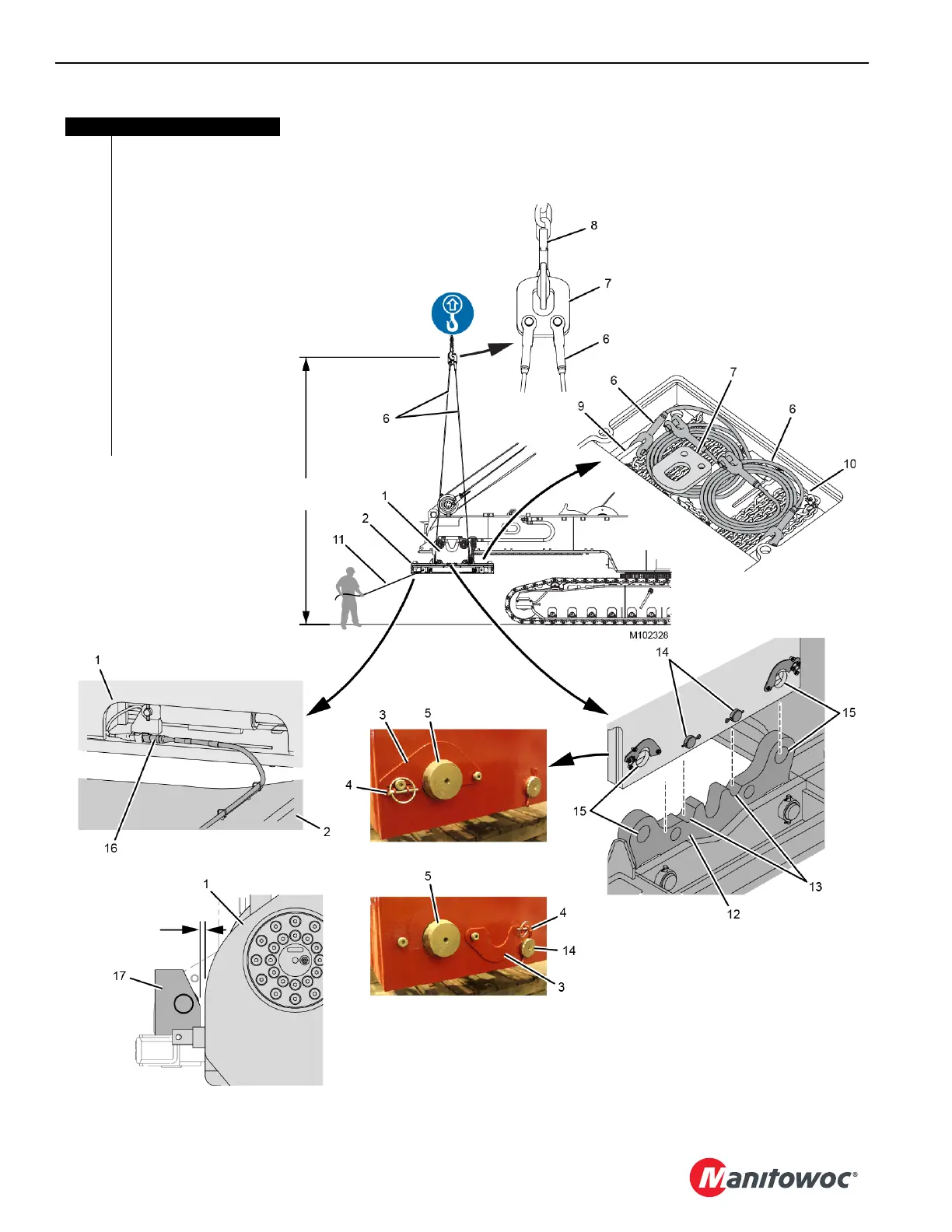

Figure 4-51

Item Description

1VPC Trolley

2 Counterweight Tray

3 Keeper Plate (4)

4 Quick-Release Pin (4)

5 Counterweight Tray Pin (4)

6 Lifting Pendant (4)

7 Lifting Plate (2)

8 Assist Crane Sling (2)

9 Lifting Lug (4)

10 Counterweight Chain

Assemblies (4)

11 Hand-Held Tagline

12 Mounting Frame (2)

13 Alignment Notch (4)

14 Alignment Pin (4)

15 Connecting Holes

16 Electric Cable

17 Stop Block (2)

11 765 kg

(25,937 lb)

View F

View A

View E

View H

View C

View D

View B

(4)

View G

7,4 m (24 ft)

13mm (1/2 in)
