SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-92
Published 11-20-19, Control # 234-19

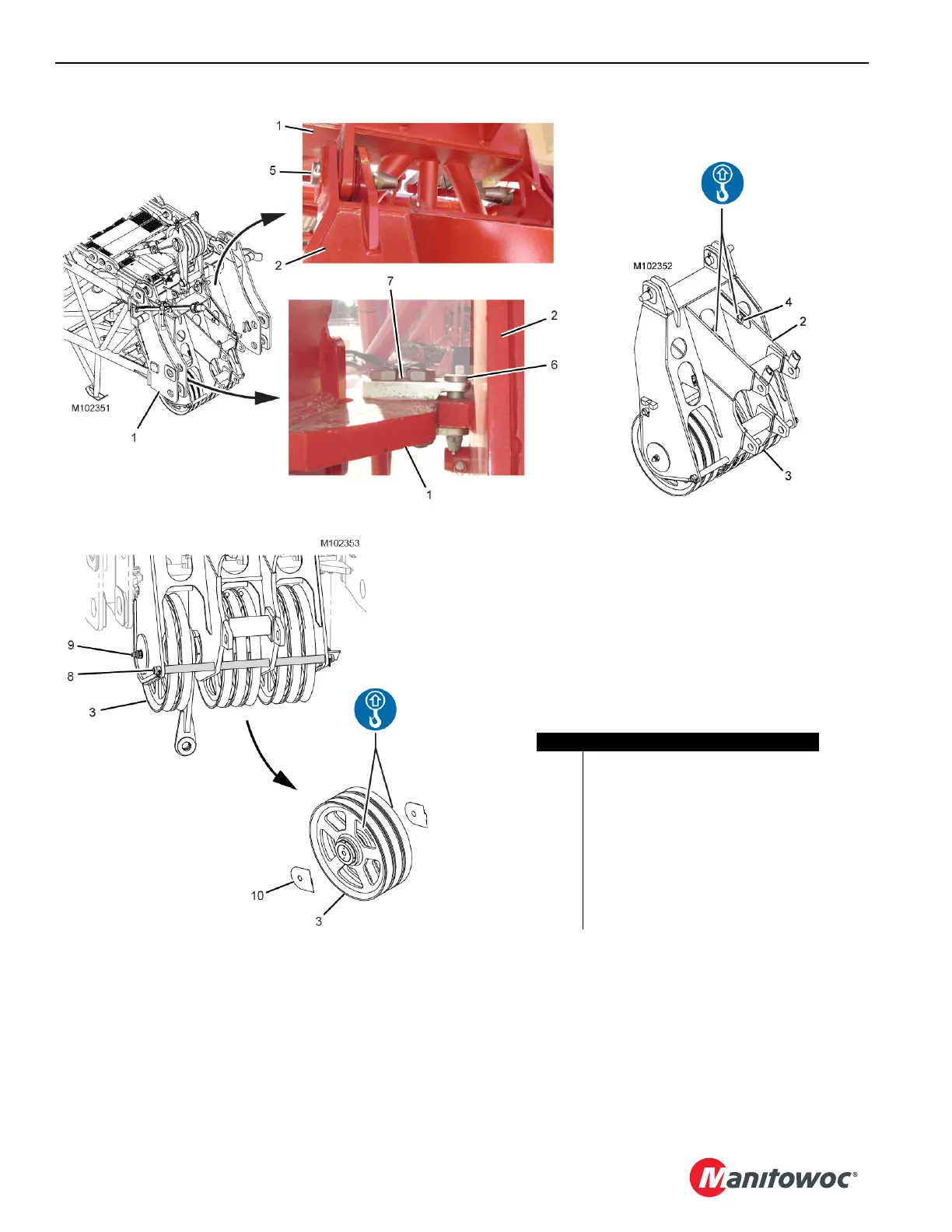

Figure 4-66
Item Description
1Boom Top
2 Lower Boom Point
3 Sheave Cluster (1 or 3)
4 Lifting Ring (2)
5 Pin with Cotter Pins (2)
6 Pin with
7 Lug (4)
8 Rope Guard with Safety Pins
9 Shaft with Flat Washer and Lock Nut
10 Shim (16 gage and 22 gage)
View A
View B
View C
View D
(1)
View E
(2)
