SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-96
Published 11-20-19, Control # 234-19
View A
6,5 m (21 ft) Radius
View B
without Drum 6
View C
with Drum 6
View H
STORED
View F
View D
DISENGAGED
View E
ENGAGED
Lower
Upper
Upper
Lower
View G
WORKING

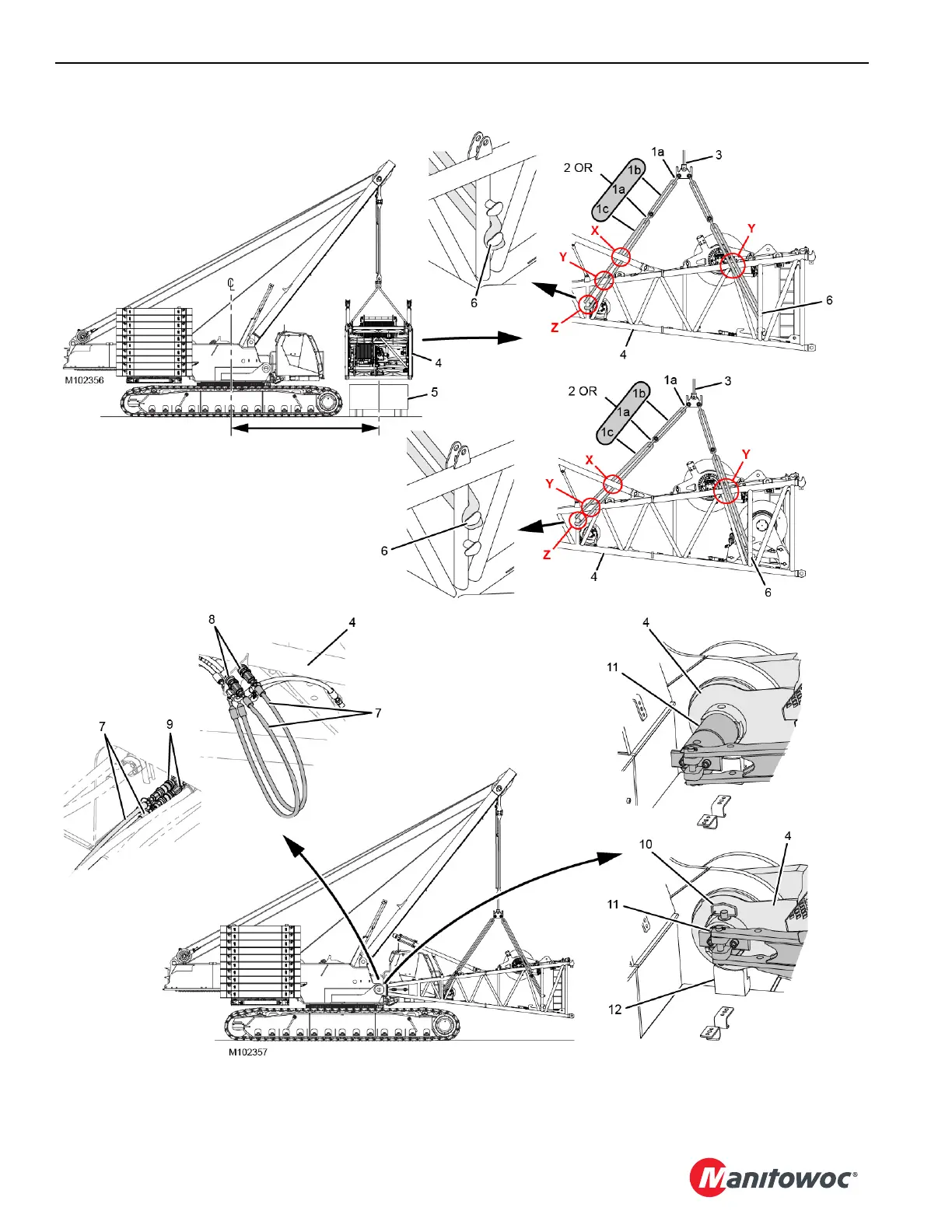

Figure 4-68
Legend is on the following page.
Inboard Side
Inboard Side
