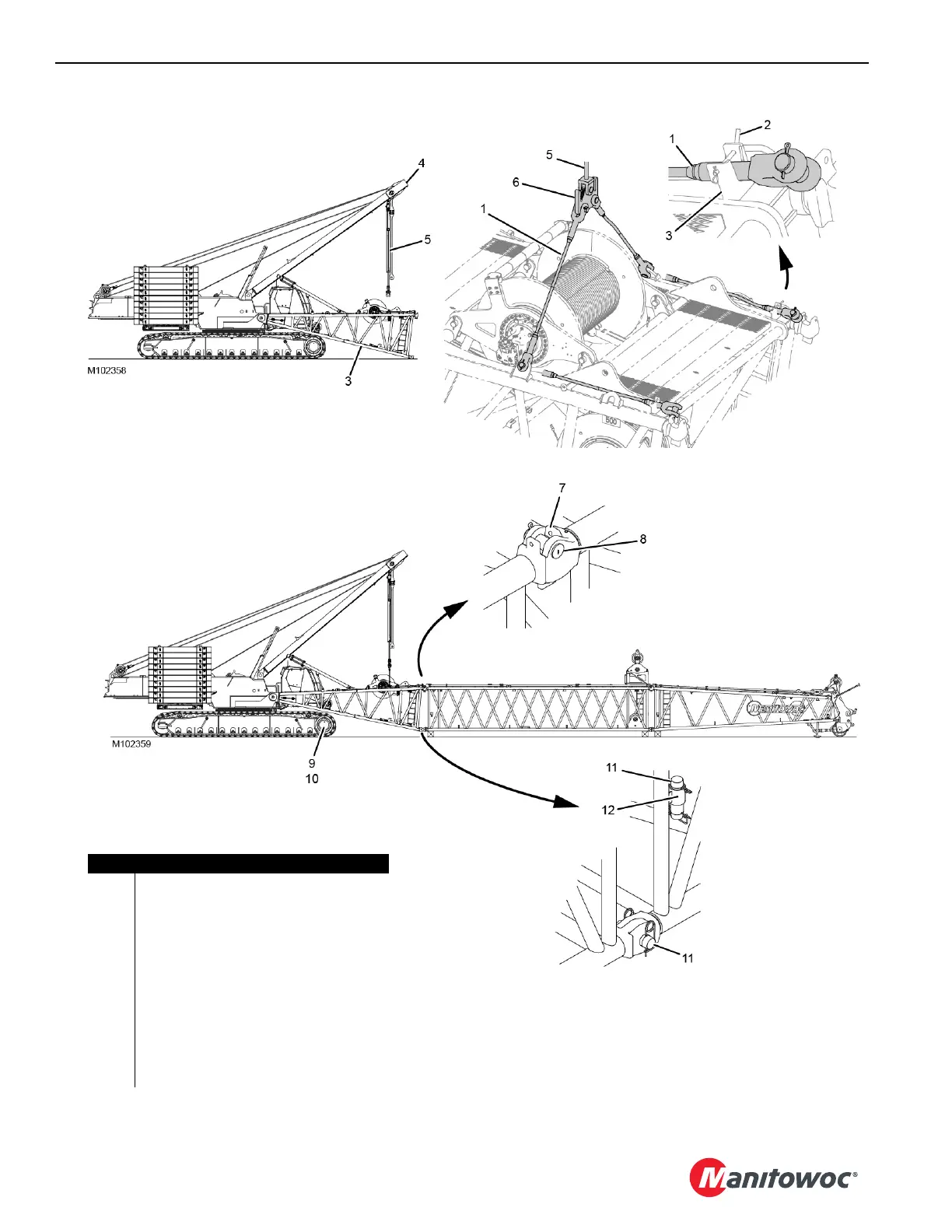

Figure 4-69
Item Description
1 Handling Pendant (2)
2 Hitch Pin with Hair-Pin Cotter
3Boom Butt
4Live Mast
5 Self-Erect Cylinder
6 Lifting Link
7 Hooked Connector (2)
8 Fixed Horizontal Pin (2)
9 Front Crawler Roller or Drive Tumbler (2)
10 Blocking
11 Pin with Safety Pin (2)
12 Storage Tube (2).
View A
View C
View B
View E
View D
View F
