SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-108
Published 11-20-19, Control # 234-19

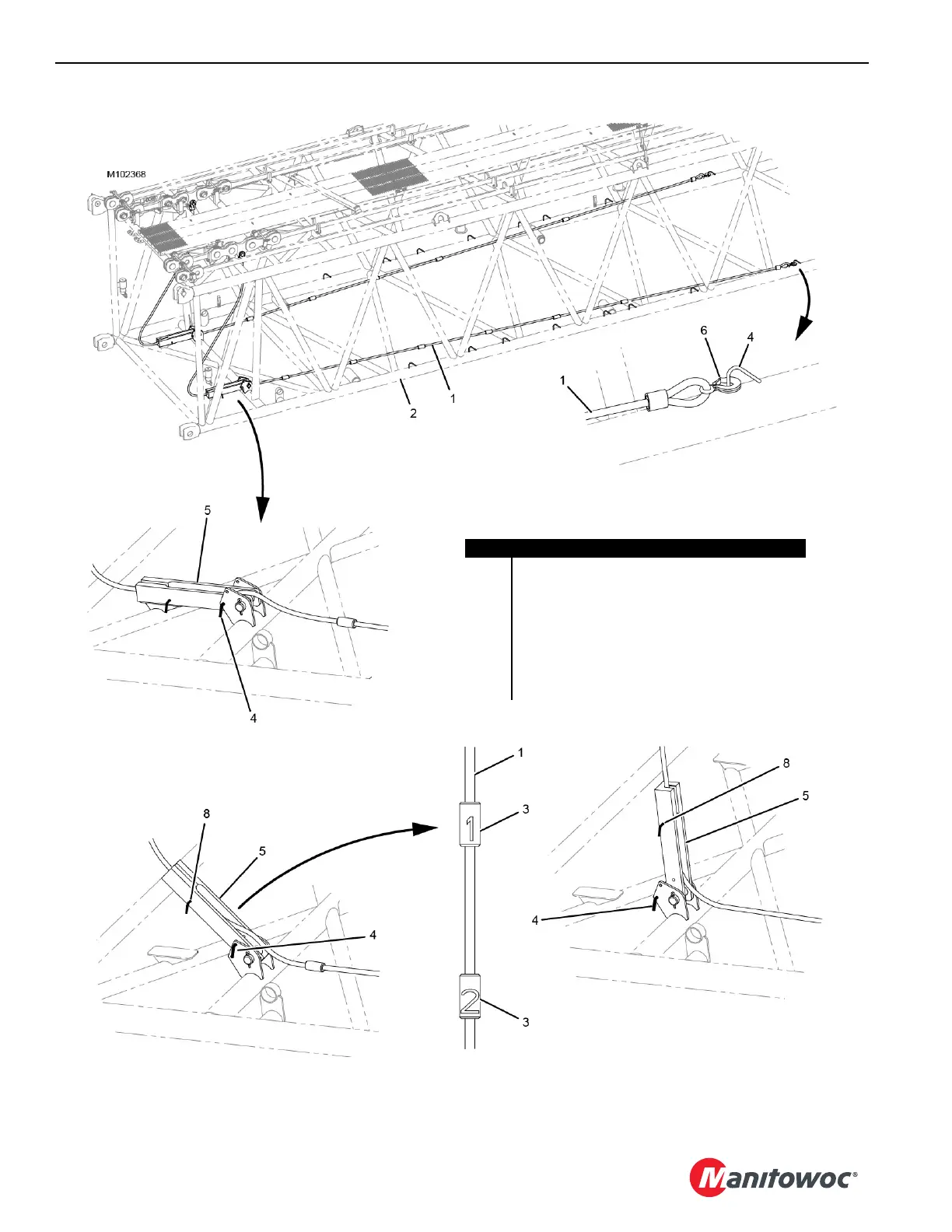

Figure 4-74
Item Description
1 Intermediate Suspension Pendant (2)
2 12 m (39.4 ft) Intermediate Suspension Insert
3 Pendant Button (7 each pendant)
4 Socket Locking Pin with Hair-Pin Cotter (2)
5 Socket (2).
6 Pendant Hook (7 each chord)
7 Bracket (2)
8 Button Locking Pin with Hair-Pin Cotter
View A
View B
SHIPPING
View C RIGGING
View E – WORKING
View D
View F
All Views Typical Two Places
