SETUP AND INSTALLATION MLC300 OPERATOR MANUAL

4-134

Published 11-20-19, Control # 234-19

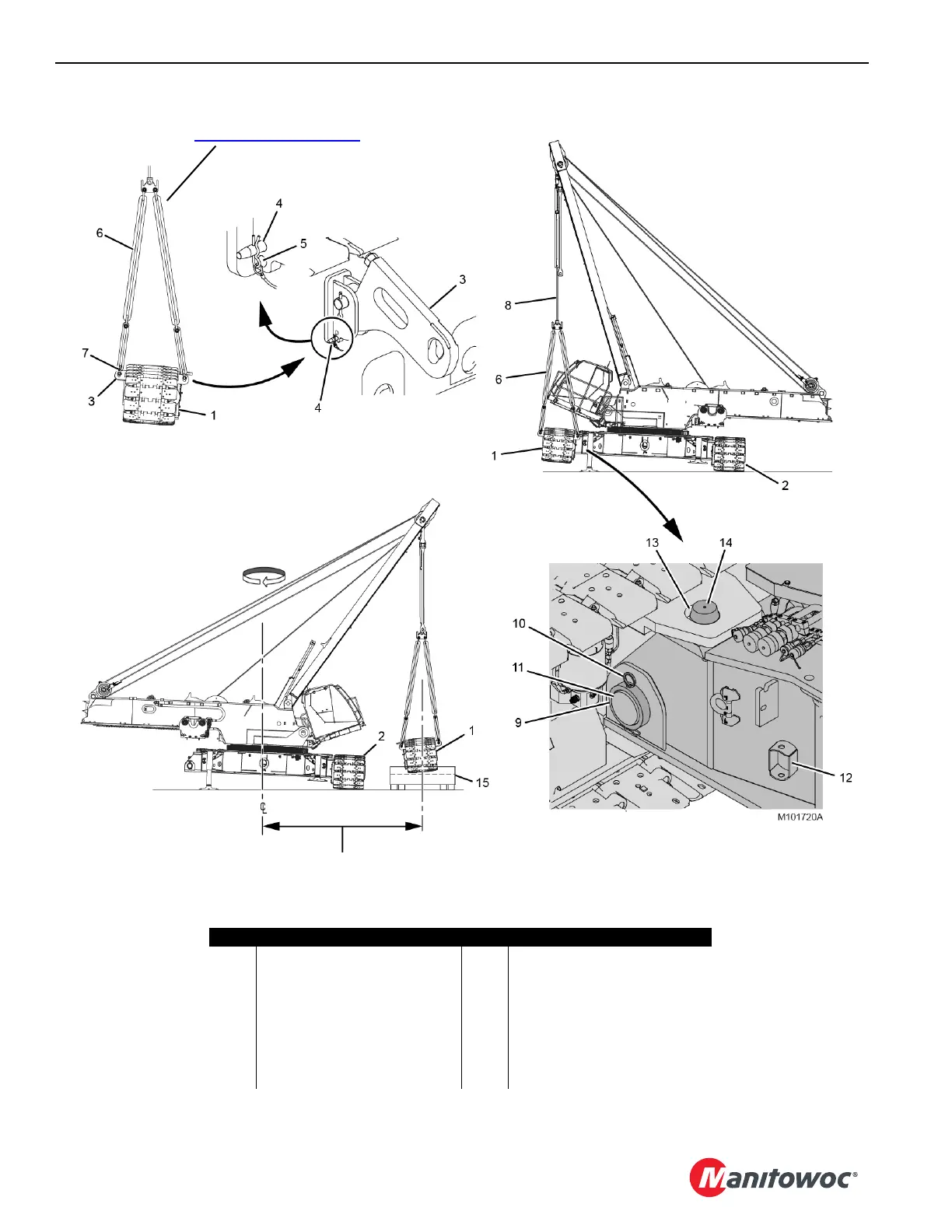

Figure 4-90

Item Description Item Description

1 First Crawler 9 Collar

2 Second Crawler 10 Hitch Pin with Hair-Pin Cotter (2)

3Lifting Link (3) 11 Crawler Pin (2)

4 Hitch Pin with Hair Pin Cotter (1) 12 Storage Lug (2)

5 Bottom Holes 13 Top Connecting Hole (2)

6 Lifting Slings (3 legs) 14 Top Connecting Pin (2)

7 Shackle (3): 20,5 t (23 USt) 15 Trailer (single-drop deck)

8 Self-Erect Cylinder

7,3 m (24 ft) Radius

In Top Holes

In Bottom Holes

View A

View B

View C

View D

View E
