Manitowoc MLC300 - Page 284

SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-138
Published 11-20-19, Control # 234-19

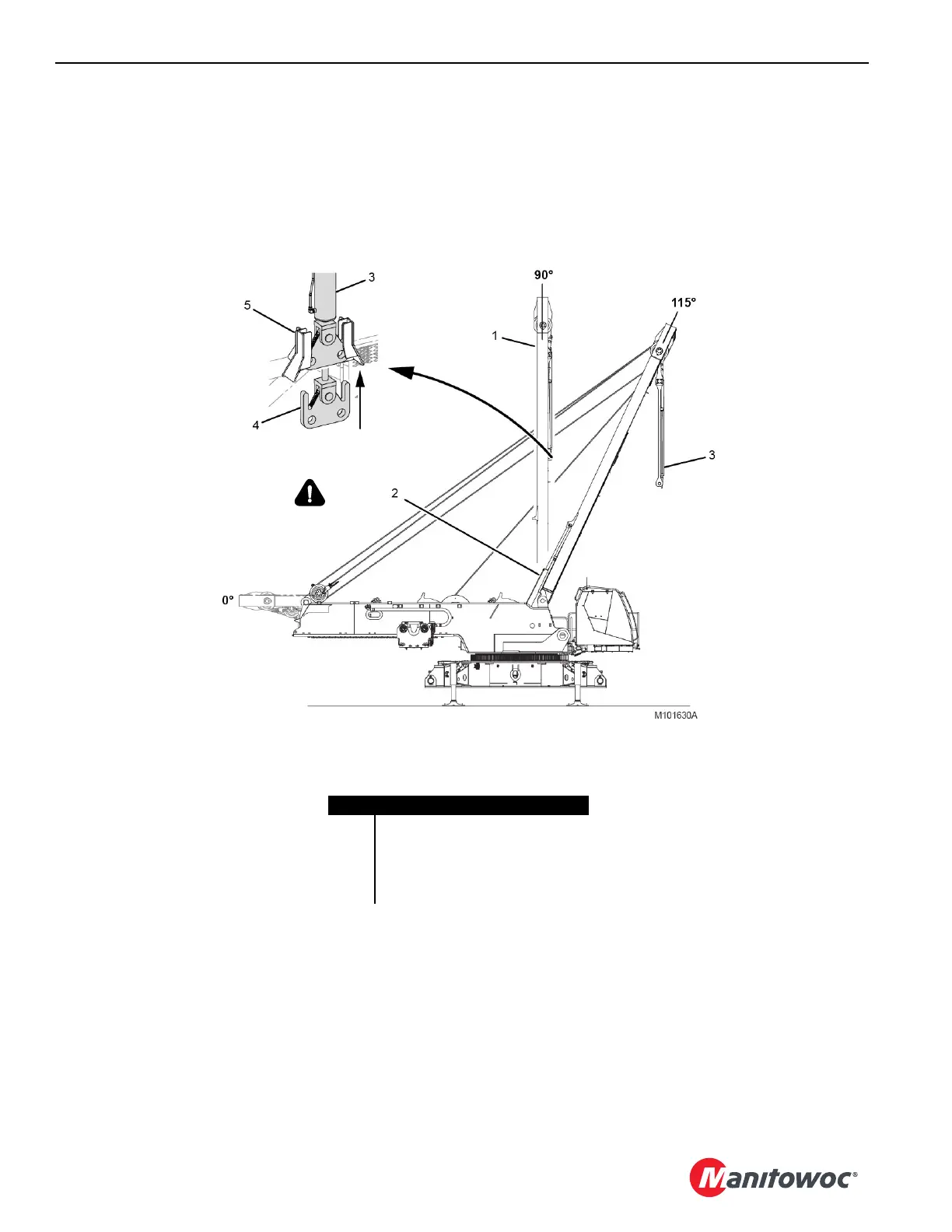

Figure 4-93
Item Description
1Live Mast
2 Mast-Assist Arm and Cylinder (2)
3 Self-Erect Cylinder
4Lifting Link
5 Storage Bracket (2)
FULLY
RAISED
View A
View B
