SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-148
Published 11-20-19, Control # 234-19

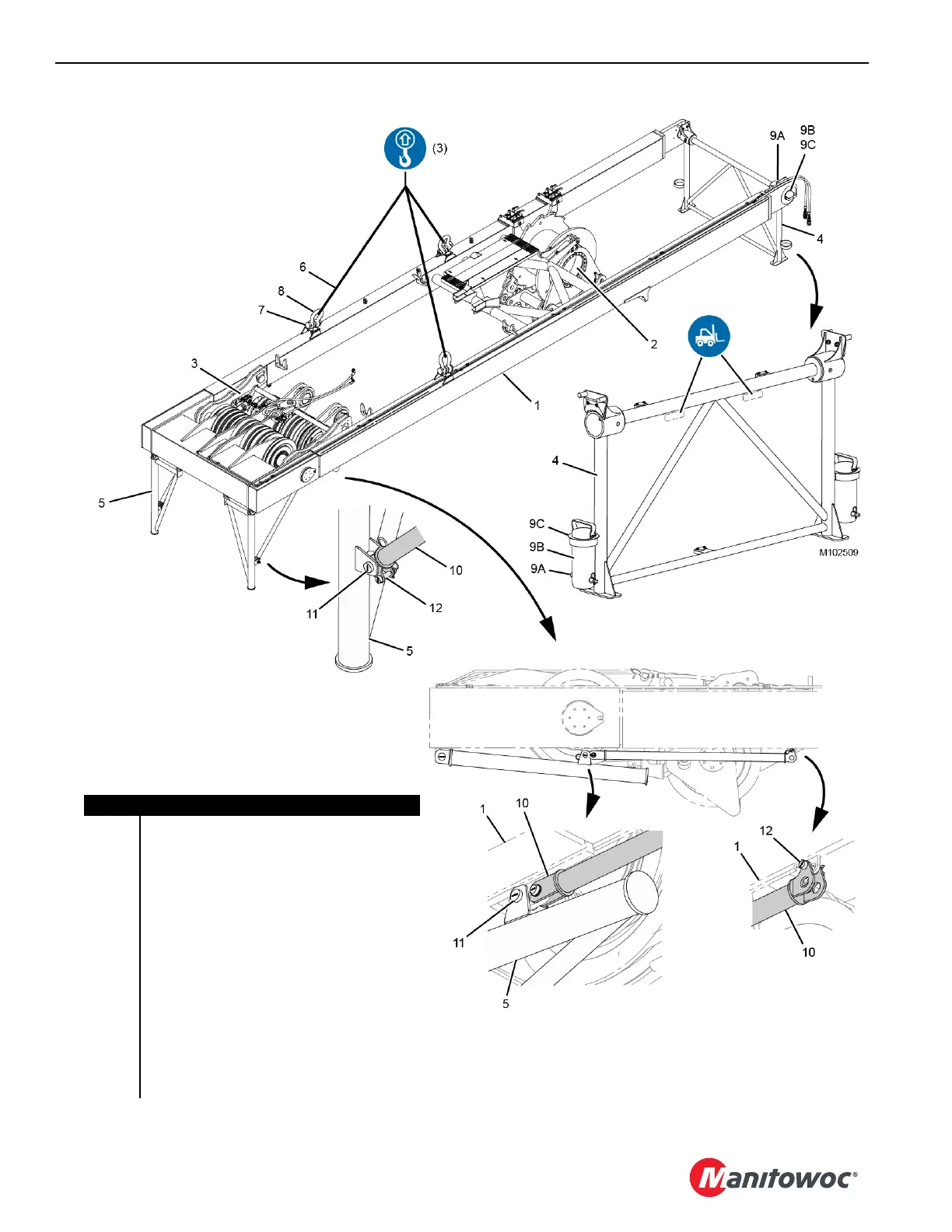

Figure 4-99
View A
View B
View E
(2 places)
View D
(2 places)
View C
(2 places)
Item Description
1Live Mast
2 Boom Hoist (Drum 4)
3 Boom Hoist Equalizer
4 Mast Hinge Support
5 Stand (2)
6 Lifting Sling (3): 2,8m (9 ft) long
7 Lifting Lug (3)
8 Shackle (3): 25 t (28 USt)
9A Retaining Pin and Hair-Pin Cotter (2)
9B Pin (2)
9C Shim (2)
10 Strut (2)
11 Pin with Hair-Pin Cotter (2)
12 Pin with Hair-Pin Cotter (2)
