SETUP AND INSTALLATION MLC300 OPERATOR MANUAL
4-150
Published 11-20-19, Control # 234-19
Item Description
1Live Mast
2 Boom Hoist (Drum 4)
3 Boom Hoist Equalizer
4 Mast Hinge Support
5 Stand (2)
6 Lifting Sling (3): 2,8m (9 ft) long
7 Lifting Lug (3)
8 Shackle (3): 20,5 t (23 USt)
9 Blocking
View A
View B

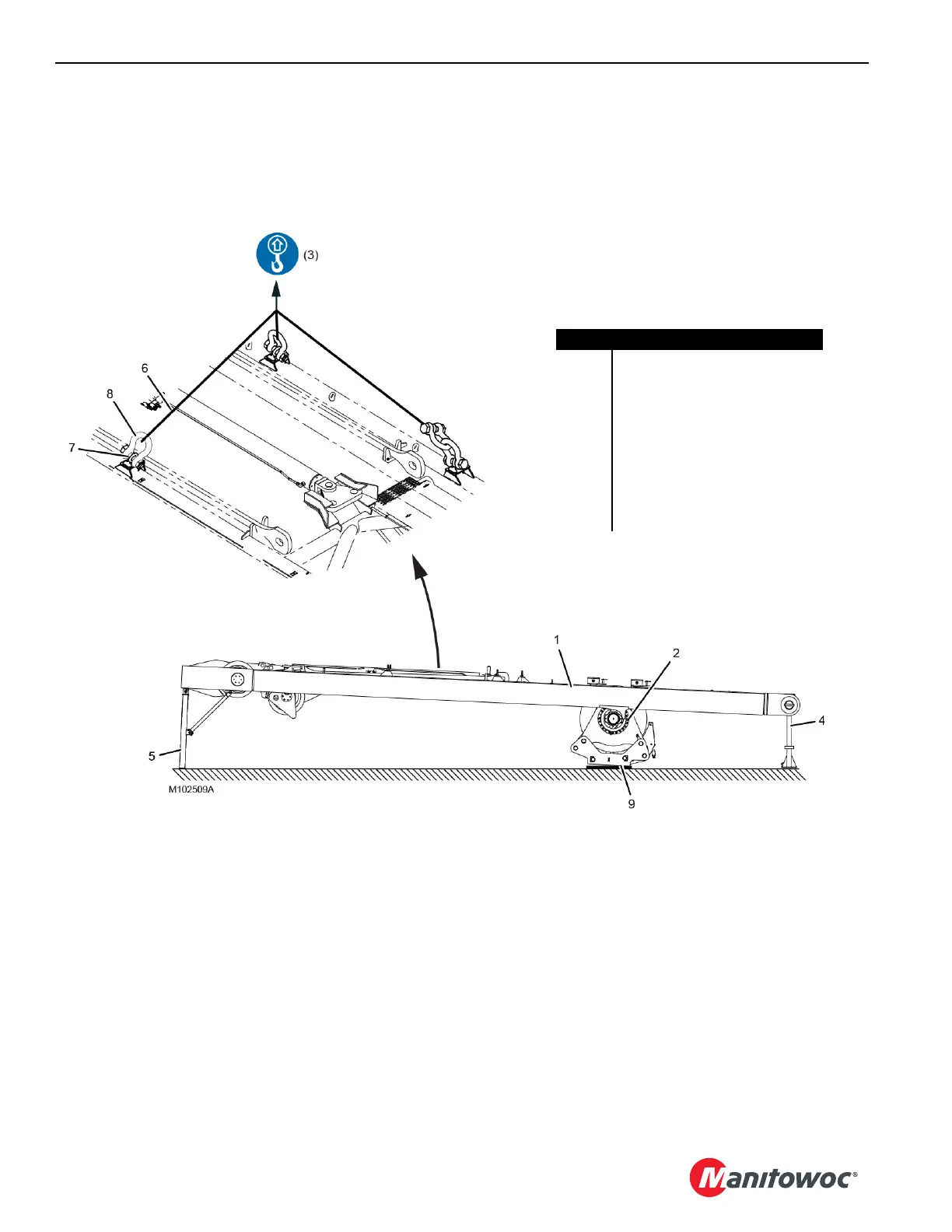

Figure 4-100
View C
