Manitowoc Published 11-20-19, Control # 234-19 3-19
MLC300 OPERATOR MANUAL OPERATING CONTROLS AND PROCEDURES
10 Park Switches (continued)
Alternatively, each of the crane functions can be parked in the Main Display
Speed and Torque Settings Screen. See the Main Display Operation Manual for
instructions.
If the operator moves a control handle for a function that is parked, the
corresponding fault icon will appear in the Alerts Bar of the Main Display
Working Screen and the function will be inoperable until un-parked.
if the function was parked with a park switch.
If the function was parked in the speed and torque settings screen.
11 Engine Ignition Switch
The engine ignition switch has the following positions:
• Stop (A)
• Run (B)
•Start (C)
12
Engine Regeneration/Inhibit
Switch
The regeneration/inhibit switch is a three-position rocker switch.
The top position is momentary. The center and bottom positions are
maintained. For more information on this switch, see Section 7 of
the MLC300 Service Manual.
Active Position
The active center position is for normal engine operation. The
position does not require operator assistance under normal
conditions. This position allows the exhaust system to actively
(automatically) regenerate.
Manual Regeneration
If the Engine Information Screen in the Main Display indicates the exhaust
system requires a manual regeneration, press and release the top of the rocker.
The engine ECM will control a regeneration cycle.
The top of the rocker switch is momentary and the switch will return to the active
position after the top of the switch is pressed.
A manual regeneration will begin only if the engine is at low idle.
NOTE The top end of the switch has a guard that prevents accidental manual
regeneration.
The High Exhaust System Temperature (HEST) lamp may come on during
regeneration and remain on for a short time after regeneration.
Continued on next page.

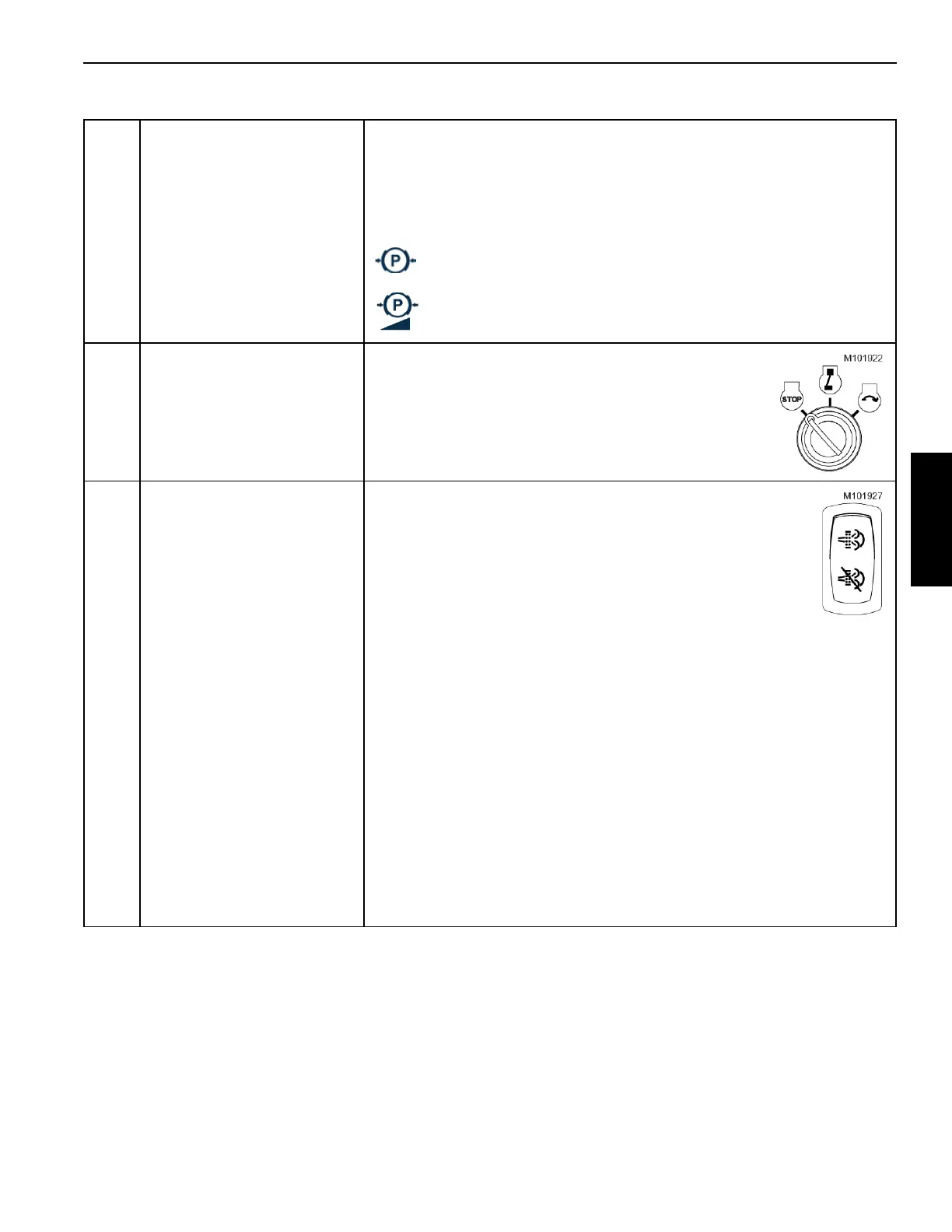

Table 3-6. Right Console
