OPERATING CONTROLS AND PROCEDURES MLC300 OPERATOR MANUAL
3-22
Published 11-20-19, Control # 234-19

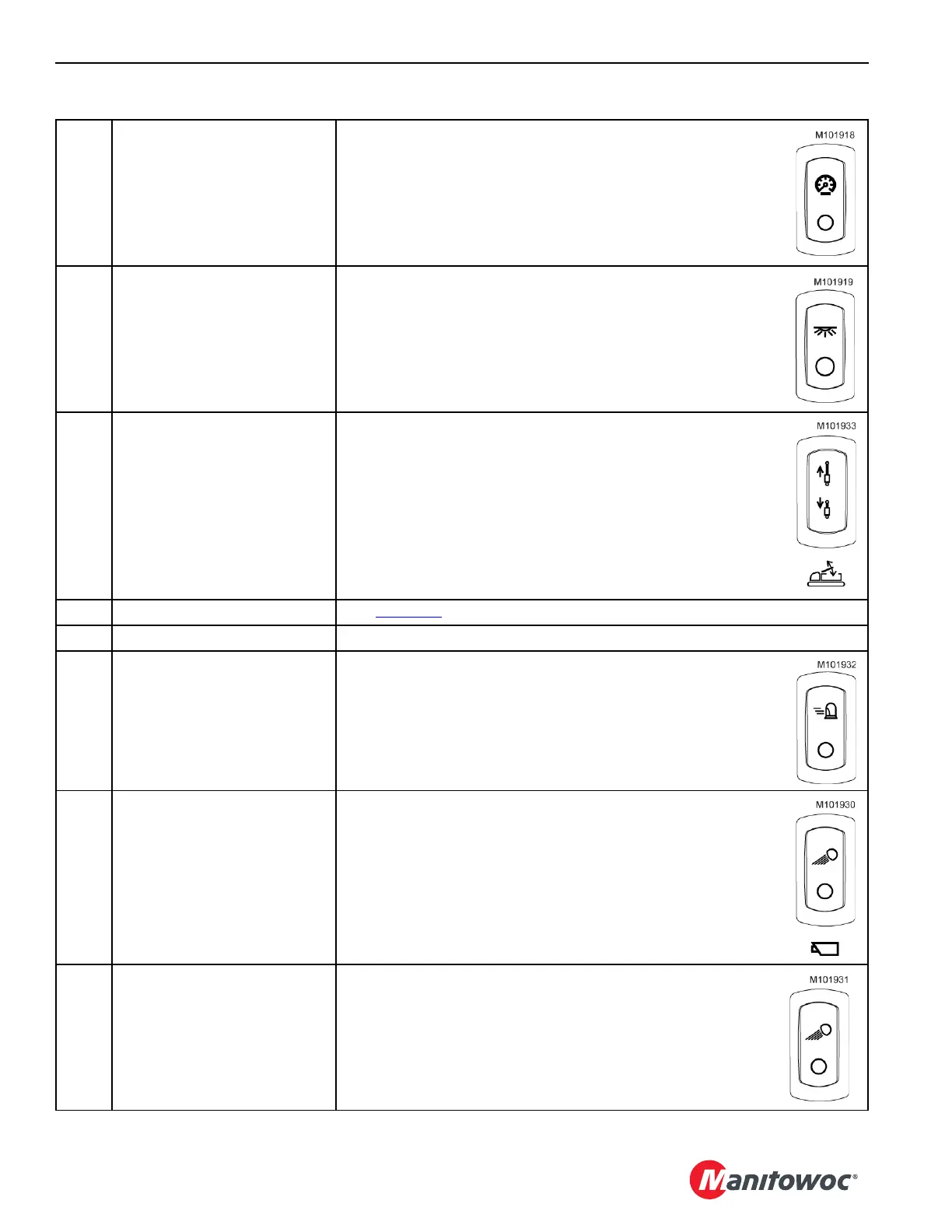

16 Panel Lights
• Press the TOP of rocker to TURN ON the panel switch
backlights.
• Press the BOTTOM of rocker to TURN OFF the panel switch
backlights.
17 Dome Lights
• Press the TOP of rocker to TURN ON the dome light.
• Press the BOTTOM of rocker to TURN OFF the dome light.
18 Mast Assist Arms Switch
The setup mode must be on (live mast configuration selected) to
operate the mast assist arms. See Section 4 of the MLC300
Operator Manual for instructions.
• Press and hold the TOP of the rocker to EXTEND the mast arm
cylinders.
• Release the rocker to CENTER to STOP the cylinders. The
valves on the cylinders lock them in position.
• Press and hold the BOTTOM of the rocker to RETRACT the
mast arm cylinders.
19 Climate Control Keypad See page 3-29
for more information.
20 AM/FM Radio See the radio manufacturer’s instructions.
21 Boom and Jib Position Light
• Press the TOP of the rocker to TURN ON the flashing red position
light at the top of the boom or the jib.
• Press the BOTTOM of the rocker to TURN OFF the position light
at the top of the boom or the jib.
22 Camera Lights
• Press the TOP of the rocker to TURN ON the camera lights.
• Press the BOTTOM of the rocker to TURN OFF the camera
lights.
23 Crane Work Lights Switch
• Press the TOP of the rocker to TURN ON the work lights.
• Press the BOTTOM of the rocker to TURN OFF the work lights.
Table 3-6. Right Console
