OUTRIGGERS 1300A
7-4 01-22-2019 Control # 051-08
4. Adjust the wear pads as described in Wear Pad
Adjustment on 5.
5. Retract the outrigger.
6. Align the base of the extension cylinder barrel up with
the holes in the end of the outrigger box.
7. Bolt the extension cylinder to the end of the outrigger
box with the two bolts (1/2-13UNC x 1.5 G5).
8. Reconnect the hydraulic lines as per removal tags.
9. If crane is equipped with the Outrigger Monitoring
System, install string potentiometer using the
procedures under String Potentiometer, page 7-7.
EXTENSION CYLINDER
The purpose of the extension cylinder is to extend and
retract the outrigger beam.
Removal
1. Remove the outrigger beam assembly as described in
Outrigger Beam Removal on 1.
2. Remove the keeper (7) from the keyhole.
3. Remove the rod end of the extension cylinder (6) from
keyhole on the stabilizer end of the outrigger beam
(Figure 7-4).
4. Slide the extension cylinder out from the outrigger beam.
Be careful not to drop the cylinder.
NOTE: The hydraulic hoses for the stabilizer cylinder are
removed with the extension cylinder. Be careful not
to damage the hydraulic hoses.
5. Tag and disconnect the hydraulic hoses for the stabilizer
cylinder at the base of the extend cylinder.
Installation
1. Reconnect the hydraulic hoses for the stabilizer cylinder
to the base of the extension cylinder per removal tags.
2. Secure the stabilizer hydraulic hoses to the extend
cylinder with the tie wraps as shown in (Figure 7-4).
3. Slide the extension cylinder into the outrigger beam.
Make sure the stabilizer hydraulic hoses are routed as
shown in Figure 7-4.
3

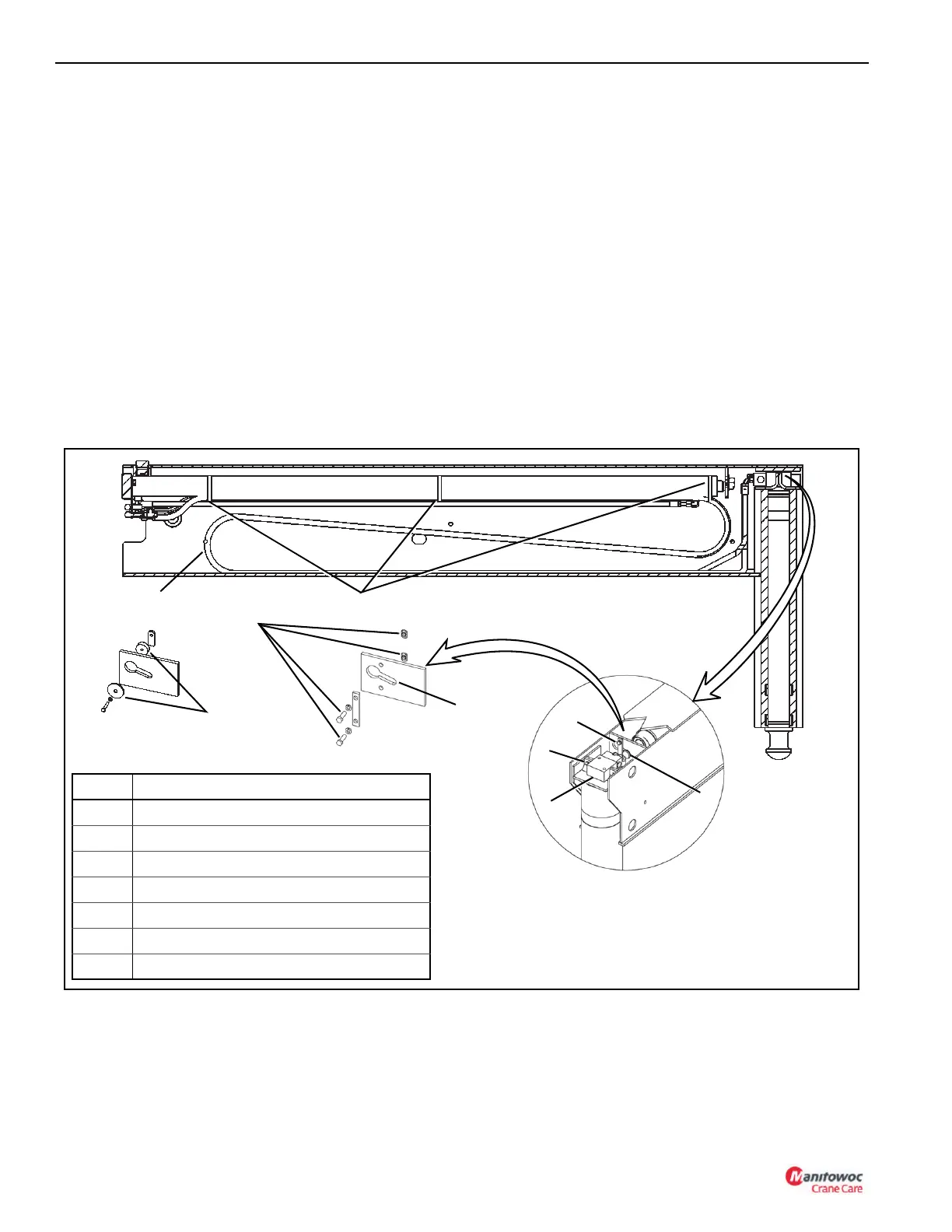

FIGURE 7-4
1
2
6
5
Item Component
1 Stabilizer Cylinder Hydraulic Lines
2Tie Wraps
3 Retaining Clips
4 Keyhole
5Check Valve
6 Extension Cylinder Rod End
7 Keeper (Later Version)
7
4
7
Keeper
Earlier
Version
