HOIST 1300A
5-2 01-22-2019 Control # 051-08
HOIST MAINTENANCE
Inspect the hoist daily for oil leaks, loose bolts, and worn
hoist cable. Check the gearbox and brake oil every 500
hours. Do an oil change every 1000 hours. See Section 8
Lubrication. Inspect the hoist from the deck of the crane. Do
not stand on the turret.
Warm-up Procedure
A warm-up procedure is recommended at each start-up and
is essential if ambient temperature is below +40°F (4°C).
Run the crane at idle with the hoist control lever in neutral
and allow sufficient time for the hydraulic system to warm up.
Operate the hoist at low speeds, forward and reverse,
several times to prime all lines with warm hydraulic oil and
circulate lubricant through the planetary gear sets.
Removal
NOTE: See Figure 5-1 for item number (#) identification.
1. Remove the cable from the hoist drum.
2. Remove the U-bolts (8) and rope mesh guard (9).
3. Tag and disconnect the hoist hydraulic lines. Cap or plug
all hydraulic openings.
4. Attach a lifting device to hoist and take up the slack.
5. Remove the mounting bolts (5) from the hoist.
6. Remove the hoist from the crane with the lifting device.
DANGER
Do not, under any circumstances, work at an elevated
height without using proper fall protection as required by
local, state, or federal regulations.
12
1
2
3
4
6
5
8
11
14
13
10
7
9
15

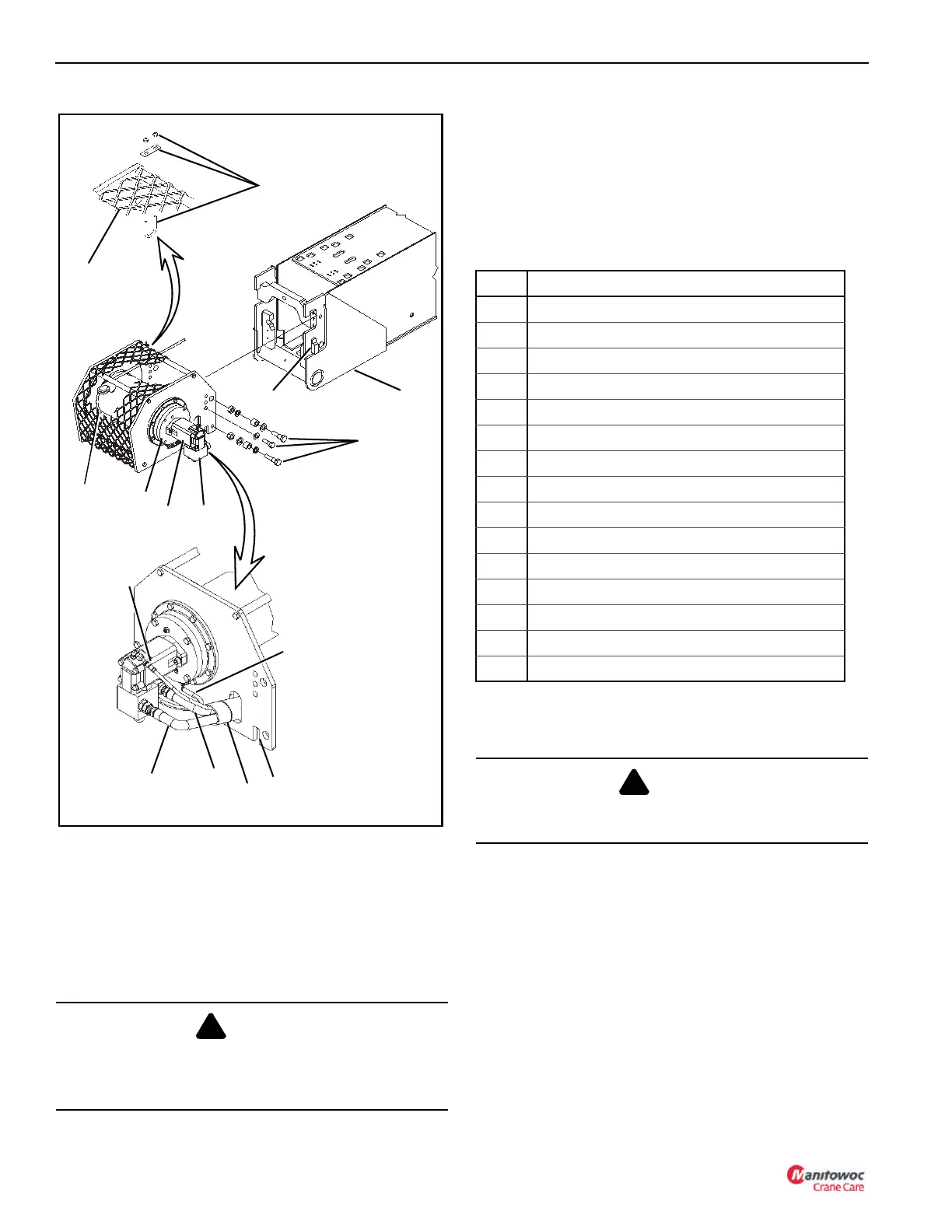

FIGURE 5-1
Item Component
1Hoist
2Brake
3 Motor
4 Motor Control Valve
5 Mounting Bolts
6 Alignment Ear
7 Boom
8 U-bolt
9 Rope Mesh Guard
10 Case Drain
11 Brake Hydraulic Pressure Line
12 Motor Hydraulic Pressure Line
13 Hydraulic Return Line
14 Alignment Slot
15 Anti-chafing Sleeve
CAUTION
The combined weight of the hoist and 325 ft. of wire rope
is 685 lbs (310 kg).
