CRANE INSTALLATION 1300A
9-16 01-22-2019 Control # 051-08

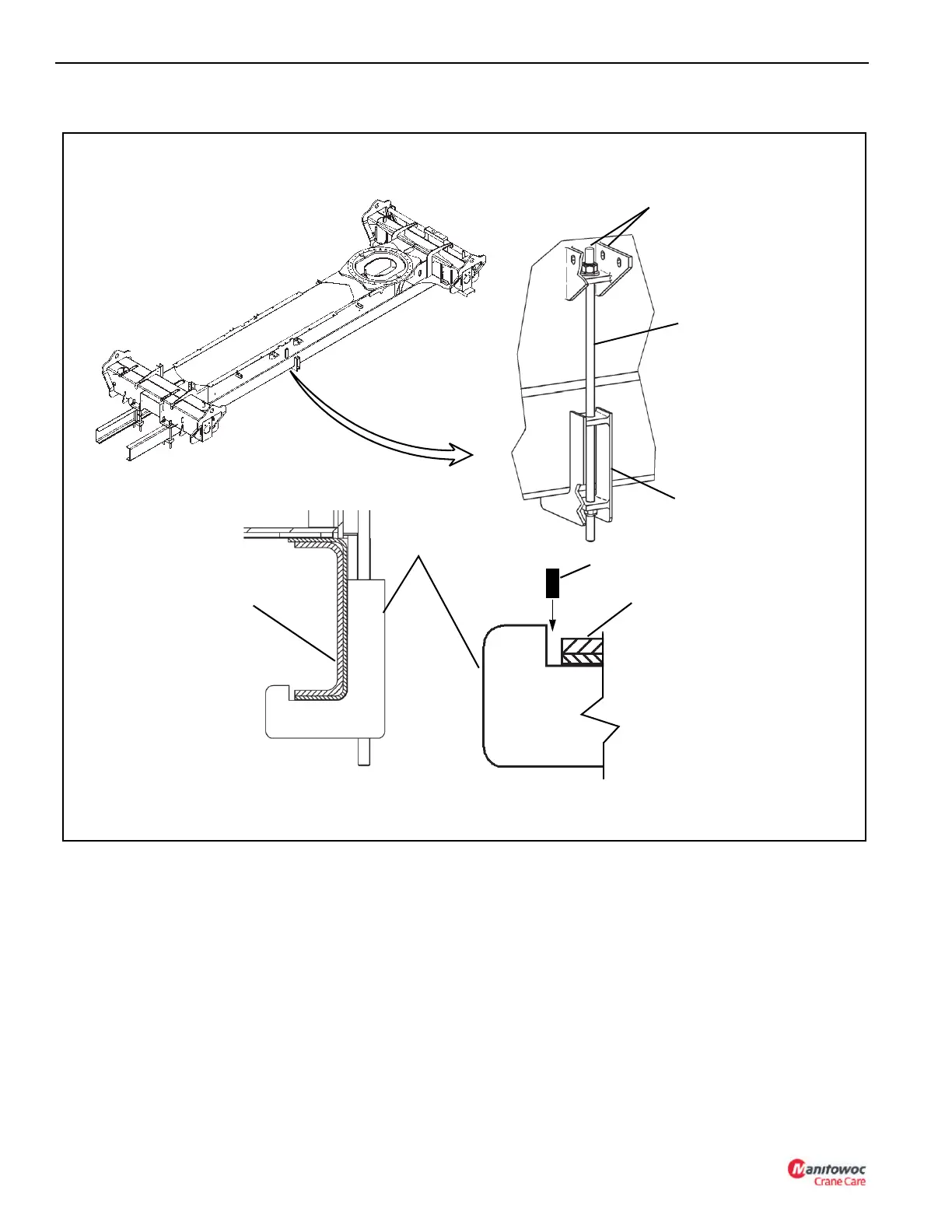

FIGURE 9-10
J-bracket
Mid-mount Anchor Bolt
Torque to 100 lb-ft
(2 Places)
Keep Threaded
Rod Below Bracket
NOTE: Shim the J-bracket to
fit tight around the
truck frame flange.
J-bracket
Truck Frame
Shim
Truck Frame
