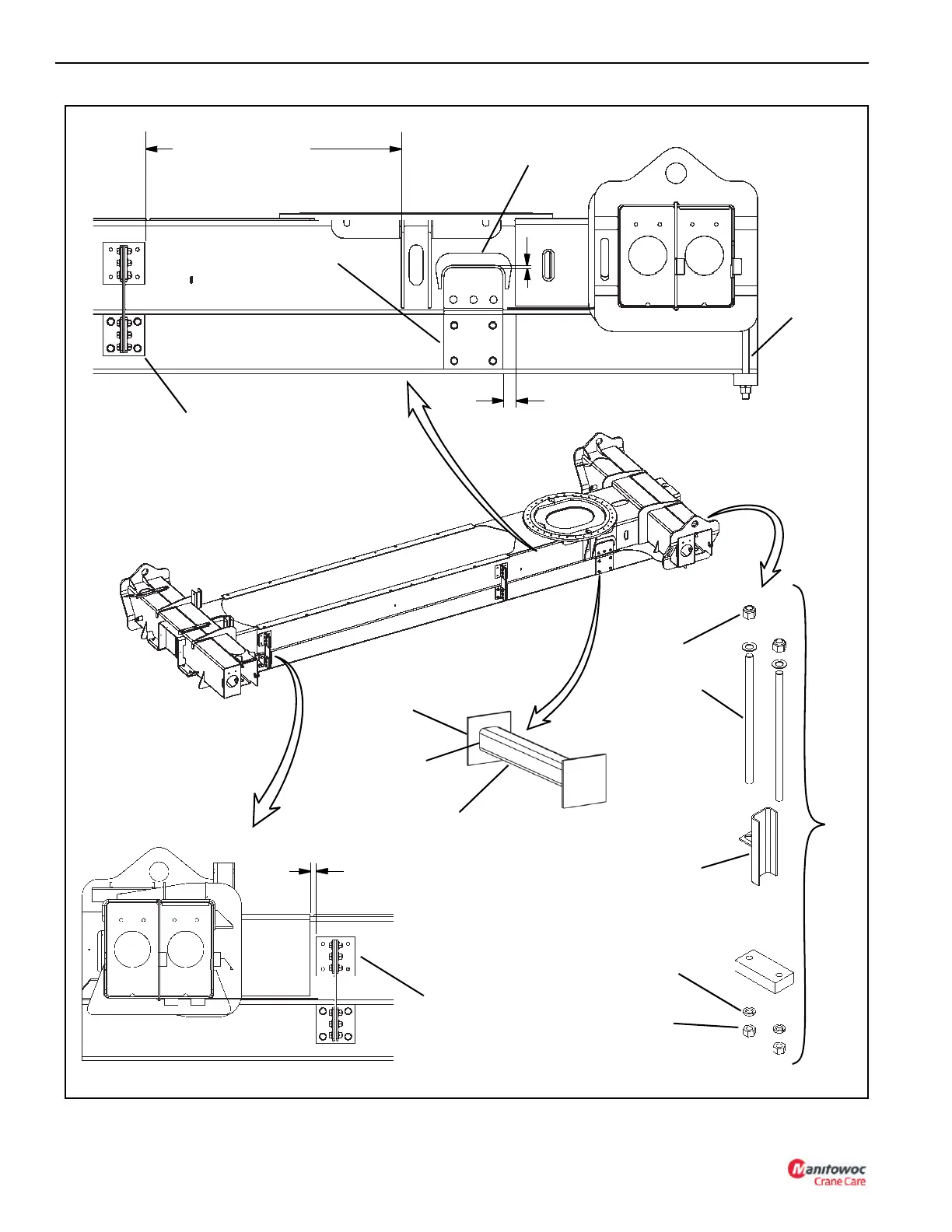

CRANE INSTALLATION 1300A
9-18 01-22-2019 Control # 051-08
1.00 min to 8.00 max
Weld Upper Mounting
Plate on four sides.
End Plate
Rear Clamp Both Sides (torque to 600 lb-ft)
Lock Bolt
Anchor Retaining
Bracket (cut to fit
inside truck frame)
Mounting Bolt
1-1/8 UNC
Grade 8
Lock Washer
Nut
Weld Two
Sides
Cross Member (cut to fit inside
truck frame with end plate)
2.00
32.00 min to 68.00 max
NOTE: All welds must be
grade 70 or better.
Rear Clamp
0.38
FIGURE 9-13
Doubler
Bolt-On Anchor Mount
Both Sides of T-box
Rear Anchor
Both Sides
of T-box
