Manitowoc National Crane 1300A Service And Maintenance Manual

National Crane 01-22-2019 Control # 051-08 3-3
1300A ELECTRIC SYSTEM
3
9
10
7
6

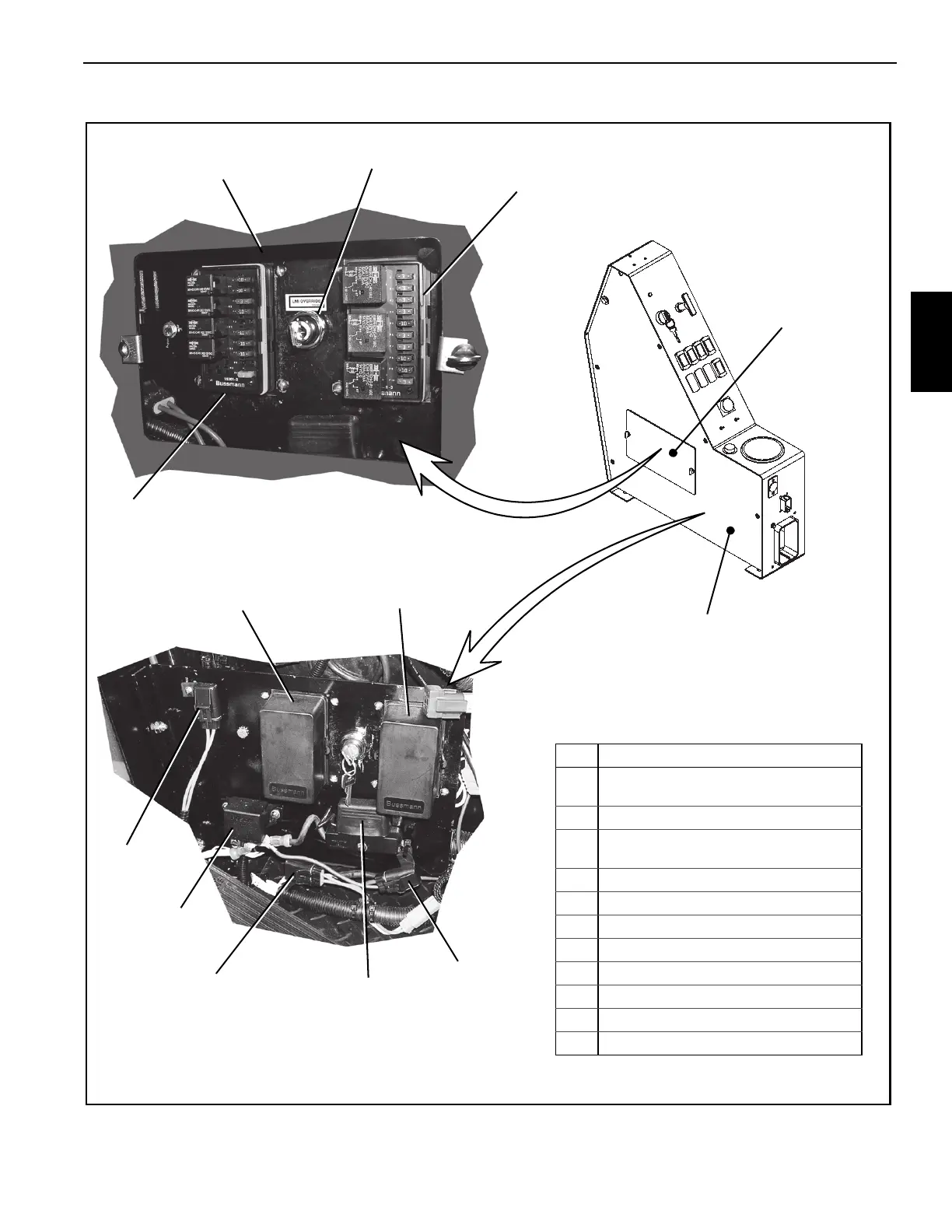

FIGURE 3-1
Crane Cab Console
8
5
4
3
2
1
76
Item Component
1
Crane cab heater fuse holder (F1) (20A) (red
leads)
2 Crane power fuse holder (F1) (30A)
3
Cab accessory fuse holder (F2) (20A) (orange
leads)
4 Main power relay
5 Seat safety switch fuse holder (F3) (3A)
6 Mini Relay Fuse Block
7Micro Relay Fuse Block
8 Fuse Compartment
9 RCL Override Key Switch
10 Access Panel
11 Side Panel
11
