Manitowoc National Crane 1300A Service And Maintenance Manual

National Crane 01-22-2019 Control # 051-08 6-3
1300A SWING
6
1
2
3
5
4
6
7
8
10
11
12
13
14
11
16
25
17
19
20
21
22
23
24
22
21
9

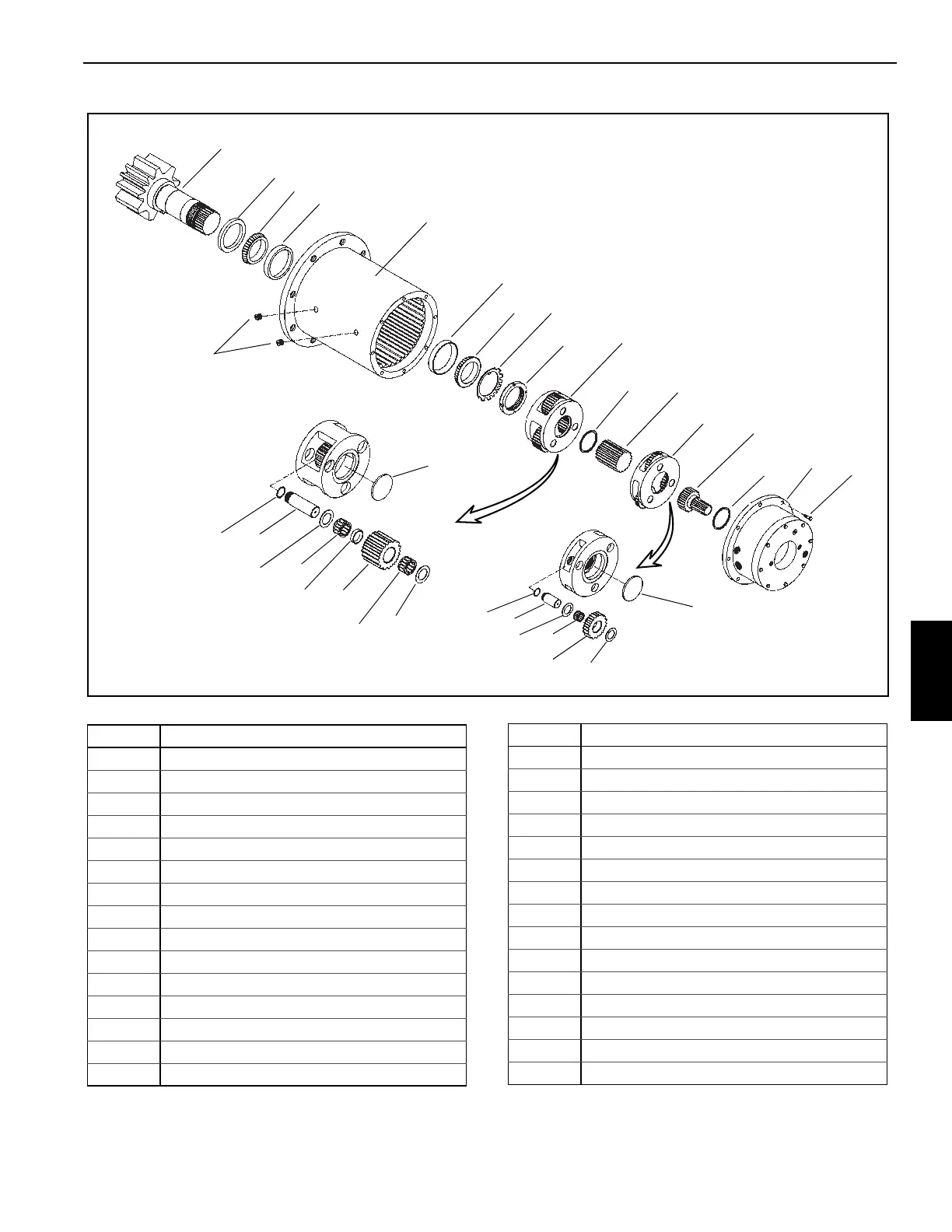

FIGURE 6-2
15
18
30
28
29
28
27
26
Item Component
1 Housing
2 Output Shaft
3 Seal
4 Lower Bearing
5 Lower Bearing Race
6 Upper Bering Race
7 Upper Bearing
8 Lock Washer
9 Locknut
10 Output Planetary Assembly
11 Thrust Washer
12 Output Sun Gear
13 Input Planetary Assembly
14 Input Sun Gear
15 Brake Assembly
16 Cap Screw (8)
17 Drain Plugs
18 Plate
19 Retaining Washer
20 Output Planetary Pin
21 Washer
22 Needle Bearing
23 Spacer
24 Output Planet Gear
25 Input Planet Gear
26 Retaining Washer
27 Input Planetary Pin
28 Washer
29 Needle Bearing
30 Plate
Item Component
Outer
Planetary
Gear
Inner
Planetary
Gear
