Manitowoc National Crane NBT30H-2 Service Manual

6
National Crane 03-20-2019 Control # 613-06 6-3
NBT30H-2 SERVICE MANUAL SWING
1
2
3
5
4
6
7
8
10
11a
12
13
14
11b
16
25
Grease Fitting
19
20
21
22
23
24
22
21
9

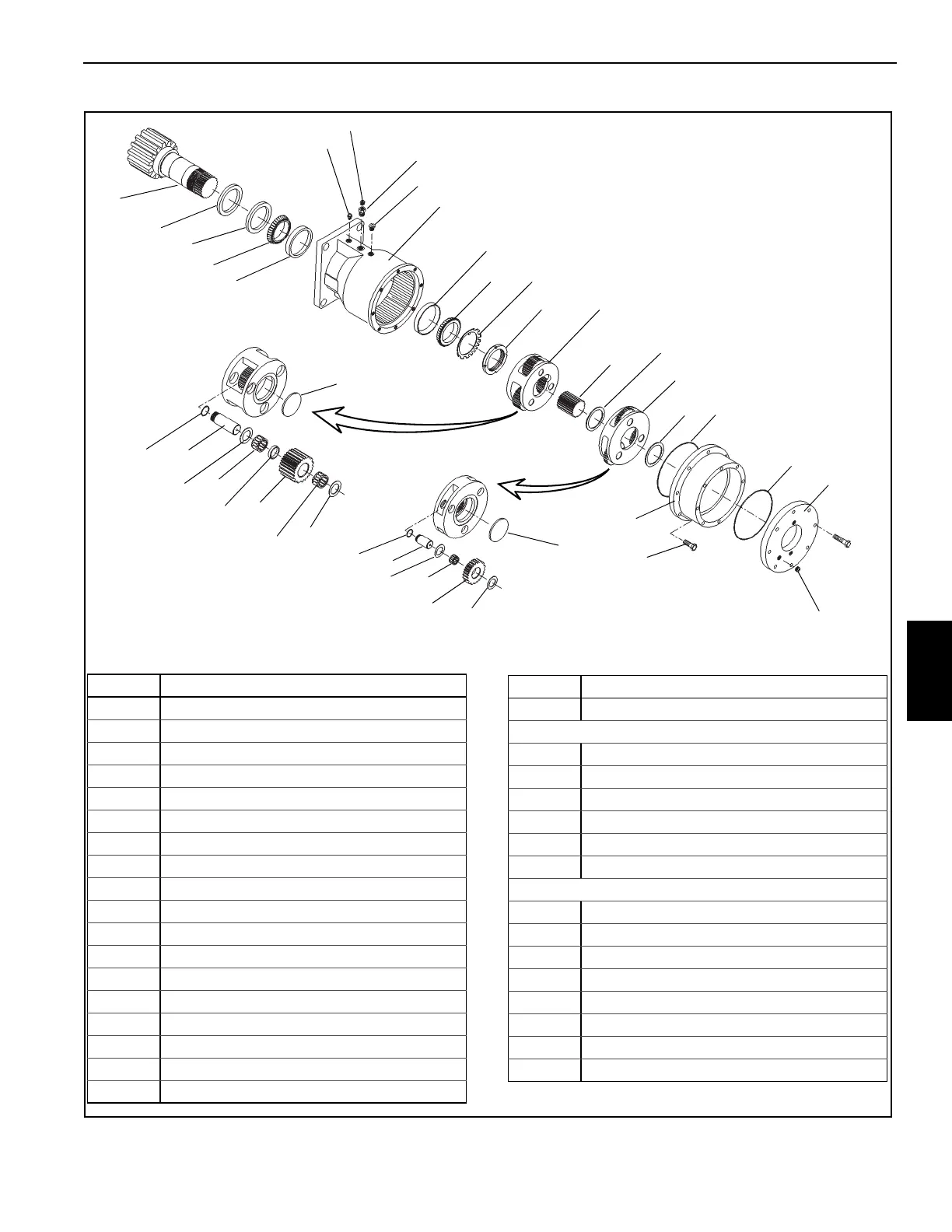

FIGURE 6-2
15
30
30
28
29
28
27
26
Item Component
1 Gearbox Housing
2 Pinion Shaft
3 Outboard Seal
4 Outboard Bearing
5 Outboard Bearing Race
6 Inboard Bering Race
7 Inboard Bearing
8 Lock Washer
9 Locknut
10 Output Planetary Assembly
11a Race (Input Planetary Gear)
11b Race (Output Planetary Gear)
12 Output Sun Gear
13 Input Planetary Assembly
14 Brake Housing O-Ring
15 Brake Assembly
16 Brake Mounting Capscrews (8)
17 Drain Plug
18 Brake End Plate
Output Planetary Gear Set
19 Retaining Washer
20 Output Planetary Pin
21 Washer
22 Needle Bearing
23 Spacer
24 Output Planet Gear
Input Planetary Gear Set
25 Input Planet Gear
26 Retaining Washer
27 Input Planetary Pin
28 Washer
29 Needle Bearing
30 Plate
31 V-Seal
32 End Plate O-Ring
Item Component
Output Planetary Gear Set
Input Planetary Gear Set
Breather
Fill Plug
Level Plug
17
31
32
8741
18
