Manitowoc National Crane NBT30H-2 Service Manual

CRANE INSTALLATION NBT30H-2 SERVICE MANUAL
9-20 03-20-2019 Control # 613-06
Install the Boom Rest
Insert the boom rest into the brackets on back of the T-box
and secure with the 5/8 inch grade 5 bolts (Figure 9-16).
Install the Rear Bumper
Bolt the rear bumper to the truck frame with the 3/4 inch
grade 5 bolts (Figure 9-16). Ground clearance should be
from 50.5 - 58.4 cm (20 - 23 in).

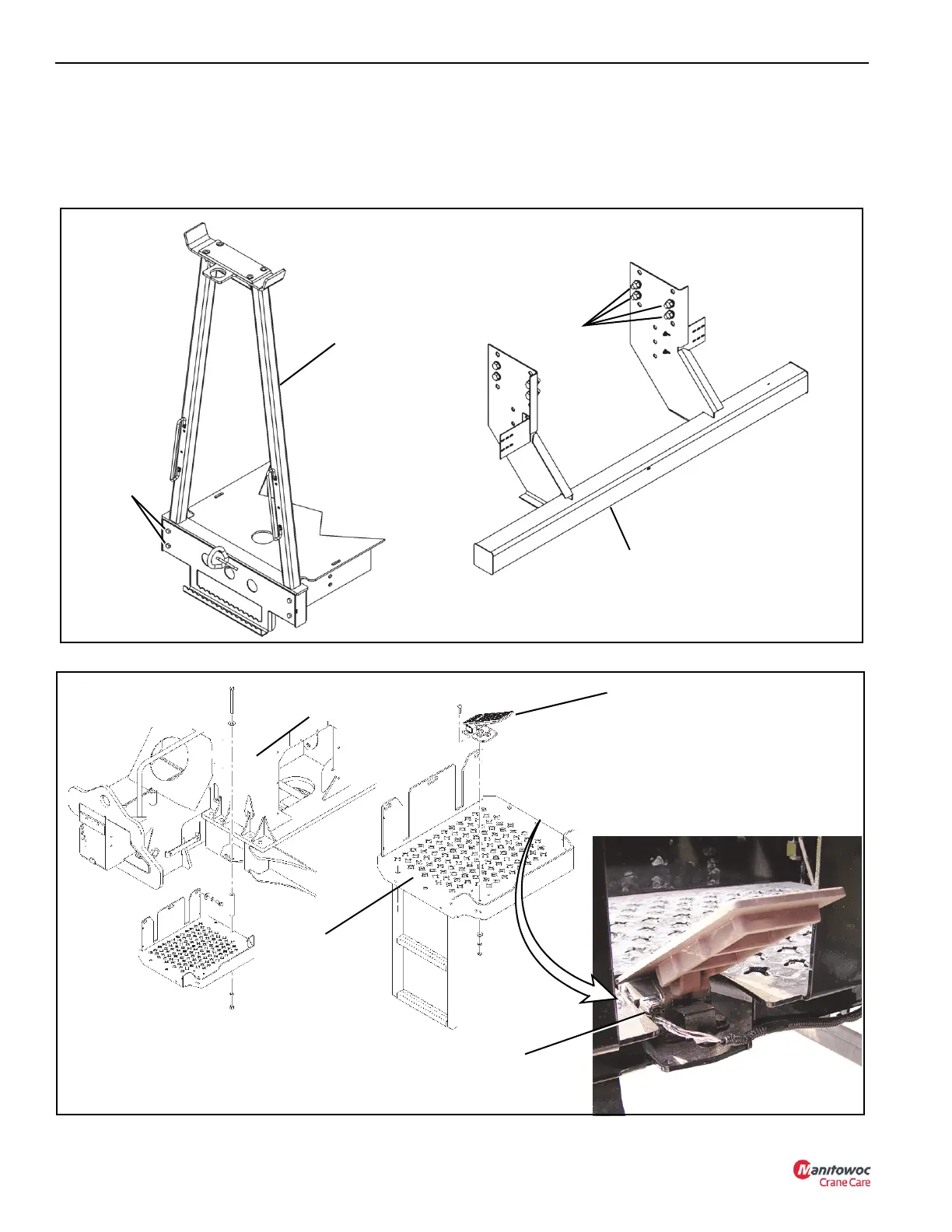

FIGURE 9-16
5/8 inch
Grade 5 Bolts
3/4 inch
Grade 5 Bolts
Note: Allow a 50.5 - 58.4
cm (20 to 23 in) ground
clearance.
Boom Rest
Bumper
Foot
Throttle
FIGURE 9-17
Turret
Operator’s
Platform
Throttle
Connector
8746
