Outrigger Beam Removal
1. Check that the jack cylinder is fully retracted and the
float removed.
2. On the jack cylinder end of the beam, remove the side
wear pad set screw (Figure 7-2) in the outrigger box and
back off the side wear pad (Figure 7-2).
3. Extend the outrigger beam slightly so that a lifting strap
(Figure 7-4) can be attached to the outrigger beam.
NOTE: To prevent nicks and gouges to the bottom of the
outrigger beam, do not attach chains to the
outrigger beam.
6
4
9
10
1
7
5

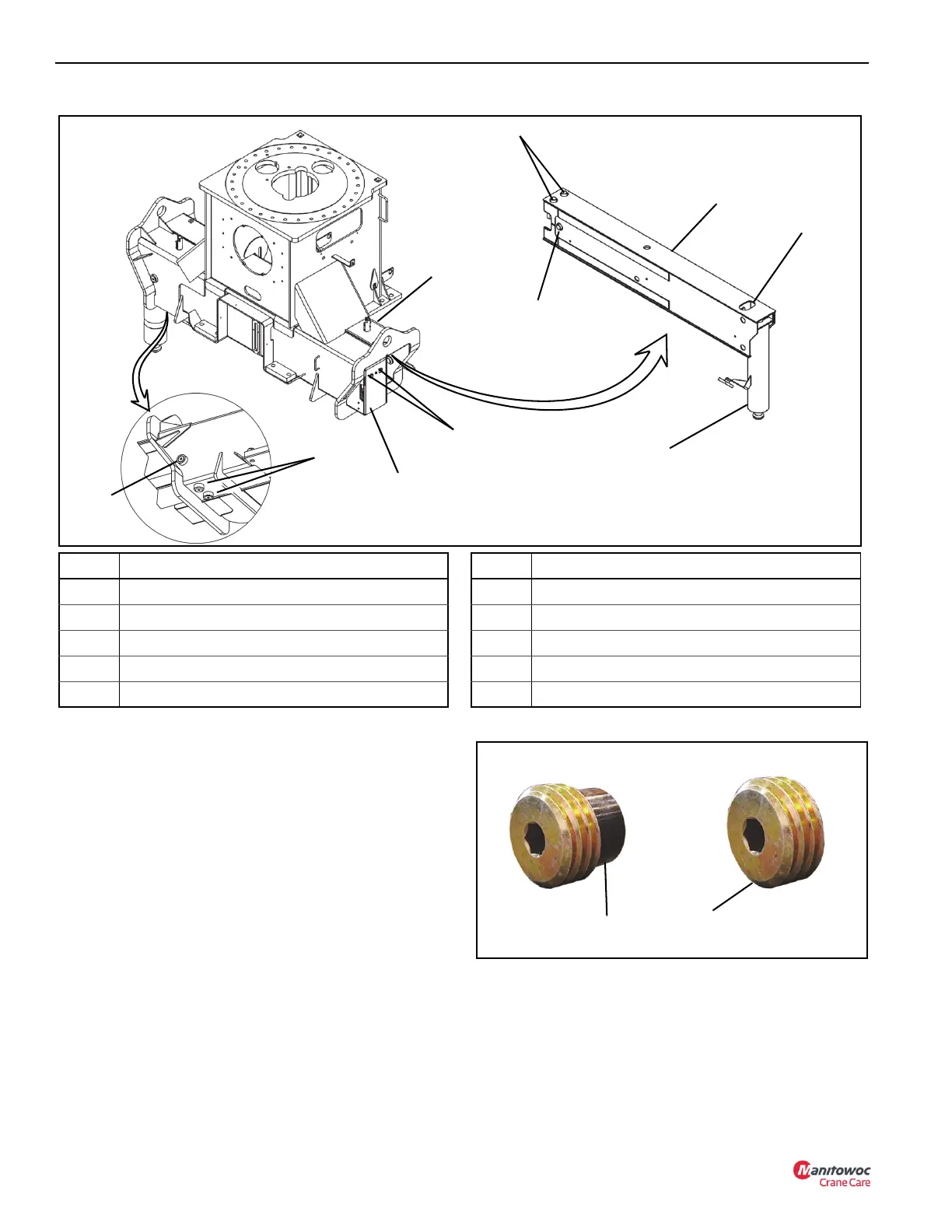

FIGURE 7-1
3
2
8
Item Component
1 Stabilizer Cylinder
2 Outrigger Box Side Wear Pad (One Side)
3 Outrigger Box Bottom Wear Pads
4 Outrigger Box
5 Outrigger End Plate (Outrigger Box)
6 Extension Cylinder Bolts
7 Outrigger Beam Top Wear Pads
8 Outrigger Beam Side Wear Pad (Both Sides)
9 Outrigger Beam
10 Access Hole (Outrigger Beam)
Item Component
FIGURE 7-2
Wear Pad
Wear Pad
Set Screw
