ELECTRIC SYSTEM NBT30H-2 SERVICE MANUAL
3-6 03-20-2019 Control # 613-06
MICRO RELAY/FUSE BLOCK
There is one relay/fuse block located in the fuse
compartment (Figure 3-3) on the passenger side of operator
control console. Loosen the wing nut and remove the access
panel to gain access to the fuse compartment, RCL master
module, computer interface connector and the RCL override
keyswitch. The optional radio remote module is stacked
directly behind the RCL master module mounting.

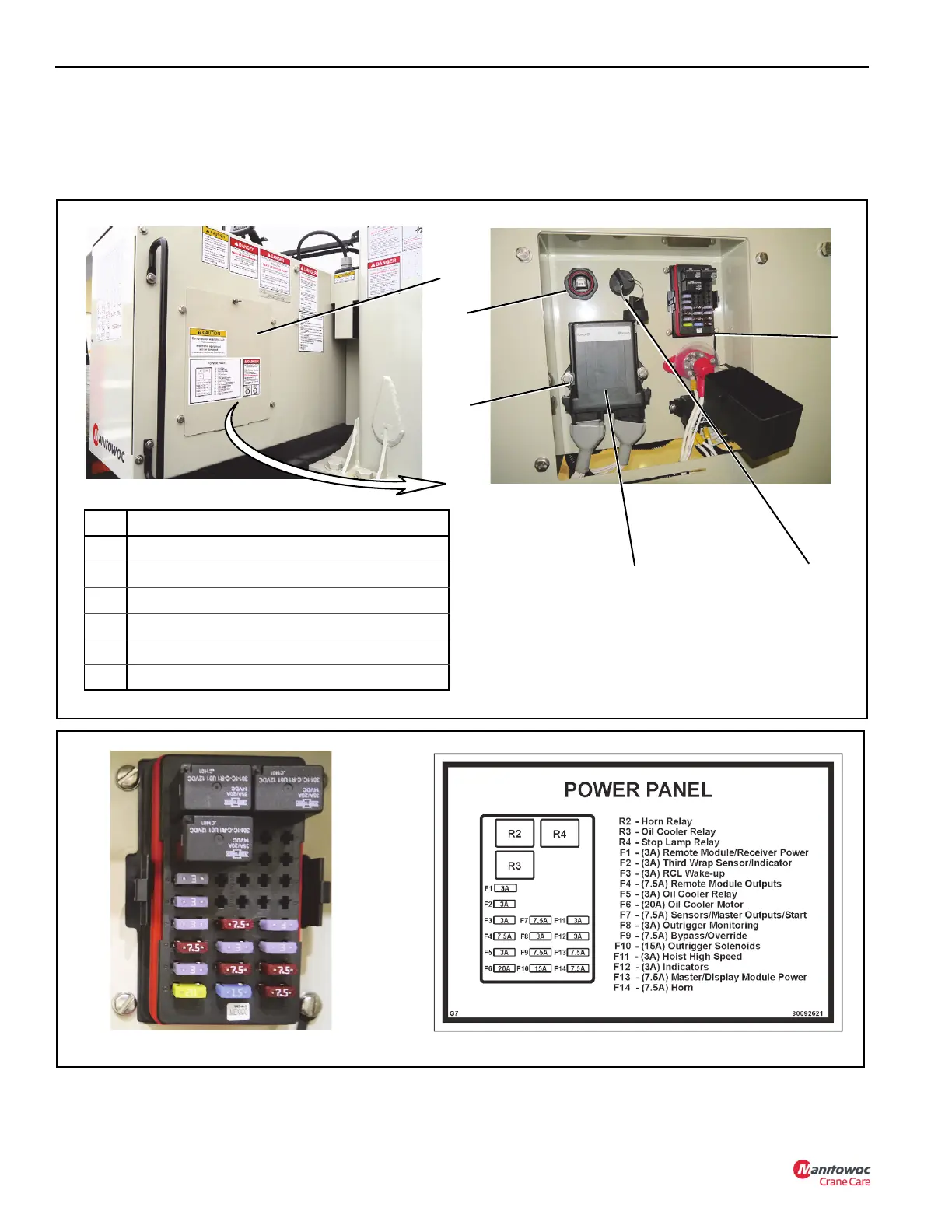

FIGURE 3-3
1
Item Component
1 Access Panel
2 RCL Master Module
3 Fuse Compartment
4 Computer Interface Connector
5 RCL Override Keyswitch
6 Radio Remote Module (Optional)
5
3
2
4
8703-1
8703-5
6
FIGURE 3-4
8760
8703-6
