CRANE INSTALLATION NBT30H-2 SERVICE MANUAL
9-18 03-20-2019 Control # 613-06
Attach the RSOD
1. Position the RSOD on the truck frame so that there is
about 30.4 cm (12 in) between the rear tire to the front of
the RSOD Figure 9-14. This should be enough
clearance for mounting the mud flaps.
2. Check for interference with truck frame rivets or bolt
holes.
3. Make sure that the RSOD stabilizer is vertical and the
foot is 27.9 cm (11 in) above the ground.
4. Use the RSOD brackets as a template and drill six 3/4 in
holes in the truck frame for each bracket.
5. Bolt the RSOD brackets to the truck frame with the 3/4 x
2-1/2 inch grade 8 bolts. For torque values, refer to
Fasteners and Torque Values, page 1-12.
6. Clamp the anchor bars to the RSOD mounting bracket.
7. Use the holes in the brackets as a template and drill
three 5/8 inch holes in each anchor bar.
8. Loosely bolt the anchor bars to the RSOD mounting
bracket.
9. Clamp the upper brackets to the anchor bars.
10. Position the upper brackets on the T-box and tack weld
in place.
11. Drill three holes in the anchor bar using the upper
bracket holes as a template.
12. Remove the anchor bars and weld the upper brackets
and gussets in place.
13. Bolt the anchor bars to the RSOD brackets and upper
brackets with the 5/8 in grade 8 mounting bolts. For
torque values, refer to Fasteners and Torque Values,
page 1-12. See page 9-25 for RSOD hydraulic line
hookup.

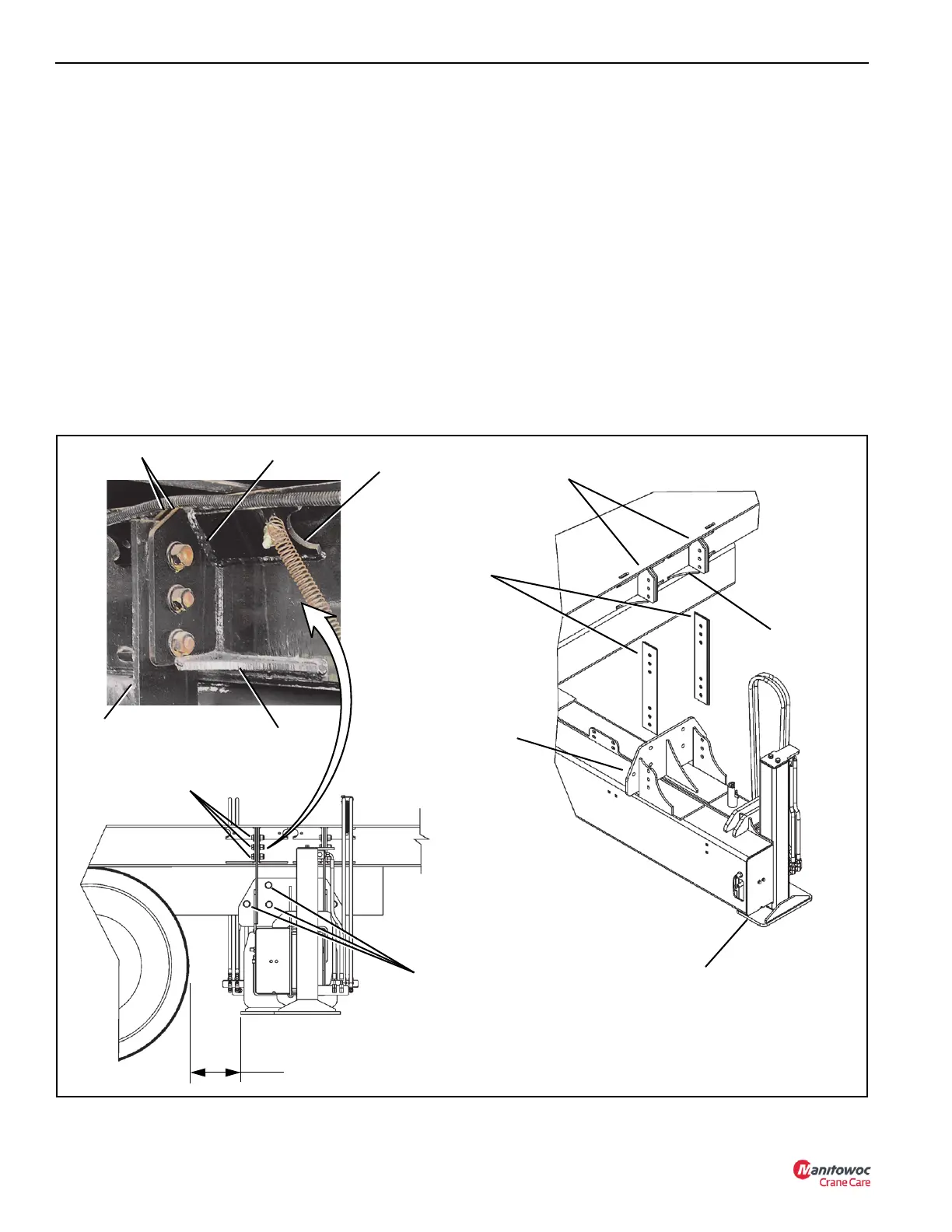

FIGURE 9-14
Upper Brackets
Upper Brackets
Gusset
Anchor Bar
Anchor Bars
RSOD
Mounting
Brackets
The foot needs to be 27.9 cm
(11 in) above the ground with
the stabilizer retracted.
Allow enough clearance to
mount mud flaps
Gusset
3/4 inch Grade 8 Bolts for the
RSOD Anchor Brackets. For
torque values, refer to Fasteners
and Torque Values, page 1-12.
Weld
5/8 inch Grade 8 Bolts.
For torque values,
refer to Fasteners and
Torque Values,
page 1-12.
Gusset
Note: All welds must
be grade 70 or better.
To Next Page
