National Crane 03-20-2019 Control # 613-06 9-17

NBT30H-2 SERVICE MANUAL CRANE INSTALLATION

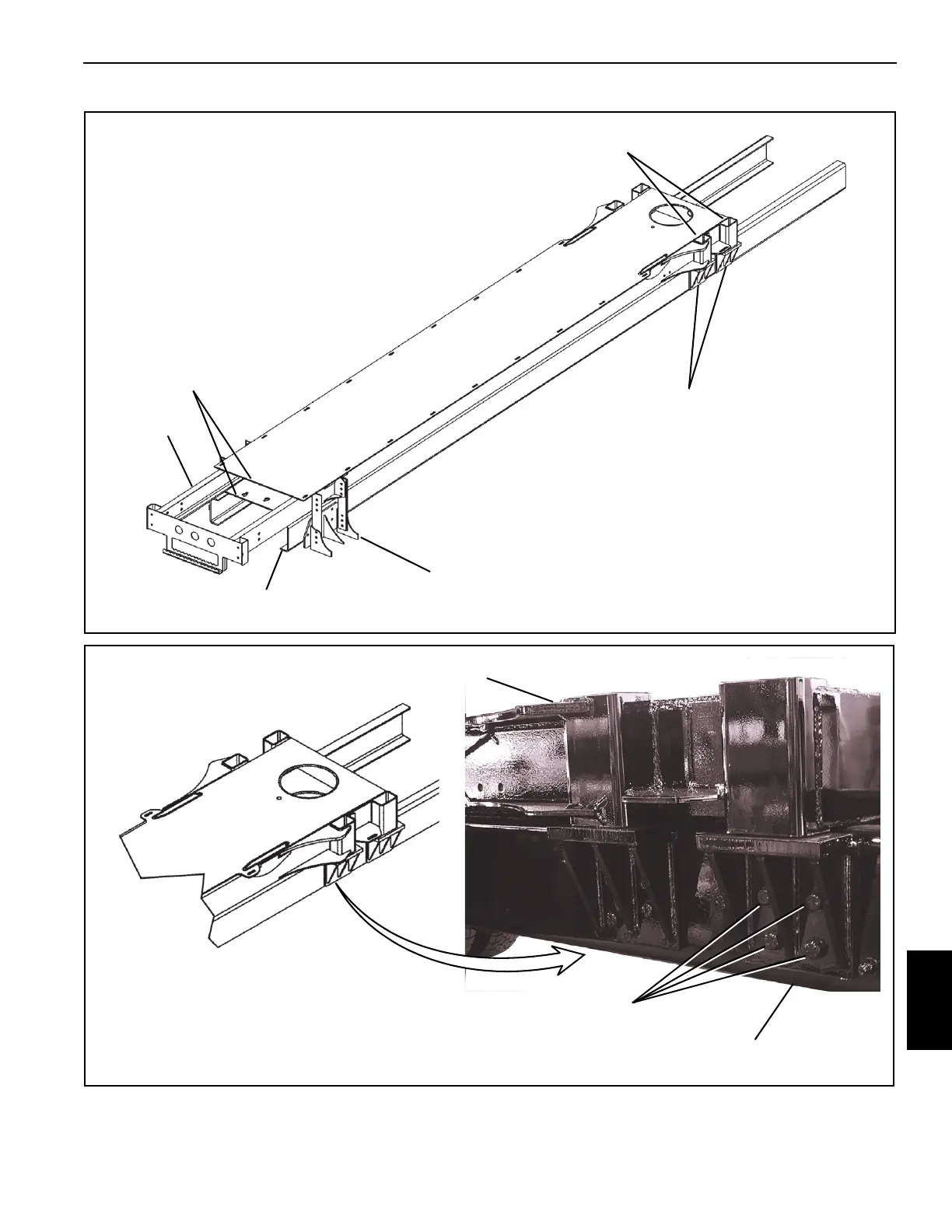

FIGURE 9-12

Mounting Brackets

for RSOD Outrigger

Anchor Brackets

for the T-Box and

Frame

Tubes for the

Anchor Bolts

T-Box

Reinforcing

Plates

Note: The reinforcing plates

must extend out past the

RSOD mounting brackets.

Truck Frame

3/4 inch Grade 8 Bolts for the Crane Anchor

Brackets. For torque values, refer to

Fasteners and Torque Values, page 1-12.

FIGURE 9-13

Truck Frame

T-Box
