CRANE INSTALLATION NBT30H-2 SERVICE MANUAL
9-22 03-20-2019 Control # 613-06
Connect the Slew Potentiometer
Connect the slew potentiometer located in the turret
(Figure 9-21) to the RCL system. See Slew Potentiometer
Adjustment, page 6-13 for a detailed description of the slew
potentiometer calibration and installation.
Connect the Electrical Interface
Connections to the truck electrical system is as follows:
• Run the T-box interface harness to the truck cab and
secure.
NOTE: Keep the harness away from the drive line and
exhaust system.
• Connect the truck interface harness as shown in
Figure 9-22.
NOTE: The T-box wiring harness contains three wires for
the EET connection. The number of wires required
depends on the truck EET system. Consult the
truck manufacture for EET connection.
• Run the battery harness to the truck battery and connect
as shown in Figure 9-22.

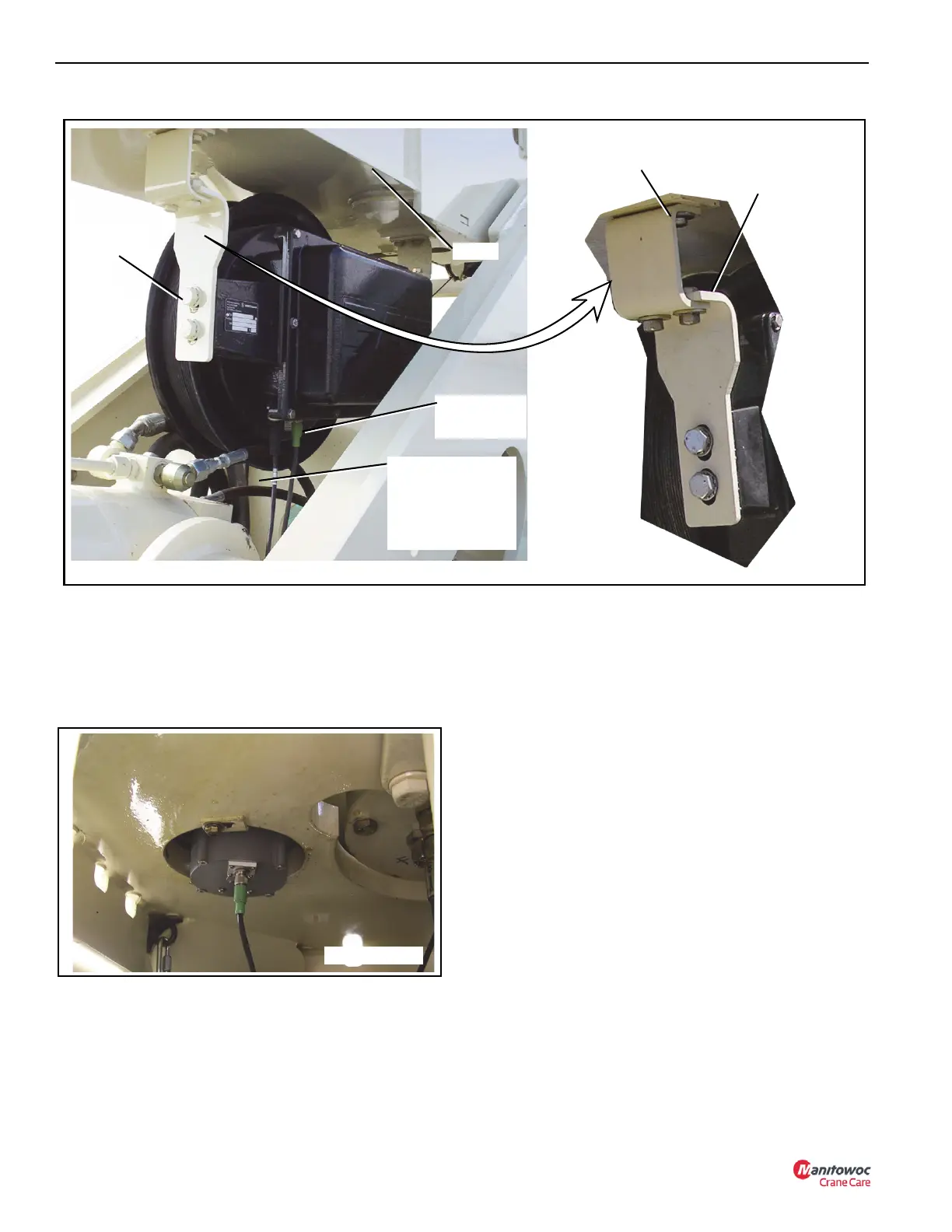

Mount with the
Connectors on
the Bottom
RCL
Mounting
Clearance between
the RCL reel and
adjacent components
must be adequate so
that no damage occurs
when the boom is fully
lowered.
Boom
The bracket attached
to the RCL reel must
be mounted on the top
side of the C-bracket
as shown
C-bracket
FIGURE 9-20
FIGURE 9-21
