Manitowoc National Crane NBT30H-2 Service Manual

HYDRAULIC SYSTEM NBT30H-2 SERVICE MANUAL
2-18 03-20-2019 Control # 613-06
Retract
Relief
Extend
Relief

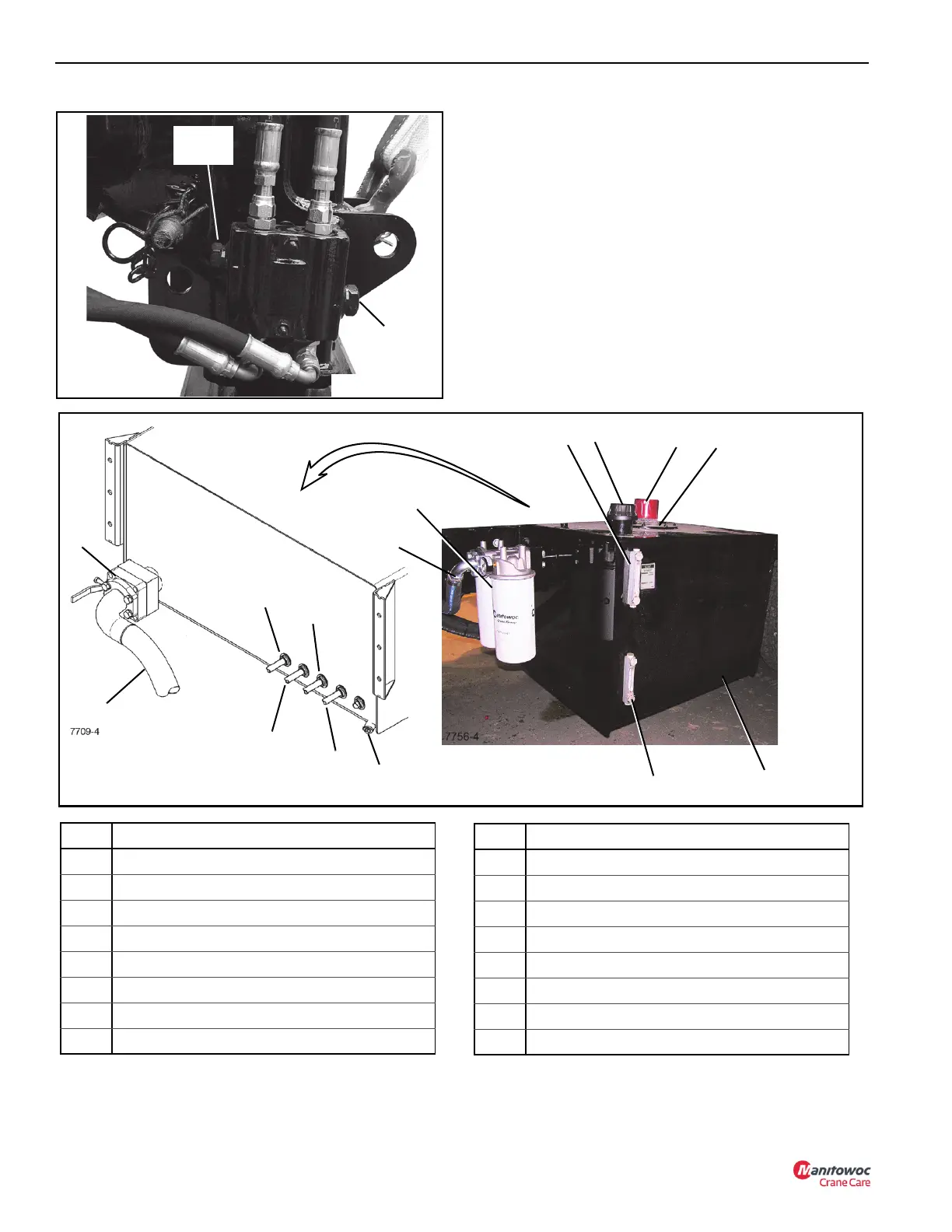

FIGURE 2-10
FIGURE 2-11
Item Component
1 Hydraulic Reservoir
2 Hydraulic Oil Level Gauge
3 Hydraulic Temperature Gauge
4 Fill Cap
5 Access Cover
6 Shutoff Valve
7 Spin-on Filters
8 Return Line
9 Suction Line
10 Sump Line from Directional Control Valve
11 Pump Manifold Case Drain
12 Outrigger Return
13 Case Drain from Pump
14 Drain Plug
15 Temperature Sensor
16 Breather
Item Component
1
10
3
2
4
6
9
7
8
16
11
12
13
14
5
