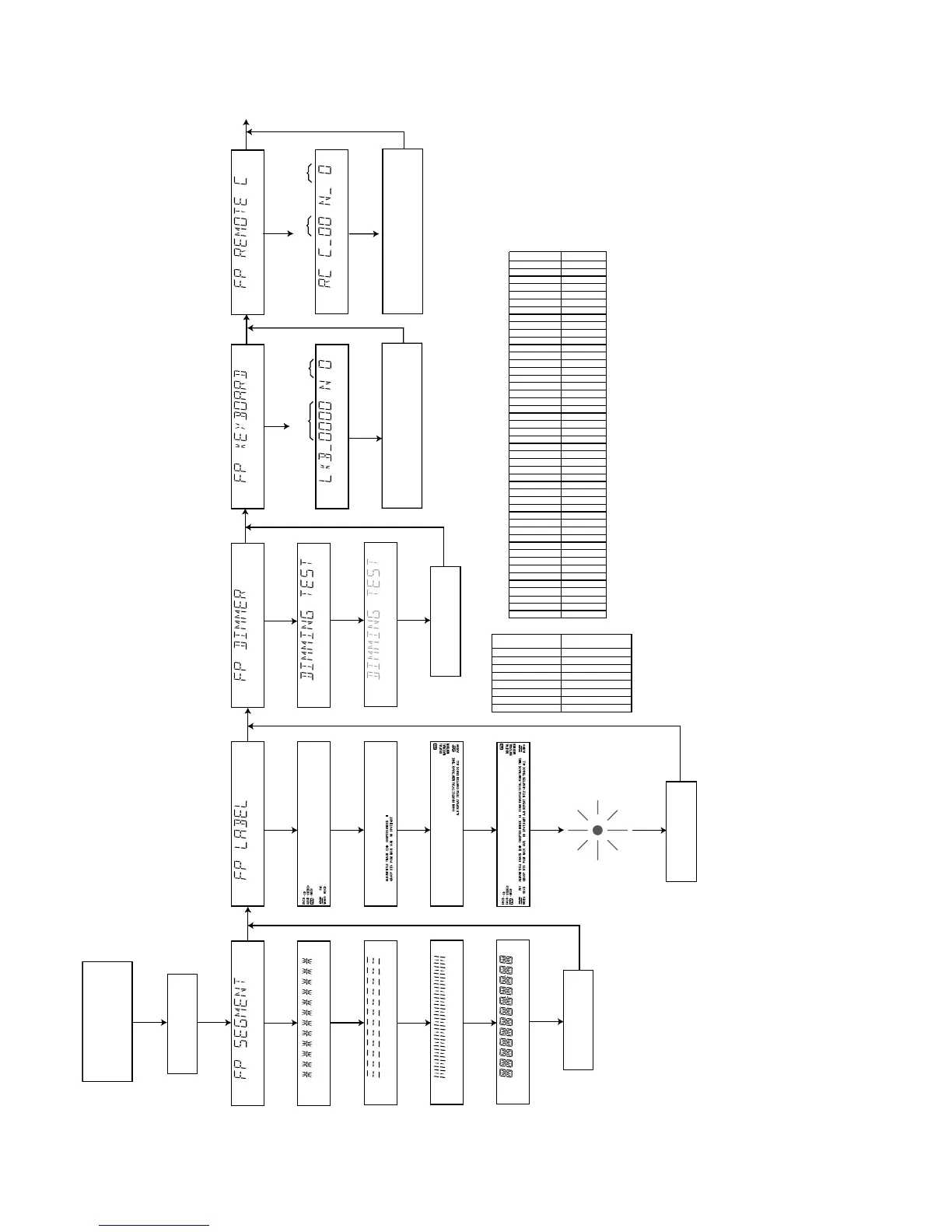

Figure 5-2
Hold 2 keys
<OPEN/CLOSE>
+ <STOP>
simultaneously pressed and switch player on.
Switch player off.
FRONTPANEL TEST
<NEXT> <NEXT>
<NEXT>
<NEXT>
<NEXT>
PRESS
<PLAY>
TO START TEST
PRESS
<PLAY>
IF OK
PRESS
<NEXT>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<NEXT>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<NEXT>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<NEXT>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<NEXT>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<NEXT>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<NEXT>
TO ABORT
PRESS
<PLAY>
IF OK
PRESS
<PREV>
IF NOT OK
PRESS
<PLAY>
IF OK
PRESS
<PREV>
IF NOT OK
PRESS
<PLAY>
IF OK
PRESS
<PREV>
IF NOT OK
PRESS
<PLAY>
TO START TEST
PRESS
<PLAY>
TO START TEST
PRESS
<PLAY>
TO START TEST
PRESS ALL KEYS AT LEAST ONCE SEE TABLE FOR KEY CODES
HEXADECIMAL
KEY CODE
XX TIMES PRESSED
TO EXIT TEST: PRESS
<PLAY>
MORE THAN 1S IF TEST IS OK
PRESS
<PREV>
MORE THAN 1S IF TEST IS NOT OK
FRONT KEY NAME
PLAY
PAUSE
STOP
OPEN/CLOSE
SOUND MODE
REPEAT
PREV
NEXT
FRONT KEY CODE
0200
0400
0800
0008
1000
4000
0004
0002
LED
PRESS
<PLAY>
TO START TEST
PRESS AT LEAST ONE KEY ON THE REMOTE CONTROL SEE TABLE FOR RC KEY CODES
TO EXIT TEST: PRESS ONE OF FOLLOWING KEYS ON THE LOCAL KEYBOARD PRESS
<PLAY>
IF TEST IS OK
PRESS
<PREV>
IS NOT OK
DIGITAL BOARD TEST
HEXADECIMAL
RC-KEY-CODE
XX TIMES PRESSED
RC KEY NAME
TV POWER
SACD POWER
STOP
SOUND MODE
PLAY
REVERSE
PAU S E
SLOW
RC KEY CODE
0C
50
ONLY FOR TV
31
2C
29
30
22
28
21
D7
20
54
0F
58
5A
5B
59
83
5C
F7
85
00
01
02
03
04
05
06
07
08
09
C9
CA
FB
1C
4B
4E
13
48
3B
2A
FORWARD
PREVIOUS
RESUME
NEXT
MENU DISC
MENU SYSTEM
UP
LEFT
RIGHT
DOWN
RETURN
OK
ZOOM
ANGLE
0
1
2
3
4
5
6
7
8
9
T
C
FTS
SHUFFLE
SUBTITLE
AUDIO
DIM
DISPLAY
REPEAT A-B
SCAN
VOL +
VOL -
CH +
CH -
MUTE
ONLY FOR TV
ONLY FOR TV
ONLY FOR TV
ONLY FOR TV
ONLY FOR TV
