Marantz SA12 - Page 42

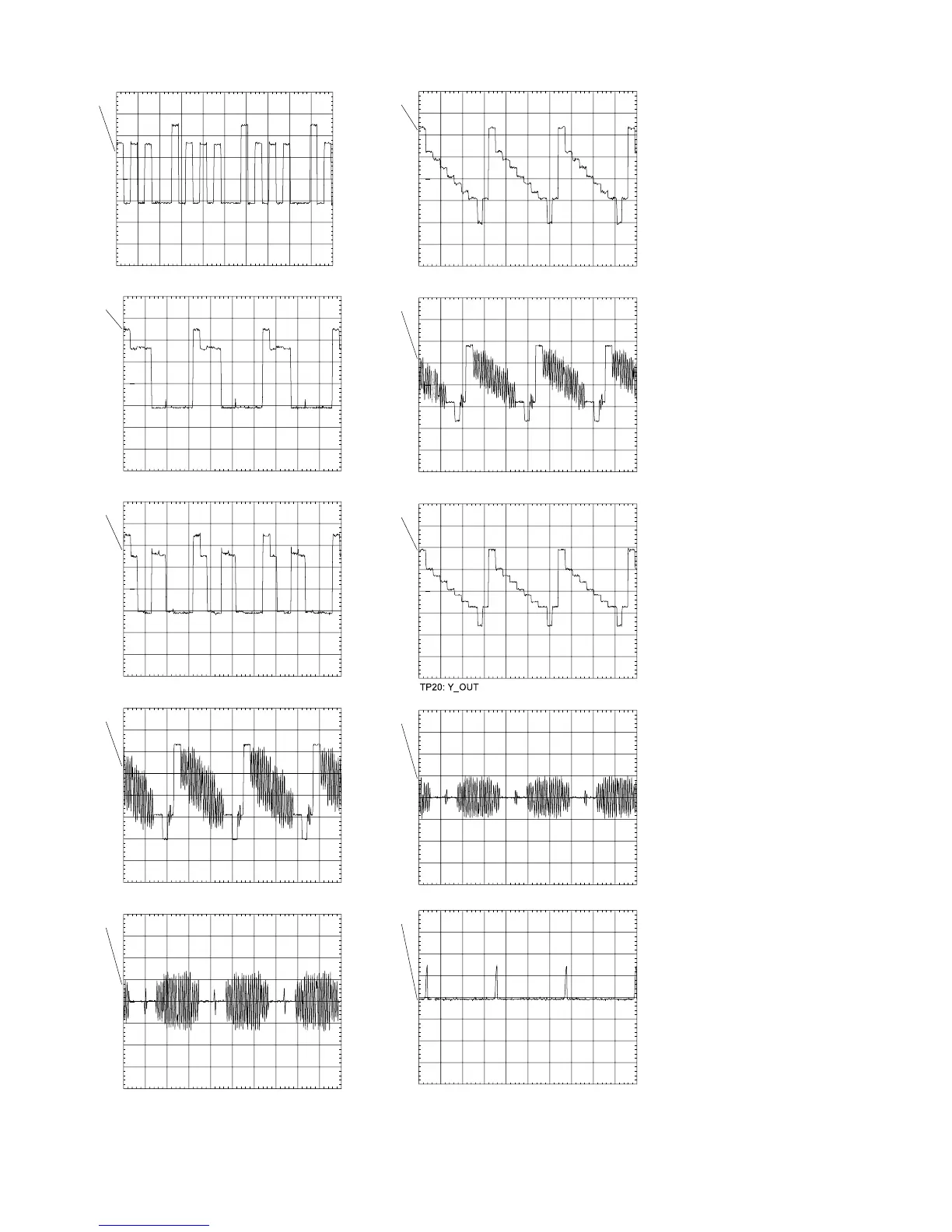

40
PM3392A
ch1
CH1 200mV~ MTB20.0us ch1+
1
TP 1 : video B
PM3392A
ch1
CH1 200mV~ MTB20.0us ch1+
1
TP 2 : video G
PM3392A
ch1
CH1 200mV~ MTB20.0us ch1+
1
TP 3 : video R
PM3392A
ch1
CH1 200mV~ MTB20.0us ch1+
1
TP 4 : CVBS
PM3392A
ch1
CH1 200mV~ MTB20.0us ch1+
1
TP 5 : C_ENC
PM3392A
ch1
CH1 200mV~ MTB20.0us ch1+
1
TP 6 : Y_ENC
PM3392A
ch1
CH1 500mV~ MTB20.0us ch1+
1
TP 19 : CVBS_OUT
PM3392A
ch1
CH1 50mV~ MTB20.0us ch1+
1
PM3392A
ch1
CH1 500mV~ MTB20.0us ch1+
1
TP 21: C_OUT
PM3392A
ch1
CH1!5.00 V~ MTB20.0us ch1+
1
TP24: HSYNC
