17.4. Torch Breakaway Signal
The torch breakaway signal is used to stop plasma and machine axis movements if the plasma torch is hit
during a cut.
For this setup, generally the torch is mounted on magnetic holders and when the torch hits something such
as a cut metal piece then the torch comes off the magnetic holders triggering a switch or sensor.

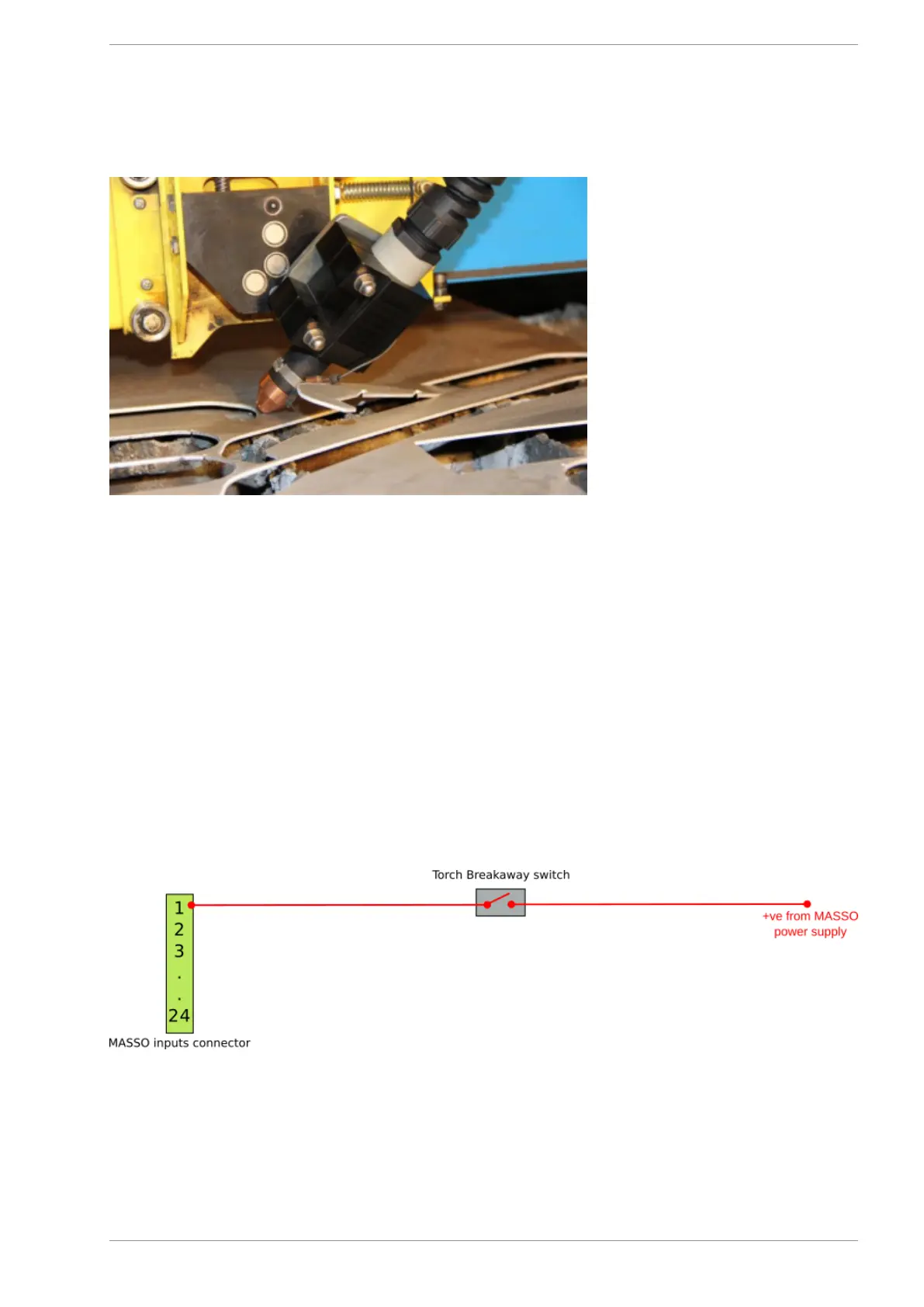

Wiring example
Below is a simple wiring example showing how to wire a torch breakaway switch. A 5 to 24 VDC signal can
be used.
v5.18 - 08 Apr,2021
www.masso.com.au Page 451 of 477

MASSO G3 Specifications

General

Storage	8GB eMMC
Connectivity	Ethernet, USB
Power Supply	24V DC
Isolated Inputs	16
Isolated Outputs	8
Relay Outputs	2
Encoder Inputs	4
Step/Direction Outputs	6
Analog Inputs	2
Digital Inputs	16
Digital Outputs	8
Humidity	10% to 90% non-condensing
Display	7-inch touchscreen
Axes	Up to 6 axes
Spindle Control	PWM, Analog, or Step/Direction
Software	MASSO OS
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Memory	1GB RAM
Output Current	500 mA per output
