11.29.1. Upgrading the Spindle encoder on MASSO G2
Upgrading the MASSO G2 encoder inputs to take up frequency up to 20kHz
INFORMATION: This procedure is for only for the MASSO G2 as the G3 is capable of frequency
up to 60Khz
By default MASSO can take up to 8kHz encoder signals, to upgrade the inputs so that they can take
up to 20kHz please follow the below procedures.
To check the maximum frequency as per your machine spindle RPM and encoder PPR, please use
THIS CALCULATOR
If the calculated frequency is under 8Khz then you do not need to do the modification.

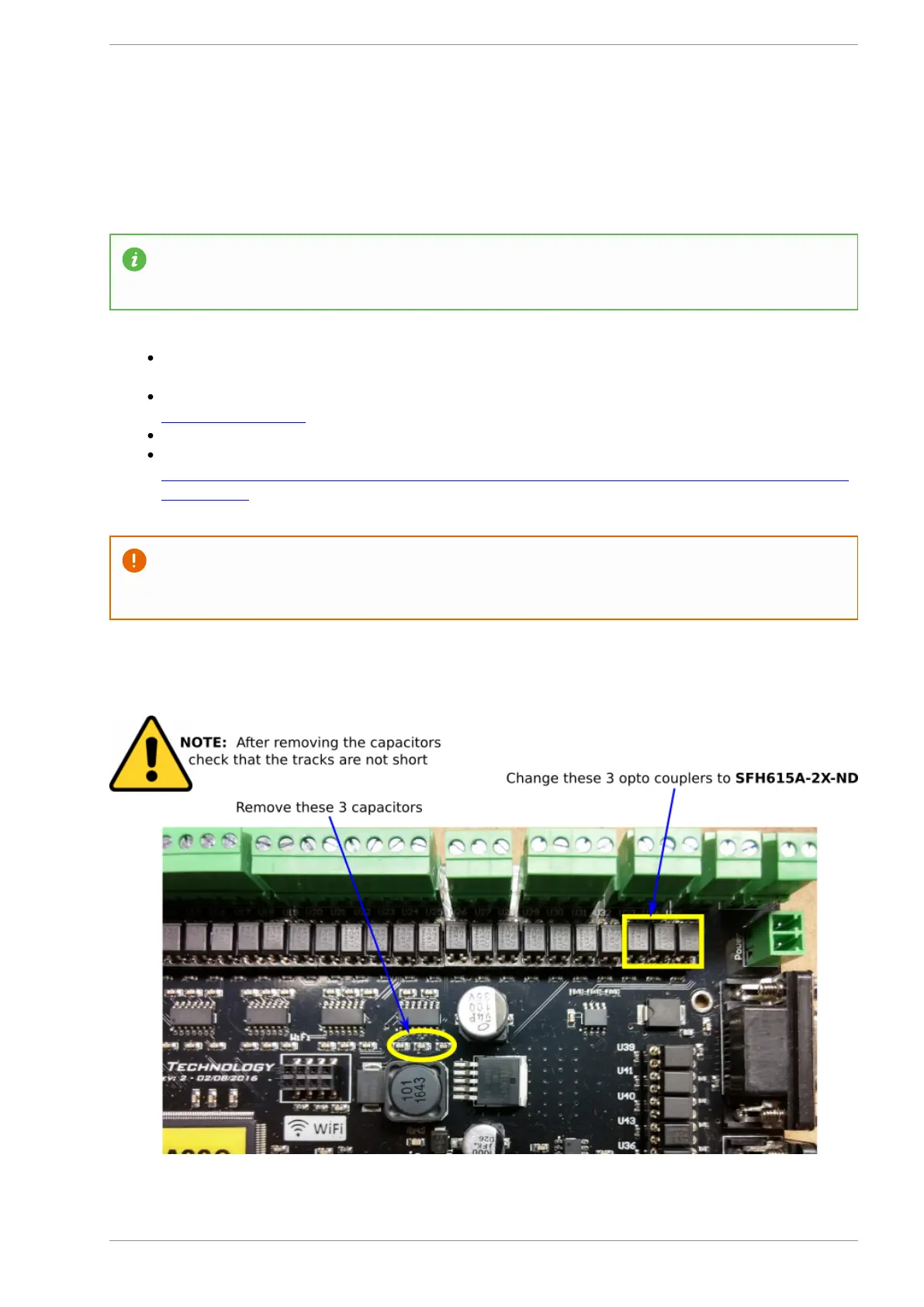

Ordering the SFH615A optocouplers:
https://www.digikey.com/product-detail/en/isocom-components-2004-ltd/SFH615A-2X/SFH615A-2X-
ND/5037024
CAUTION: If you are at all unsure of how to remove the 3 capacitors from the main board please
seek assistance from a qualified person as incorrect removal may cause damage to the main
board.
v5.18 - 08 Apr,2021
www.masso.com.au Page 384 of 477

MASSO G3 Specifications

General

Storage	8GB eMMC
Connectivity	Ethernet, USB
Power Supply	24V DC
Isolated Inputs	16
Isolated Outputs	8
Relay Outputs	2
Encoder Inputs	4
Step/Direction Outputs	6
Analog Inputs	2
Digital Inputs	16
Digital Outputs	8
Humidity	10% to 90% non-condensing
Display	7-inch touchscreen
Axes	Up to 6 axes
Spindle Control	PWM, Analog, or Step/Direction
Software	MASSO OS
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Memory	1GB RAM
Output Current	500 mA per output
