7.5. Setup Rotary Axis

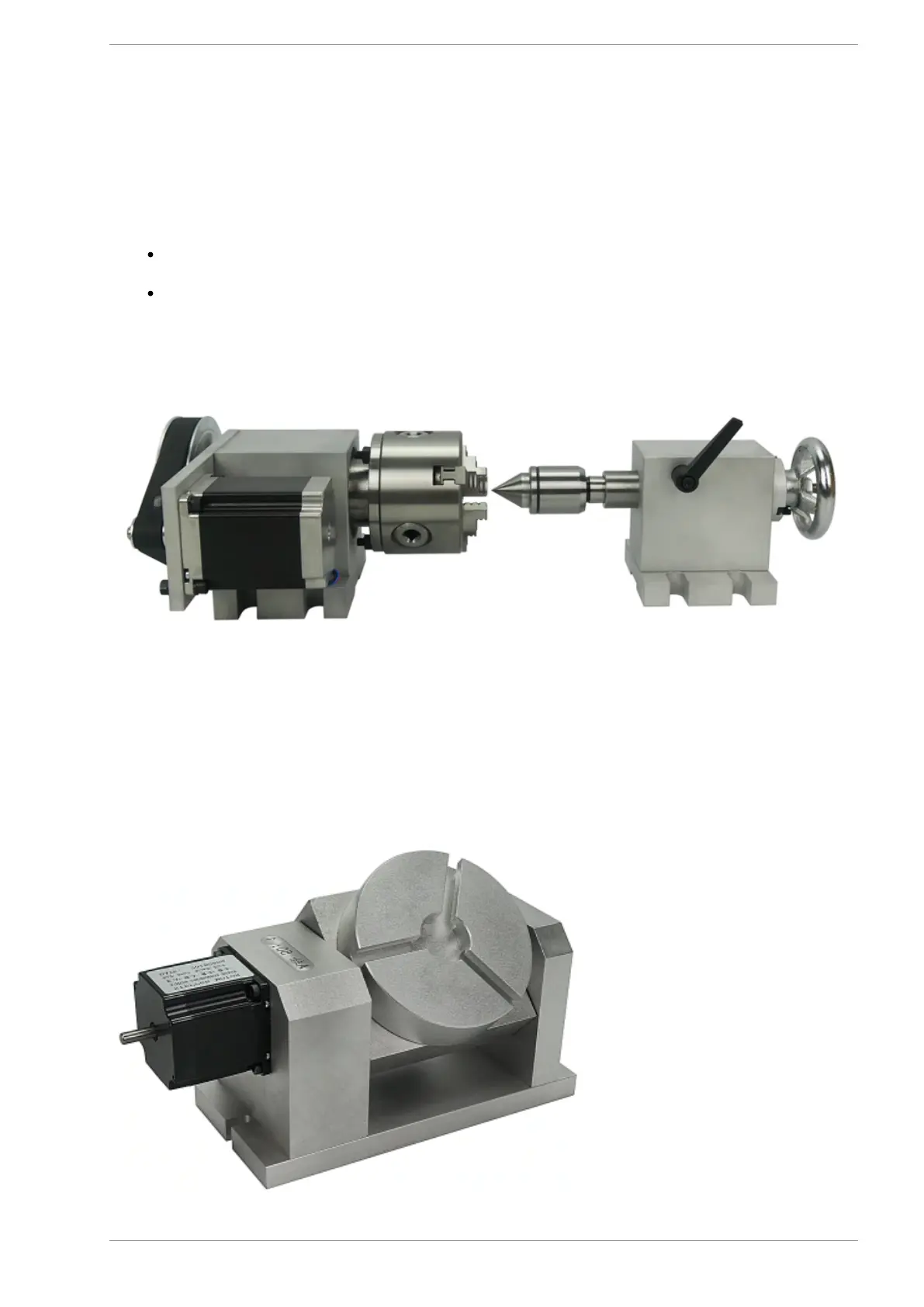

There are 2 types of rotary axis used on a CNC machine. The Maximum and minimum travel settings will
change depending on which type or rotary axis you are setting up.
The first and most common is a 4th axis traditionally use on a Mill. This is usually the A axis and it
rotates the stock in one axis only while the Z axis moves along it's length in the manner of a lathe.
The second is as part of a 5 axis machine where the A & B axis are used to move the stock in 3D
space for machining.
Rotary 4th Axis
v5.18 - 08 Apr,2021
www.masso.com.au Page 181 of 477

MASSO G3 Specifications

General

Storage	8GB eMMC
Connectivity	Ethernet, USB
Power Supply	24V DC
Isolated Inputs	16
Isolated Outputs	8
Relay Outputs	2
Encoder Inputs	4
Step/Direction Outputs	6
Analog Inputs	2
Digital Inputs	16
Digital Outputs	8
Humidity	10% to 90% non-condensing
Display	7-inch touchscreen
Axes	Up to 6 axes
Spindle Control	PWM, Analog, or Step/Direction
Software	MASSO OS
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Memory	1GB RAM
Output Current	500 mA per output
