5.2. Powering MASSO-G3
CAUTION: Semiconductor parts inside the unit can be damaged by electrostatic discharge (ESD).
When handling, care must be taken so that the devices are not damaged. Damage due to
inappropriate handling is not covered by the warranty.

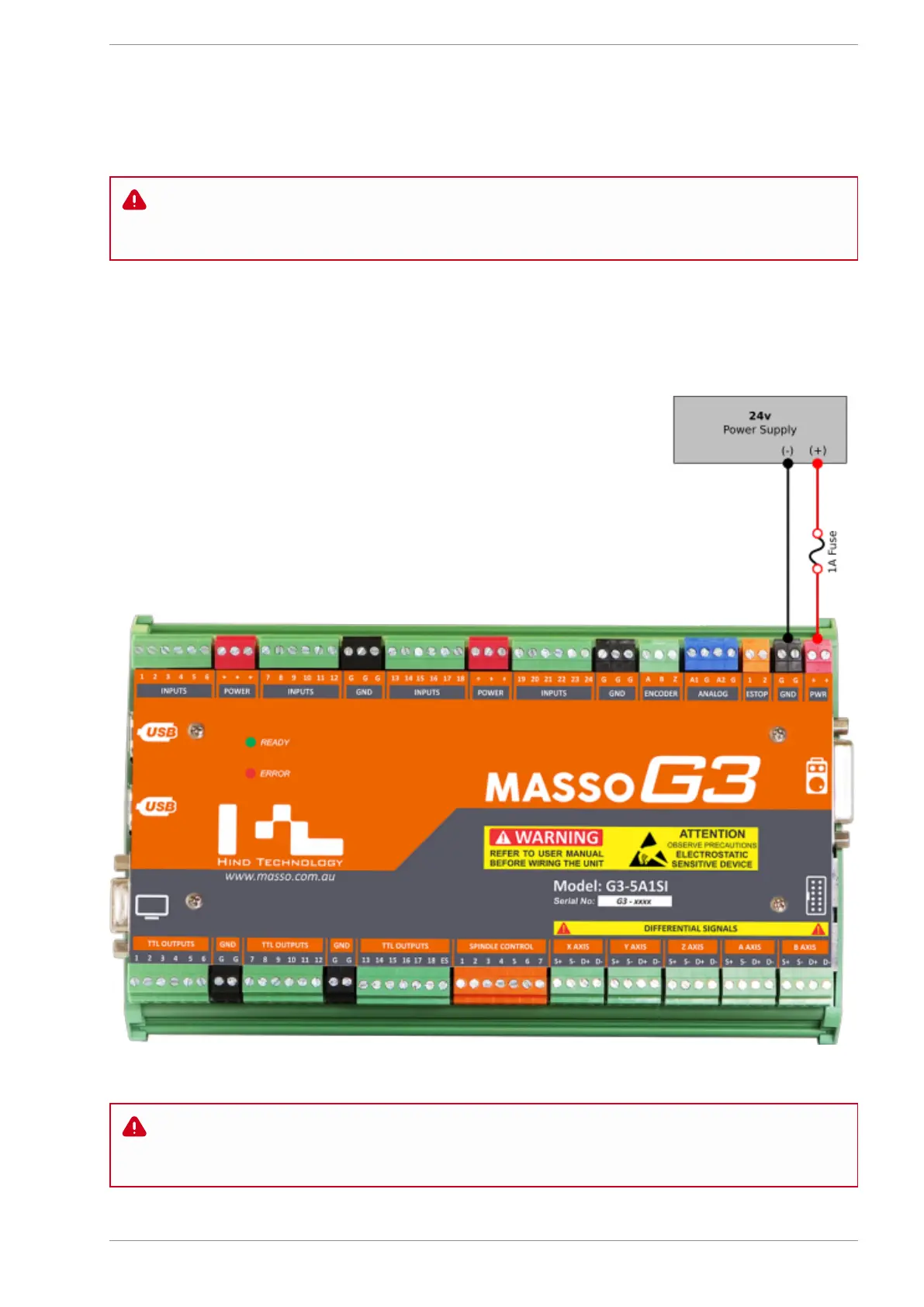

The MASSO power supply connector is located at the top-right corner of the controller as seen in the picture
below. MASSO requires a power supply between 12 and 24 VDC with a minimum of 1.5 Amps output.
MASSO will power on instantly once power is connected.
WARNING: The installation of a 1 amp fuse between your Power Supply and MASSO is required
to protect against an accidental short circuit of the auxiliary power connectors on MASSO, such an
event can damage the controller beyond repair.
v5.18 - 08 Apr,2021
www.masso.com.au Page 40 of 477
