11.2. E-Stop Wiring
WARNING: To avoid damage to equipment or hazard to personnel, the system installer should
wire the E-Stop button so that pressing the E-Stop button disables all drives and actuators on the
machine. The E-Stop relay output on the MASSO should be wired to disable the axis drives and
the spindle drive circuits.

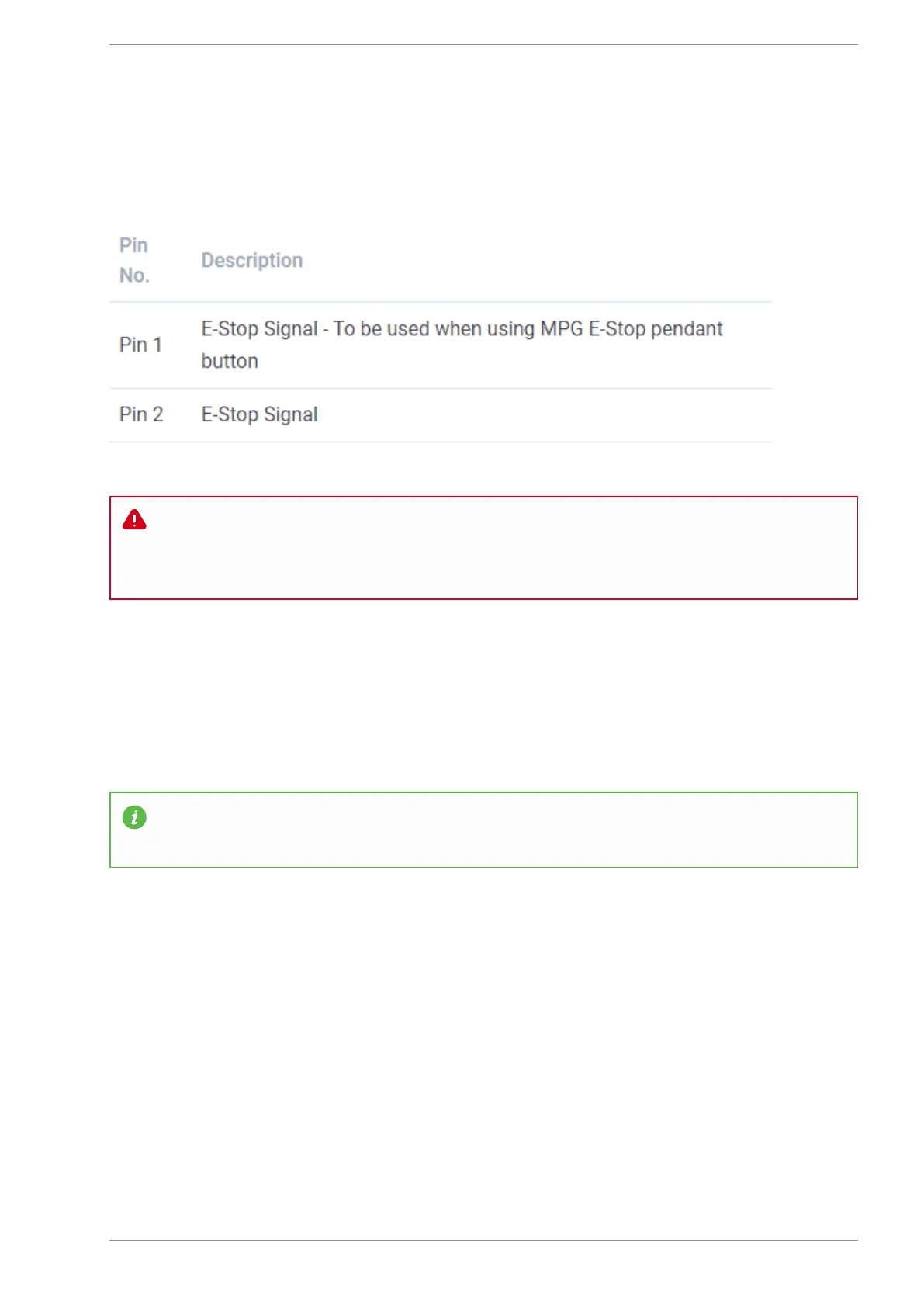

Simple one E-Stop button wiring
The below wiring example shows how to wire and use only one E-Stop button. The E-Stop button is wired to
ESTOP terminal Pin 2.
INFORMATION: In the below example E-Stop button on the MPG will not work.
v5.18 - 08 Apr,2021
www.masso.com.au Page 272 of 477

MASSO G3 Specifications

General

Storage	8GB eMMC
Connectivity	Ethernet, USB
Power Supply	24V DC
Isolated Inputs	16
Isolated Outputs	8
Relay Outputs	2
Encoder Inputs	4
Step/Direction Outputs	6
Analog Inputs	2
Digital Inputs	16
Digital Outputs	8
Humidity	10% to 90% non-condensing
Display	7-inch touchscreen
Axes	Up to 6 axes
Spindle Control	PWM, Analog, or Step/Direction
Software	MASSO OS
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Memory	1GB RAM
Output Current	500 mA per output
