Matrox Solios boards 11
Matrox Solios eCL/XCL-B
Matrox Solios eCL/XCL-B supports acquisition from one Camera Link device in
the Base configuration; the device can be a power-over Camera Link (PoCL) video
source. Matrox Solios eCL/XCL-B supports Camera Link frequencies of up to
85 MHz.
Unlike the other Matrox Solios eCL/XCL boards, Matrox Solios eCL/XCL-B does
not support the Processing FPGA option.

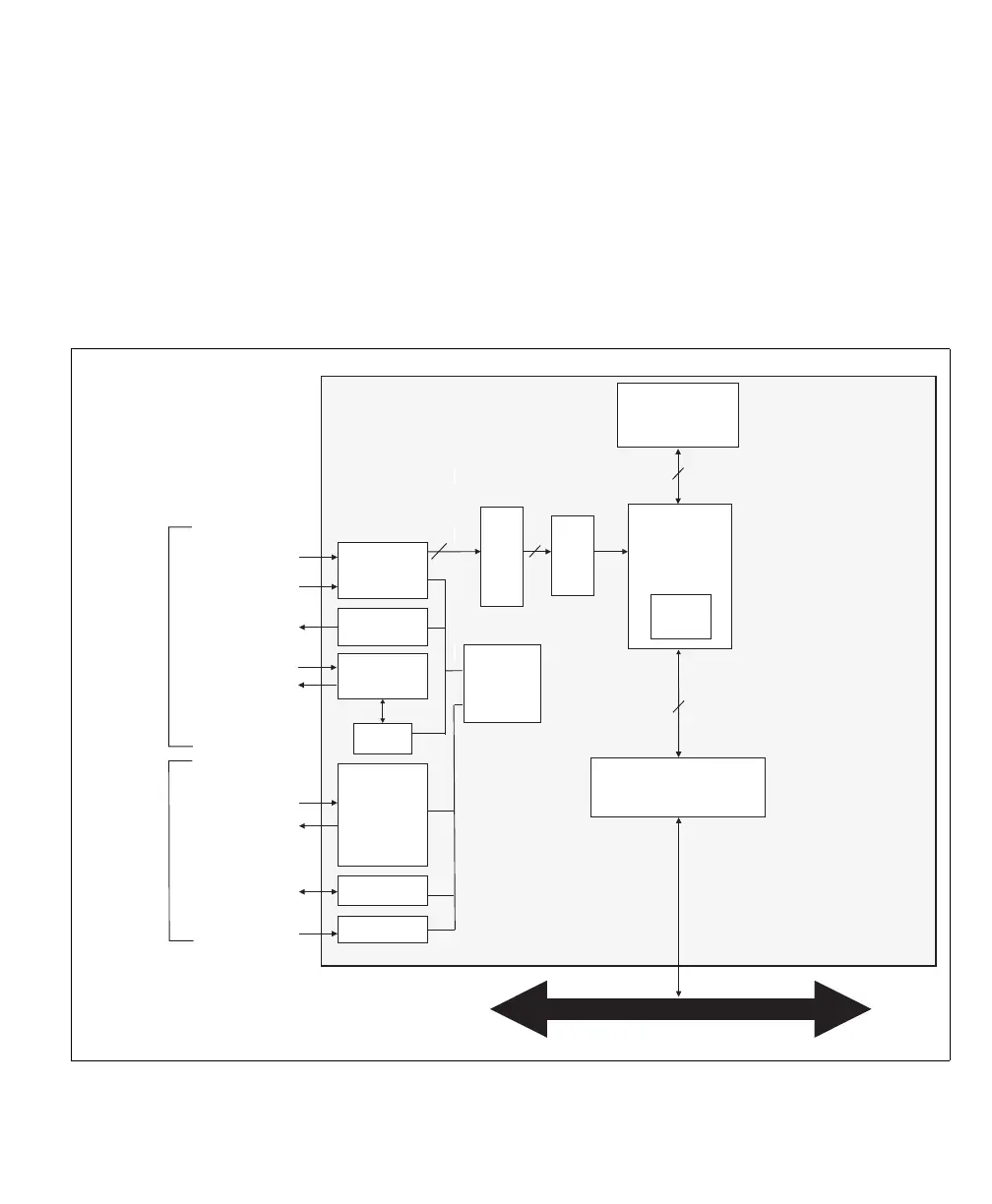

PSG
32 DDR
(up to 800 MB/s)
64-bit
(up to 528 MB/s)
PCI-X to PCI-X Bridge
Matrox Solios
eCL/XCL-B
Acquisition
memory
(32/64/128 MB)
MDR-26
connector
ChannelLink
Receiver
Clock
Data (24)
& Syncs (4)*
24
UART
LVDS
drivers
and
receivers
DB-15
connector
TTL buffers
Optocoupler
OptoAux (2)
Aux I/Os (3)
LUTs
32
Cam Ctrl (4)
LVDS
drivers
LVDS driver
& receiver
Demultiplexer
* 28 bits serialized across 4 LVDS pairs.
Video to
PCI-X
bridge
Color
space
converter
SerTC
SerTFG
Aux In (2)
Aux In (1)
Host PCI / PCI-X/PCIe bus
XCL
32-bit
(up to 264 MB/s)
eCL
5V/3.3V PCI/PCI-X (XCL)
64-bit (up to 1 GB/s)
x1 PCIe (eCL)
up to 250 MB/s
