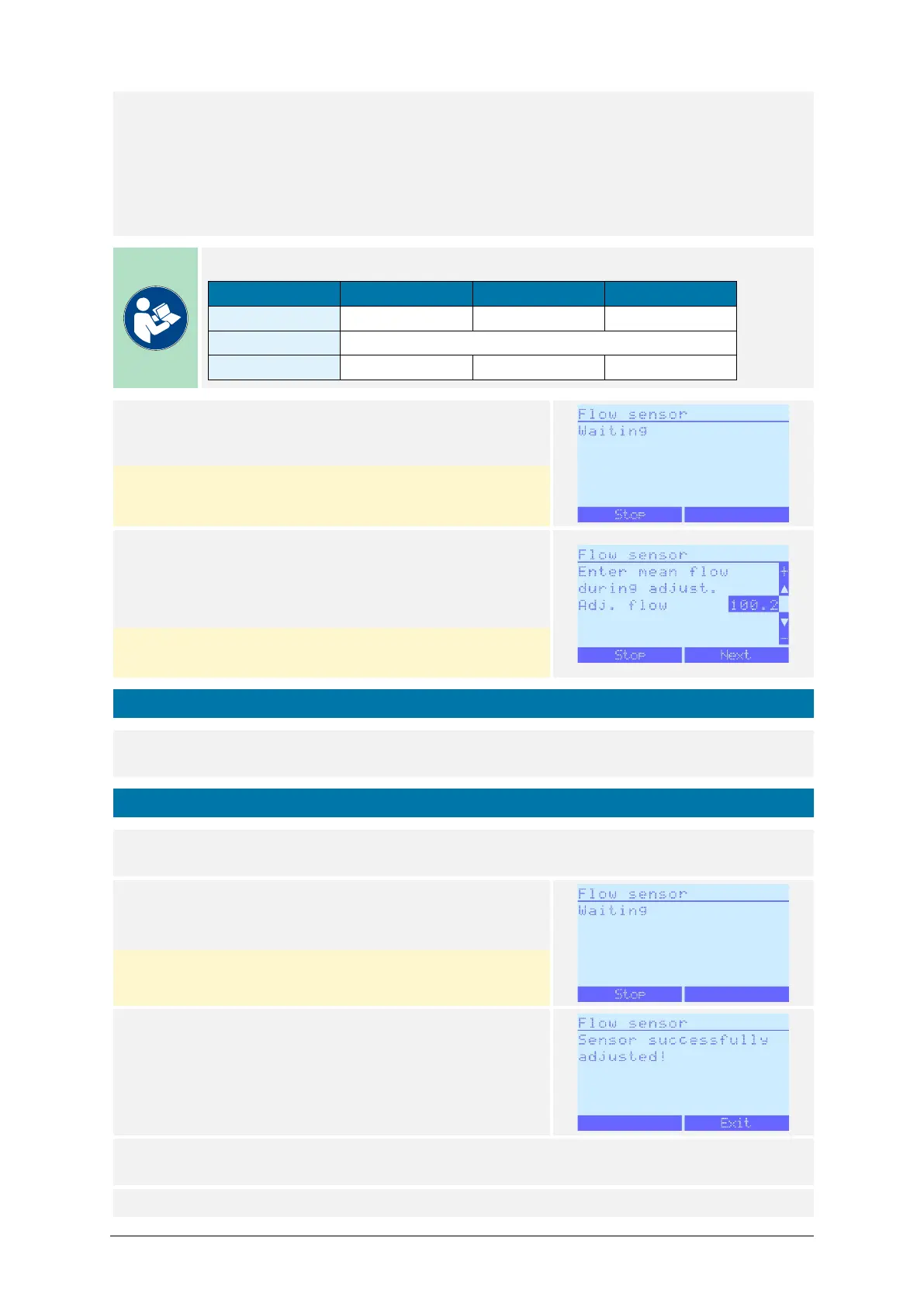

17) Iteration:
- Modify Blower PWM
- Take anemometer reading
- Is the F
m
value firmly inside the range of Adjustment flow ±0.5 SLPM?
o If No: Redo iteration.
o
If Yes: Press the Next button and continue.
Example
Adj. Point
❶ ❷ ❸
Adj. flow 95.0 SLPM 105.0 SLPM 100.0 SLPM
Tolerance ±0.5 SLPM
Adj. flow range 94.5 - 95.5 SLPM 104.5 - 105.5 SLPM 99.5 - 100.5 SLPM
18) The message Waiting will briefly appear.
No action from the user is required, the process will
continue automatically.
Pressing Stop interrupts the process and reverts to
the Method menu.
19) Enter the last calculated mean flow value F
m
by
modifying the displayed value with the / but-
tons.
Press Next to save the value and to proceed.
Pressing Stop interrupts the process and reverts to
the Method menu.
Adjustment point ❷
20) Proceed as with steps 15-19 with the adjustment flow rate corresponding to Adjust-
ment Point ❷.
Adjustment point ❸
21) Proceed as with steps 15-19 with the adjustment flow rate corresponding to Adjust-
ment Point ❸.
22) The message Waiting will briefly appear.
No action from the user is required, the process will
continue automatically.
Pressing Stop interrupts the process and reverts to
the Method menu.
23) The manual 3-point adjustment is finished.
Pressing Exit reverts to the Method menu.
24) If this process must be repeated for different perforated lids, start over on step 9 and
use the other perforated lid.
25) End of process.
