MAGNUM KEYPAD/DISPLAY REVISION 2.2
10

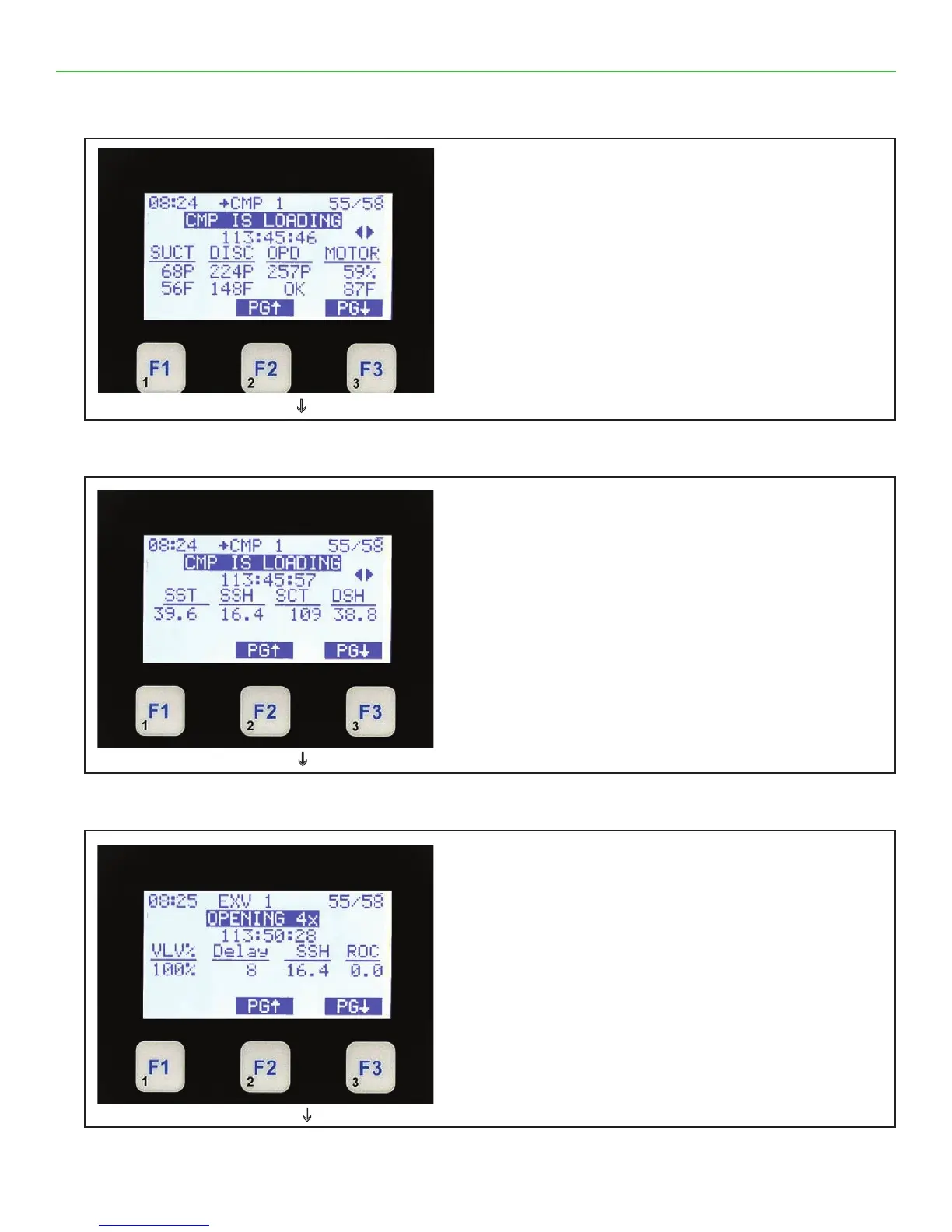

3.3. COMPRESSOR 1 STATUS (PSI & Temp)
3.4. COMPRESSOR 1 STATUS (Superheats)
3.5. COMPRESSOR 1 STATUS (EXV or LLS)
Press F3 PGi
Compressor 1 Superheats
• On the top line right chiller out & chiller in is
displayed rounded to a whole number.
• The second line shows Circuit status.
• The third line shows time in that mode.
• The next line shows the following:
-Sat Suct Tmp -Suct Superheat
-Sat Cond Tmp -Disc Superheat
• The function keys F1 & F2 allow paging up or down.
Press F3 PGi
Compressor 1 EXV or LLS
• On the top line right chiller out & chiller in is
displayed rounded to a whole number.
• The line also shows EXV or LLS status.
• The third line shows time in that mode.
• The display shows information for the EXV or
LLS for circuit 1. If EXV the information is as
follows:
-Valve % open -Delay till next chg
-Curr Suct SH -Slope of SH
Compressor 1 PSI & Temp
• On the top line right chiller out & chiller in is
displayed rounded to a whole number.
• The second line shows Circuit status.
• The third line shows time in that mode.
• The next two lines show the following:
-Suct psi -Suct temp
-Disc psi -Disc temp
-Oil psi differential -Oil temp
-Motor % -Motor temp
Press F3 PGi
To Next Page
