MCS MCS-DOOR-KEYPAD - RELAY OUTPUTS (TTL Cycles); ANALOG OUTPUTS (Status); ANALOG OUTPUTS (Max TDY)

MAGNUM KEYPAD/DISPLAY REVISION 2.2
15

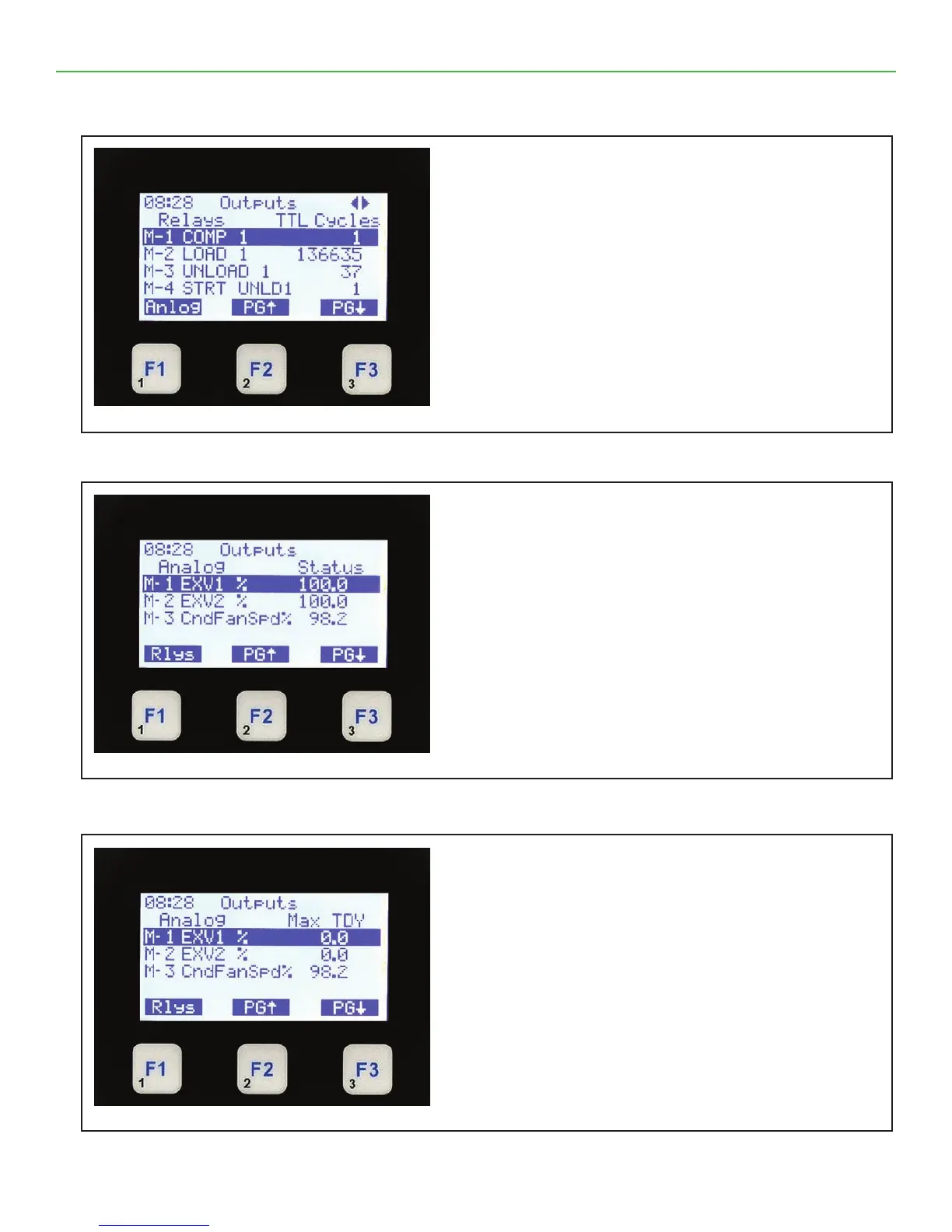

4.9. RELAY OUTPUTS (TTL Cycles)
4.10. ANALOG OUTPUTS (Status)
4.11. ANALOG OUTPUTS (Max TDY)
Relay Outputs TTL Cycles
• On the top line shows Outputs & ◄► which
allows you to move screen left to right.
• The second line shows column headings.
• The third through sixth line shows up to four
relays & total cycles.
• The bottom line shows function keys with current
values.
• Pressing F1 moves you to Analog outputs.
• Pressing F2 or F3 pages the current screen up
or down for additional outputs.
Select F1 for Anlog
Analog Outputs Status
• On the top line shows Outputs.
• The second line shows column headings.
• The third through fth line shows up to four
analog outputs.
• The bottom line shows function keys with current
values.
• Pressing F1 moves you to Relay Outputs.
• Pressing F2 or F3 pages the current screen up
or down for additional outputs.
To scroll right Press ►
Analog Outputs Max TDY
• On the top line shows Outputs.
• The second line shows column headings.
• The third through sixth line shows up to four
relays & max value today.
• The bottom line shows function keys with current
values.
• Pressing F1 moves you to Relay Outputs.
• Pressing F2 or F3 pages the current screen up
or down for additional outputs.
To scroll right Press ►
