5.15. SENSOR INPUTS (Avg YDY)
5.16. SENSOR INPUTS (TTL Cycles)

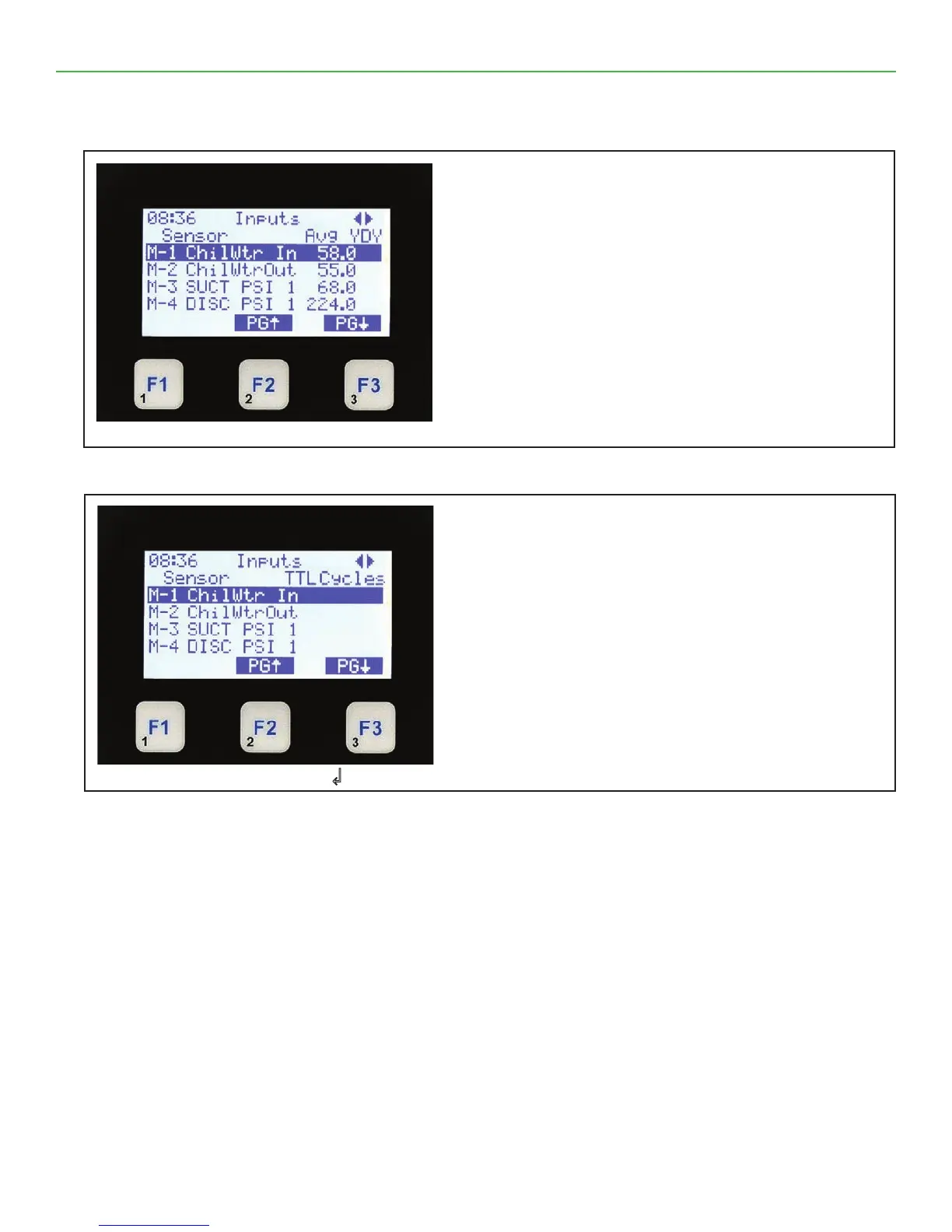

Sensor Inputs Avg YDY
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor inputs & average for yesterday. (If
analog)
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
Sensor Inputs TTL Cycles
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor inputs & total cycles. (If digital)
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
Select Menu & Press ↲
