MAGNUM KEYPAD/DISPLAY REVISION 2.2
27
Chapter - 9. Service Tools
9.1. SERVICE TOOLS (RS485 Setup)
9.2. SERVICE TOOLS (RS485 Setup)

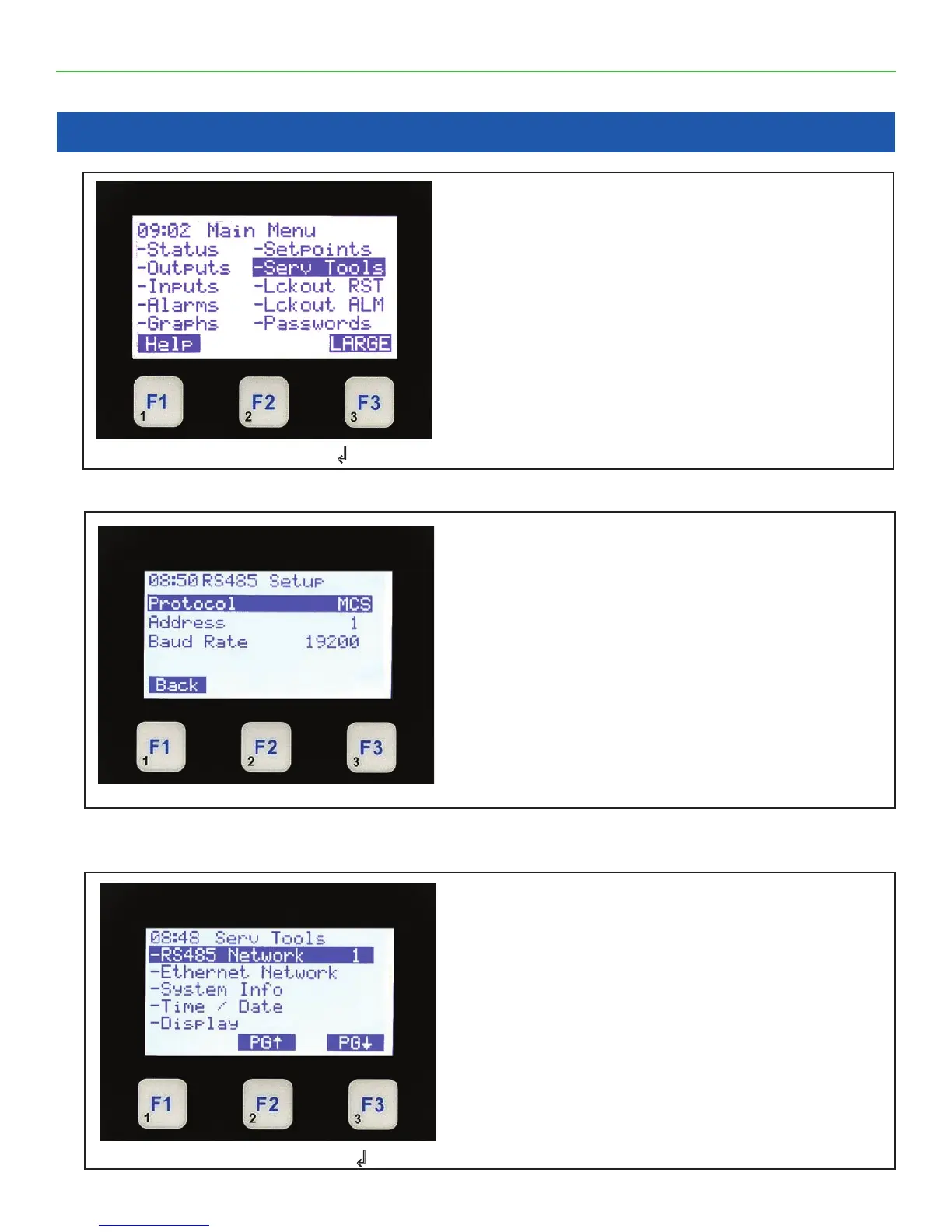

Pressing the Menu Key- Serv Tools
• Results in displaying the 10 available Menu
items. The highlight is on the Serv Tools display.
• To select any item use the ▲ ▼ ◄ ► arrow
keys to position the highlight and press ↲.
• To understand the options select F1 for help.
• To display the current Serv Tools Screens press
the Enter Key.
Select Serv Tools & Press ↲
RS485 Setup
• The top line shows RS485 Setup
• The next 3 lines identify the current protocol,
current address & the current baud rate.
• The bottom line shows function keys with current
values.
• Pressing F1 takes you back to the previous
screen.
Press F1 (Back)
RS485 Network
• The top line shows Service Tools.
• The next 5 lines identify the rst ve options
available under Service Tools.
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down the current selection.
Select RS485 Network & Press ↲
To Next Page
