5.9. SENSOR INPUTS (Cycles TDY)
5.10. SENSOR INPUTS (RUN YDY)
5.11. SENSOR INPUTS (Max YDY)

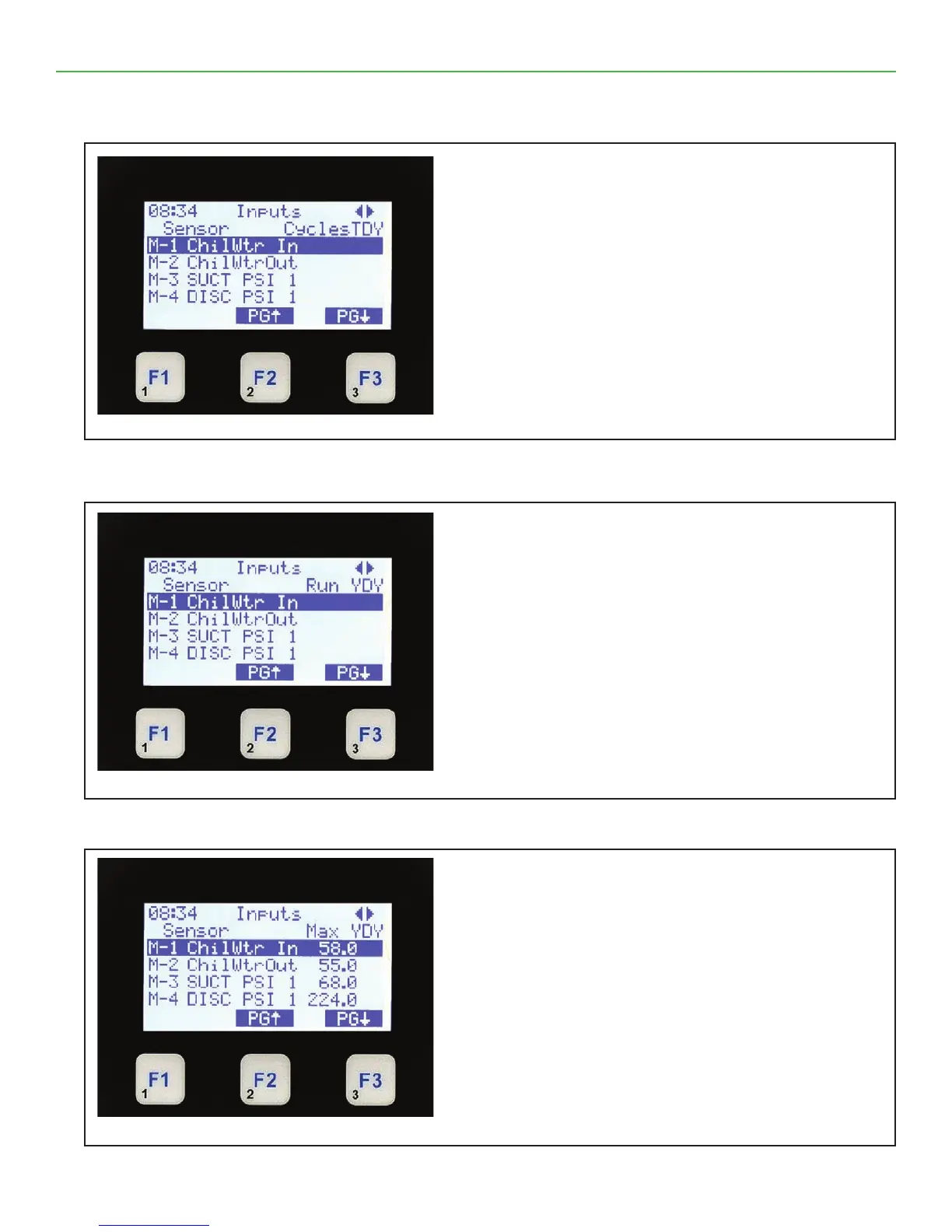

Sensor Inputs Cycles TDY
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor inputs & cycles today. (If digital).
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
To scroll right Press ►
Sensor Inputs Run YDY
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor inputs & run yesterday. (If digital).
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
To scroll right Press ►
Sensor Inputs Max YDY
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor inputs & maximum yesterday. (If analog).
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
To scroll right Press ►
