MCS MCS-DOOR-KEYPAD - ANALOG OUTPUTS (MinYDY); ANALOG OUTPUTS (AVG YDY)

MAGNUM KEYPAD/DISPLAY REVISION 2.2
17
4.15. ANALOG OUTPUTS (MinYDY)
4.16. ANALOG OUTPUTS (AVG YDY)

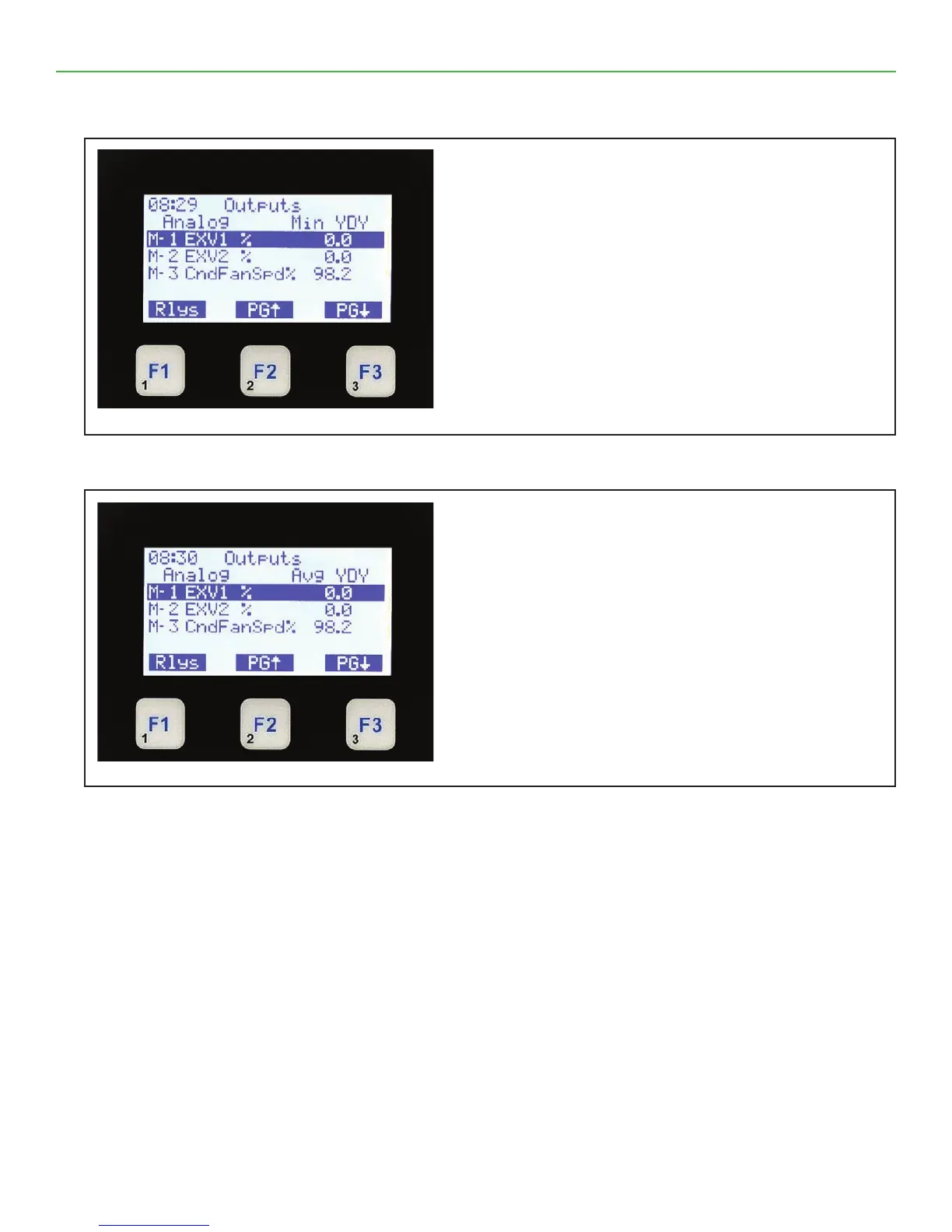

Analog Outputs Min YDY
• On the top line shows Outputs.
• The second line shows column headings.
• The third through sixth line shows up to four
relays & minimum value yesterday.
• The bottom line shows function keys with current
values.
• Pressing F1 moves you to Relay Outputs.
• Pressing F2 or F3 pages the current screen up
or down for additional outputs.
To scroll right Press ►
Analog Outputs Avg YDY
• On the top line shows Outputs.
• The second line shows column headings.
• The third through sixth line shows up to four
analog outputs & average yesterday.
• The bottom line shows function keys with current
values.
• Pressing F1 moves you to Relay Outputs.
• Pressing F2 or F3 pages the current screen up
or down for additional outputs.
Select Menu & position to Inputs
