5.6. SENSOR INPUTS (Min TDY)
5.7. SENSOR INPUTS (Run TDY)
5.8. SENSOR INPUTS (Avg TDY)

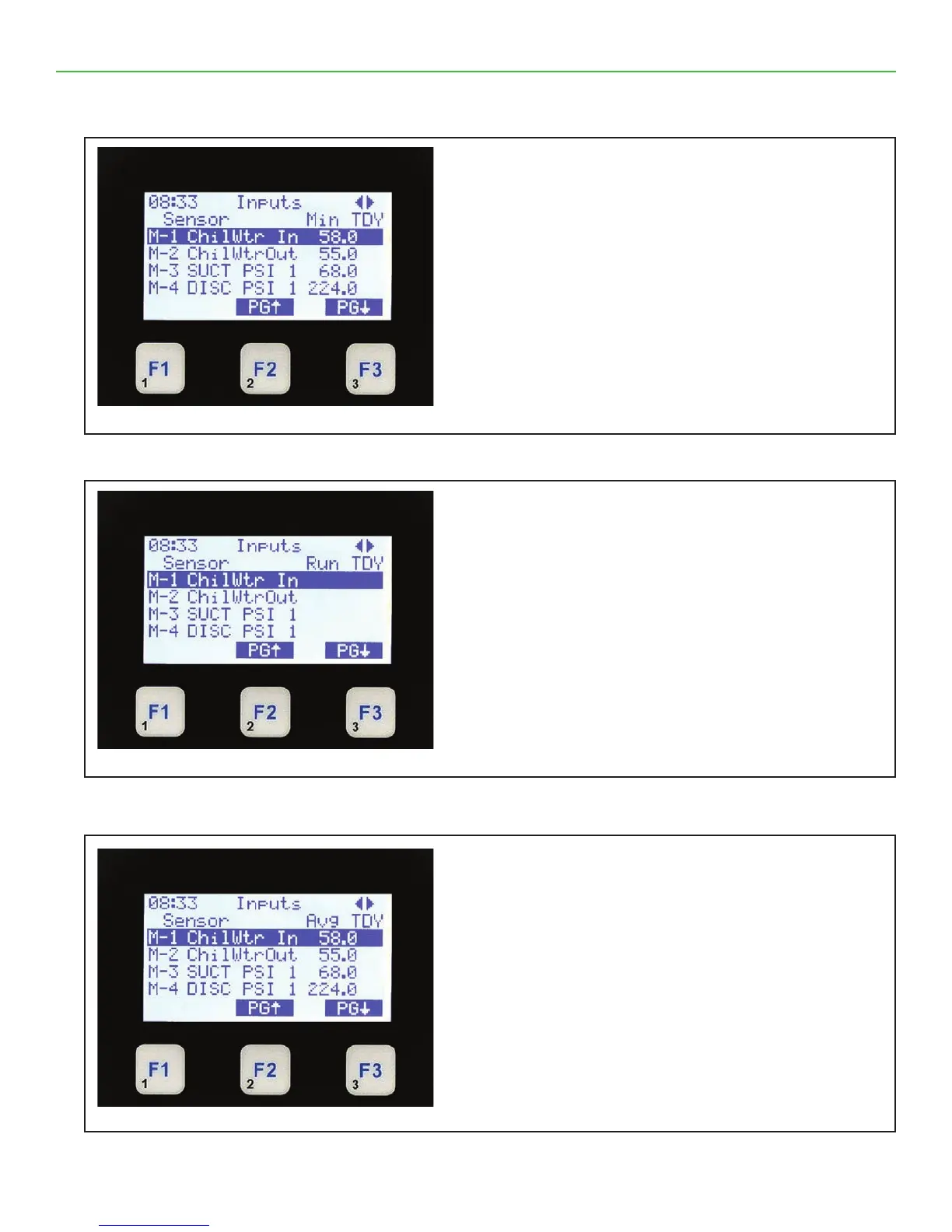

Sensor Inputs Min TDY
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor outputs & Minimum today. (If analog)
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
To scroll right Press ►
Sensor Inputs Run TDY
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor inputs & run hours today. (If Digital)
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
To scroll right Press ►
Sensor Inputs Avg TDY
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor inputs & average today. (If analog).
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
To scroll right Press ►
