MCS MCS-DOOR-KEYPAD - Status Screens; UNIT STATUS (WTD;ACT); UNIT STATUS (KW;TON)

MAGNUM KEYPAD/DISPLAY REVISION 2.2
9
3.1. UNIT STATUS (WTD/ACT)
3.2. UNIT STATUS (KW/TON)

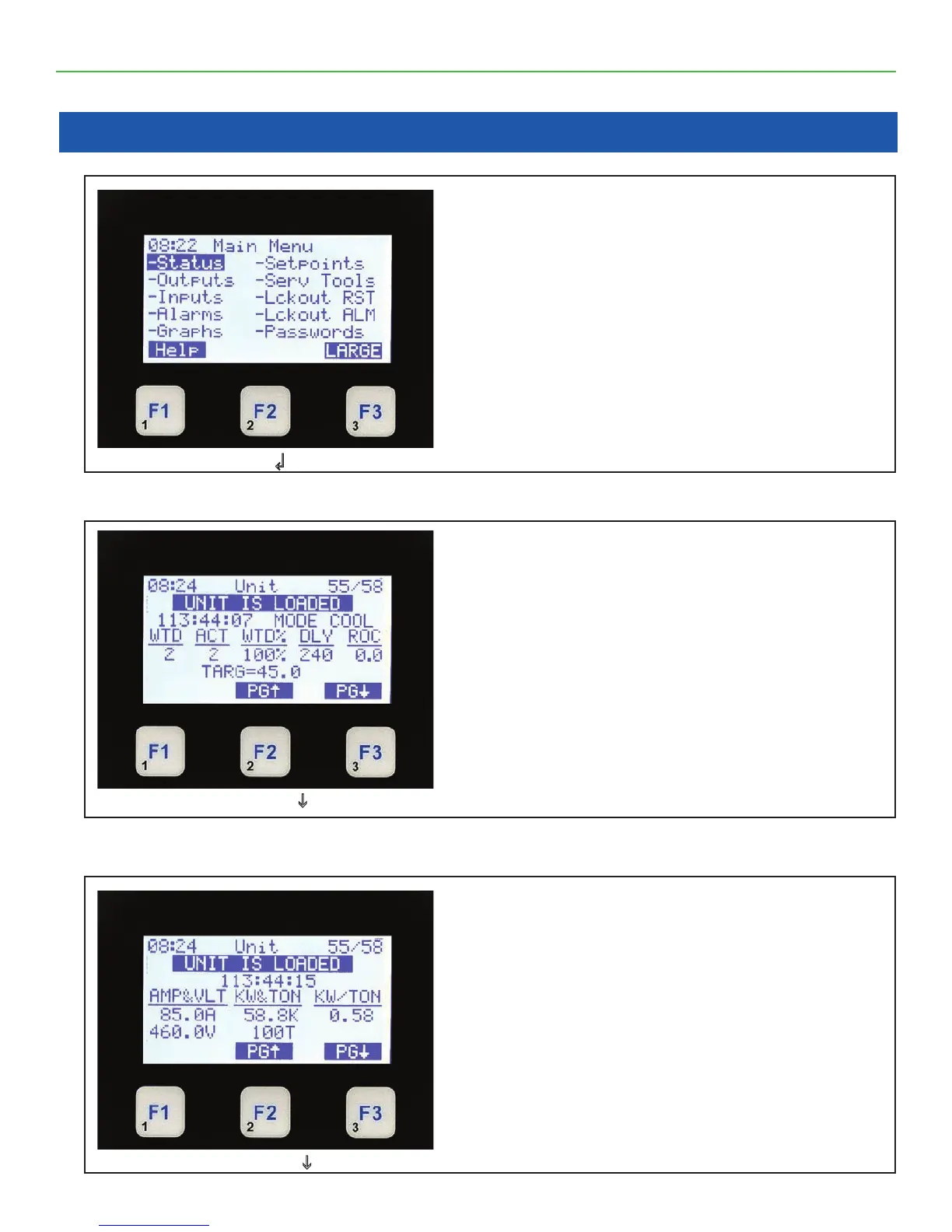

Chapter - 3. Status Screens
Pressing the Menu Key- Status
• Results in displaying the 10 available Menu
items. The highlight is on the Status display.
• To select any item use the ▲ ▼ ◄ ► arrow
keys to position the highlight and press ↲.
• To understand the options select F1 for help.
• To display the current Status Screens press the
Enter Key.
Press ↲
Unit Status WTD/ACT
• On the top line right chiller out & chiller in is
displayed rounded to a whole number.
• The second line shows system status.
• The third line shows mode & time in that mode.
• The next two lines show the following:
-Steps wanted on -Steps actually
on -Wanted capacity % -Integration
delay -Rate of change.
• The next line shows the current target.
Press F3 PGi
Unit Status KW/TON
• On the top line right chiller out & chiller in is
displayed rounded to a whole number.
• The second line shows Unit status.
• The third line shows time in that mode.
• The next two lines show the following:
-Current amps -Current voltage
-Current KW -Current tons
-Current KW/Ton
• This information is only available if the sensors
are provided.
Press F3 PGi
