5.12. SENSOR INPUTS (Cycles YDY)
5.13. SENSOR INPUTS (Min YDY)
5.14. SENSOR INPUTS (TTL Run HR)

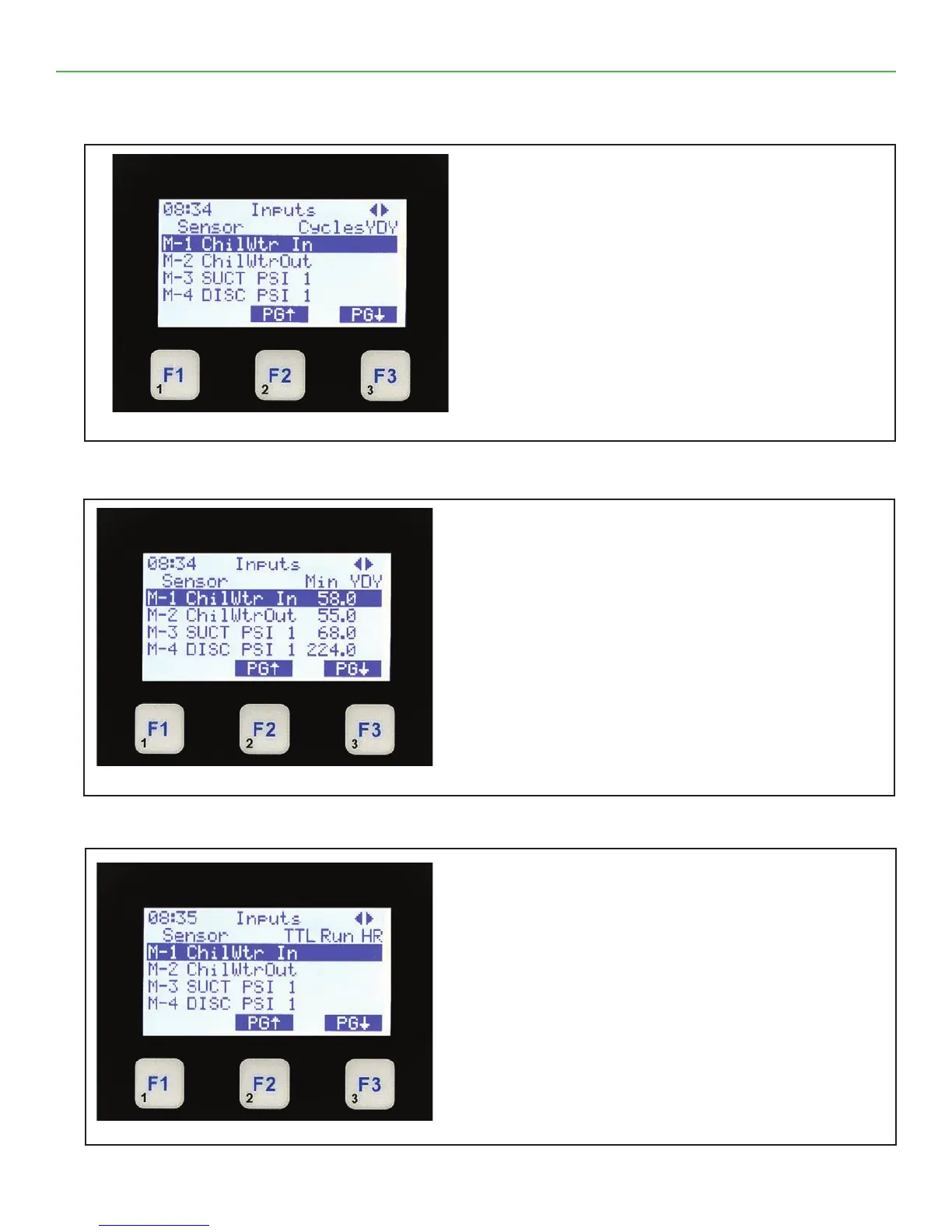

Sensor Inputs Cycles YDY
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four sensor
inputs & cycles yesterday. (If analog)
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up or
down for additional inputs.
To scroll right Press ►
Sensor Inputs Min YDY
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor inputs & minimum yesterday. (If analog)
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
To scroll right Press ►
Sensor Inputs TTL Run HR
• On the top line shows Inputs.
• The second line shows column headings.
• The third through sixth line shows up to four
sensor inputs & total run hours. (If digital)
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down for additional inputs.
To scroll right Press ►
