MCS MCS-DOOR-KEYPAD - SERVICE TOOLS (MCS Port); SERVICE TOOLS (System Info); SERVICE TOOLS (Firmware & Cfg)

MAGNUM KEYPAD/DISPLAY REVISION 2.2
29

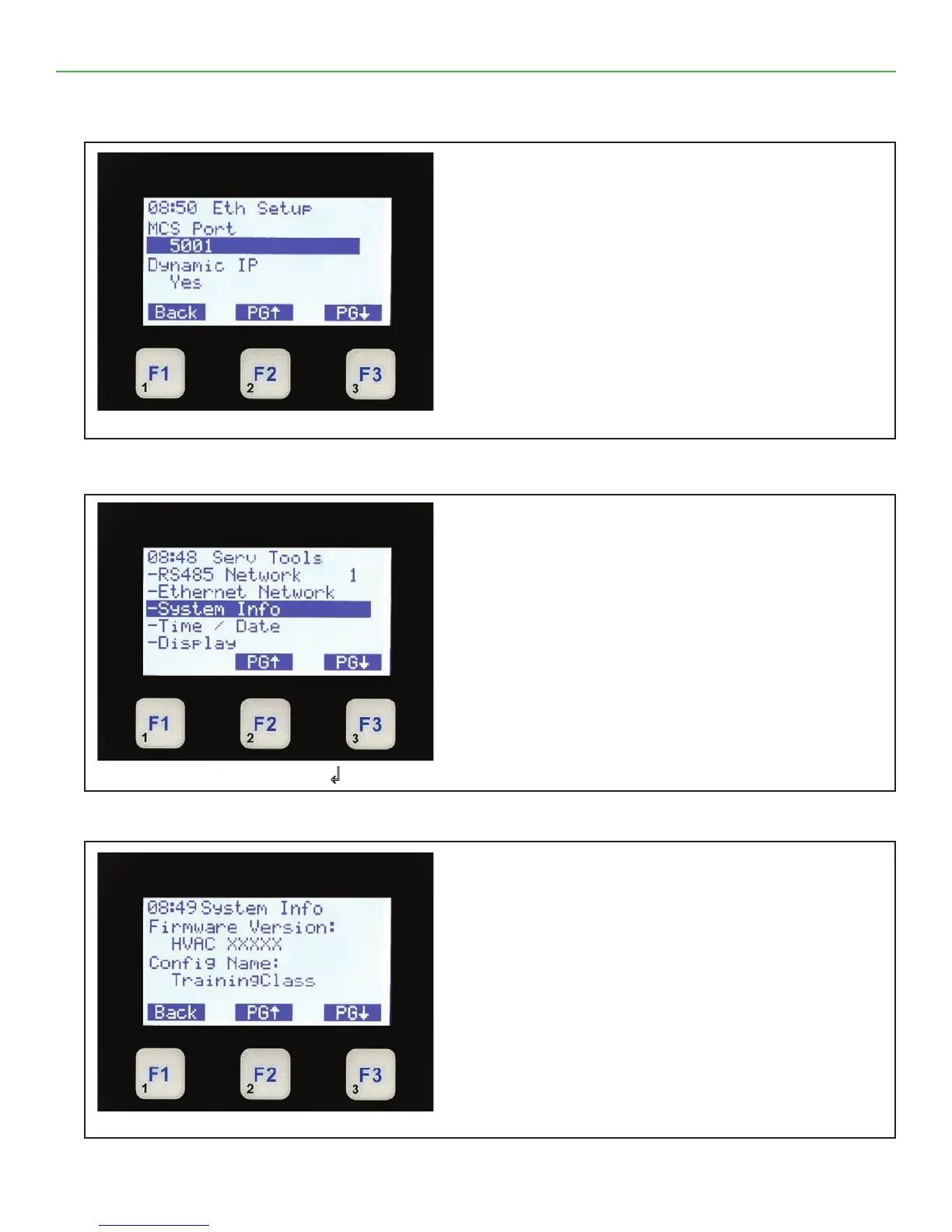

9.6. SERVICE TOOLS (MCS Port)
9.7. SERVICE TOOLS (System Info)
9.8. SERVICE TOOLS (Firmware & Cfg)
Ethernet Setup MCS Port
• The top line shows Eth Setup.
• The next 4 lines identify the rst MCS Port
address & then back to the beginning.
• The bottom line shows function keys with current
values.
• Pressing F1 takes you back to service tools.
• Pressing F2 or F3 pages the current screen up
or down the current selection.
Select F1 Back
Service Tools System Info
• The top line shows Service Tools.
• The next 5 lines identify ve options available
under Service Tools.
• The bottom line shows function keys with current
values.
• Pressing F2 or F3 pages the current screen up
or down the current selection.
Select System & Press ↲
System Info Firmware & Cfg
• The top line shows System Info.
• The next 4 lines identify the Firmware Version &
the Cong name.
• The bottom line shows function keys with
current values.
• Pressing F1, Back function, moves you back to
System Info.
• Pressing F2 or F3 pages the current screen up
or down the current selection.
Press F3 PG ä
