SECTION 6
DISASSEMBLY AND ASSEMBLY
129

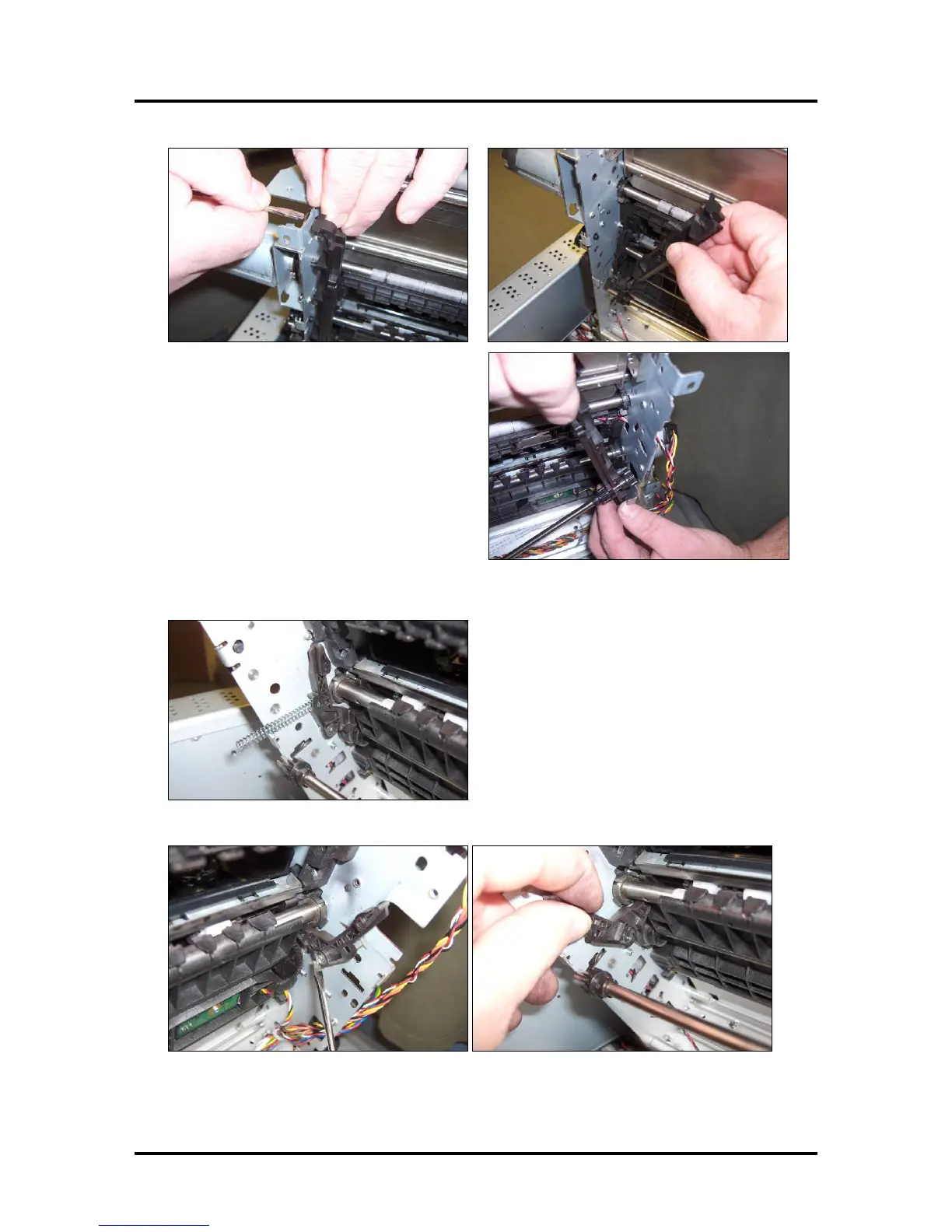

10. Remove the Service Station Side Rail Tracks.
NOTE: The Service Station Drive Shaft will be
removed with the Service Station Side Rail
on the Non-Operators side.
11. Remove the Lifting Arm Spring(s)
12. Remove c-clip that secures each of the Lifting Arm(s). Then remove the Lifting Arm(s)
To Next Page
