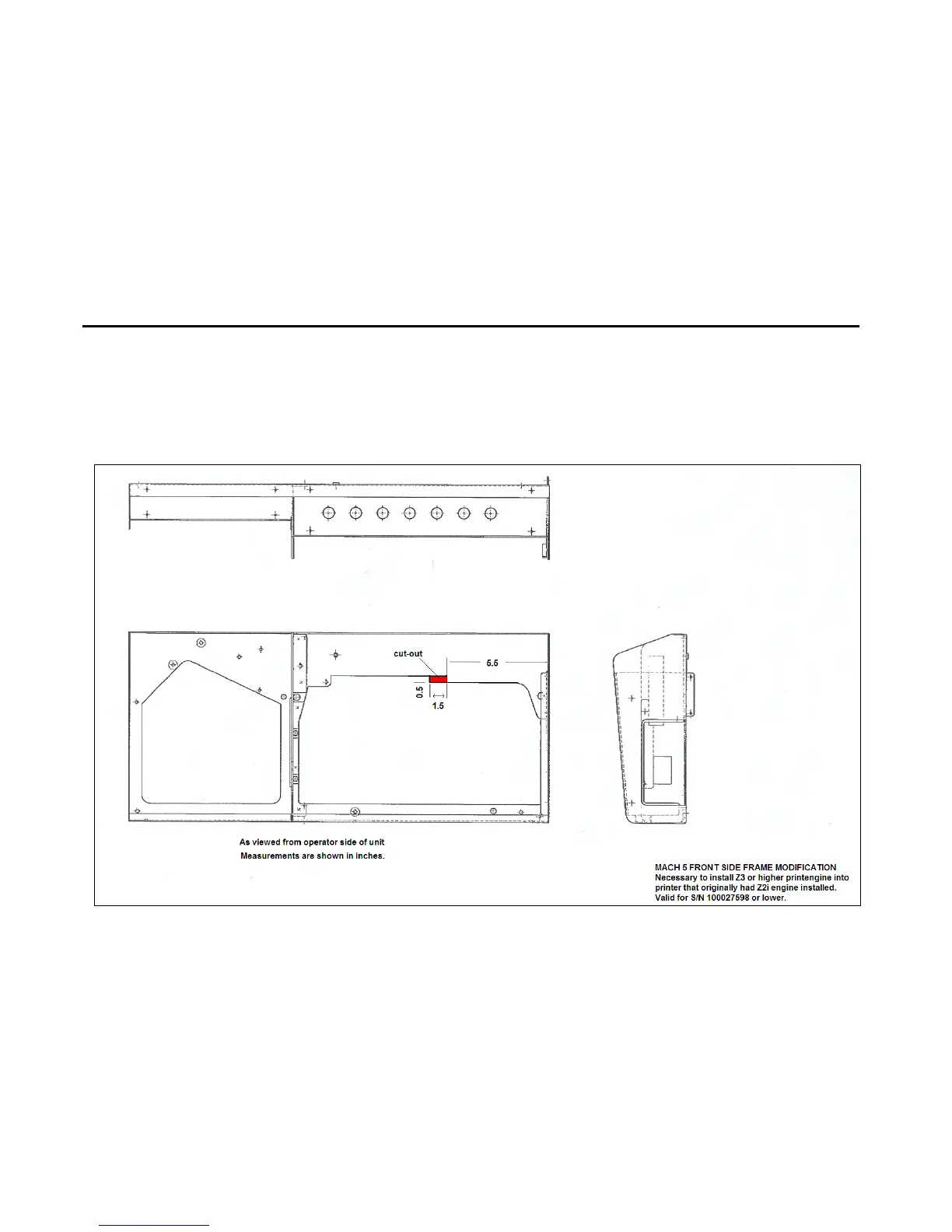

Appendix I –Side Frame Modification
To Accommodate the Z3/Z4/MR Print Engine in a printer that was built for the Z2i Print Engine. Valid for Printer S/N 100027598 or lower.
IMPORTANT: After installing a Z3/Z4/MR Print Engine into a printer that originally had a Z2i engine installed; please be sure to replace the too small (short)
rubber feet with two large (tall) rubber feet (35-117-04 foot and screw), so that all the feet are the same size. Z3, Z4 and MR Print Engines do NOT require this
built-in angle, which was previously created by the difference in the feet height at the entrance and exit end of the printer body. If the body of a printer, with a
Z3/Z4/MR print engine installed, is left to sit at an angle this may cause the visible Ink Tank Level Sensors to see an early “out” condition.
