Memjet MACH 5 - Right-Hand (Non-Operator) Side Cover

SECTION 5
DISASSEMBLY AND ASSEMBLY
54

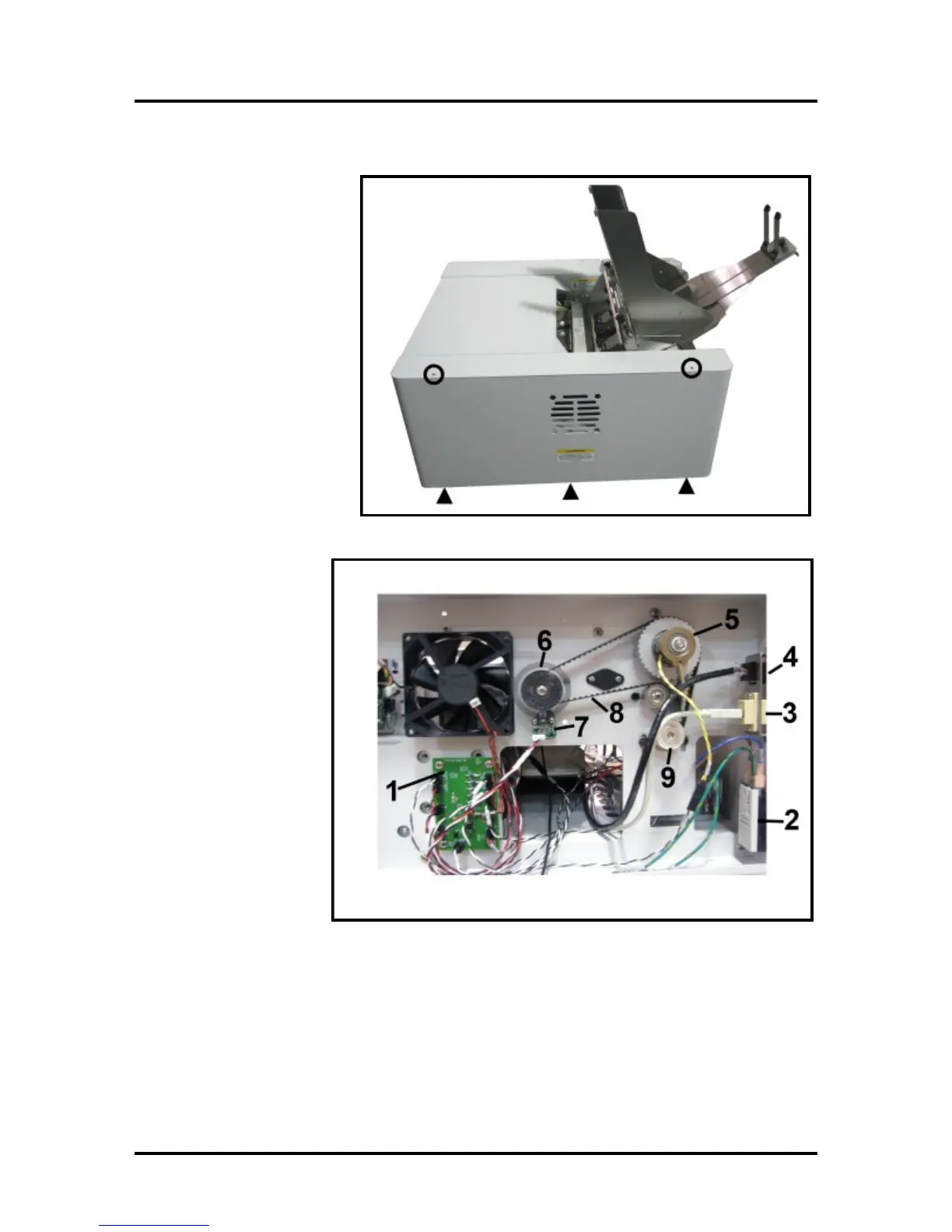

Right-hand (Non-Operator) Side Cover
1. Remove the (2) screws at
the top of the Cover. Then
remove the (3) screws from
the bottom of the Cover.
Major Components under Right-Hand (Non-Operator) Side Cover
1. Interface PC Board
2. Main Power Plug,
Switch, Fuse
3. USB Connector
4. Network Connector
5. Feed Clutch and Feed
Roller Assembly
6. Encoder
7. Encoder Sensor
8. Drive Belt
9. Drive Motor & Roller
Drive Pulley
