BLK = Black
BRN = Brown
GRY = Gray
GRN = Green
RED = Red
WHT = White
YEL = Yellow
a
d
e
c
b

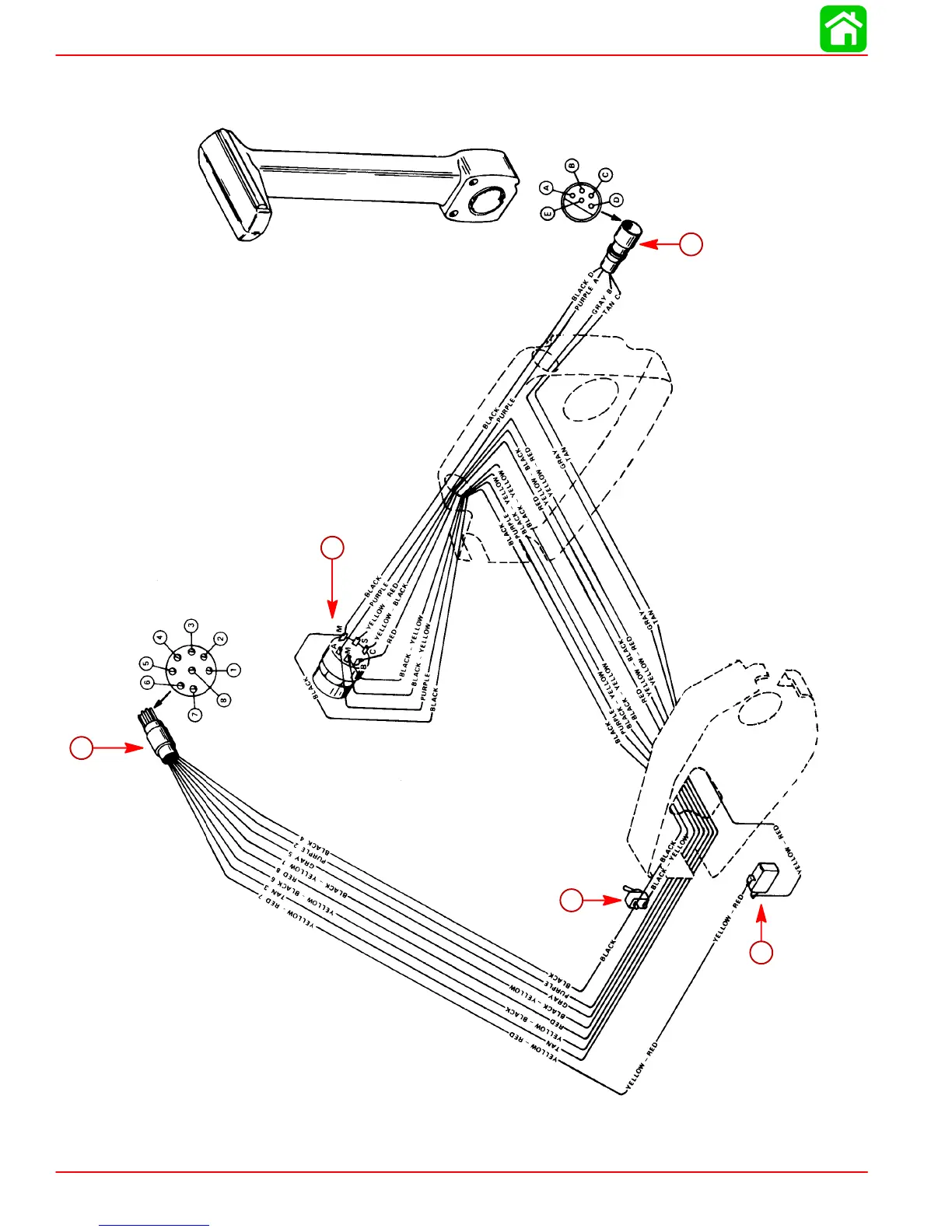

WIRING DIAGRAMS
Page 2D-4 90-828631R3 MARCH 1999
Commander Remote Control (Electric Start)
a-Ignition Choke Switch
b-Emergency Stop Switch
c-Neutral Start Switch
d-Tachometer/Accessories Harness Connector
e-Wiring Harness Connector
